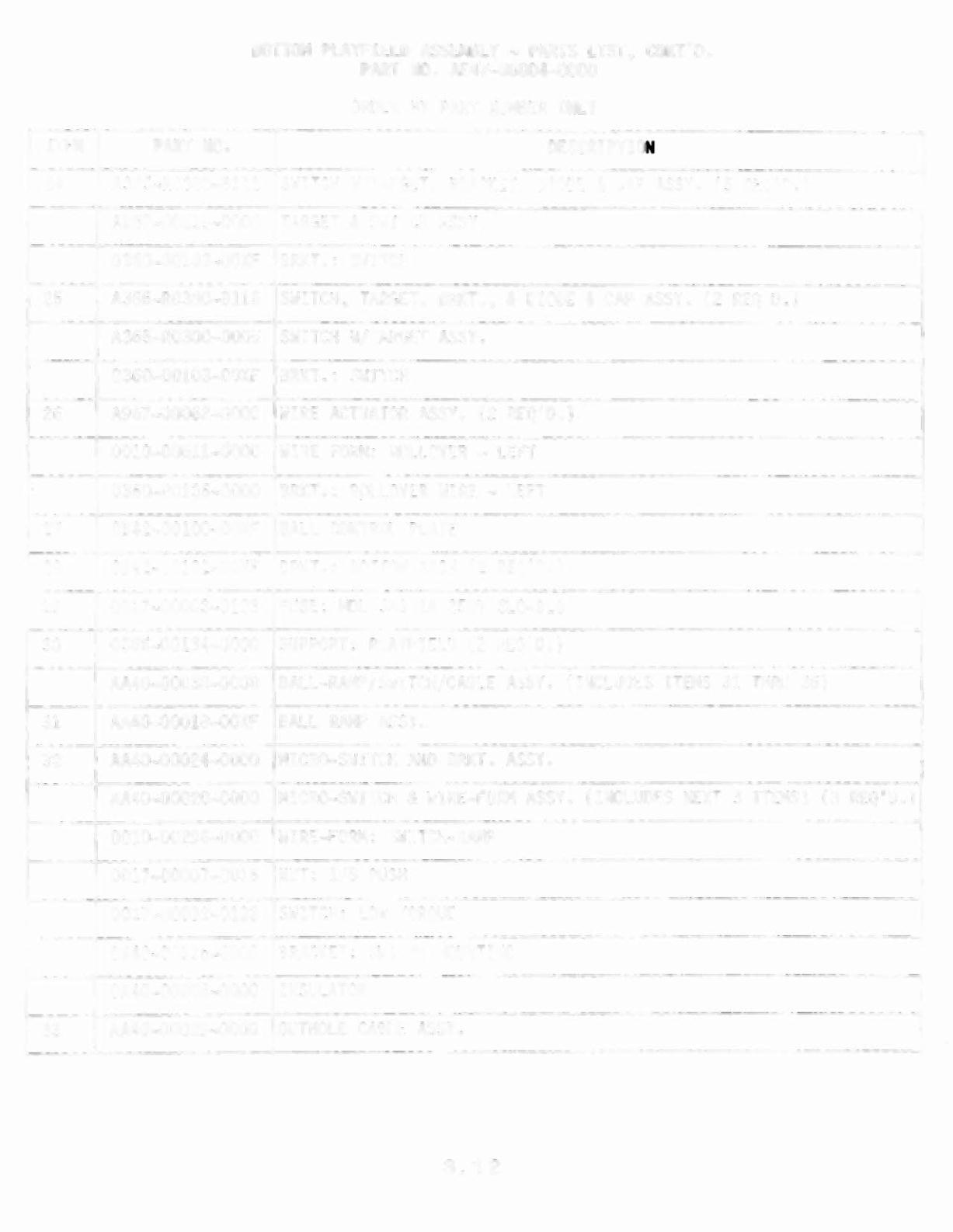

BOTTOM PLAYFIELO ASSEMBLY - PARTS LIST, CONT'D.
PART NO. AE47-00004-0000
ORDER BY PART NUMBER ONLY
ITEM PART NO. DESCRIPTION
24 A365-R0300-B111 SWITCH W/TARGET, BRACKET, DIODE & CAP ASSY. (5 REQ' D. )
A967-00019-0000 TARGET & SWITCH ASSY. ._
0360-00103-00XF BRKT.: SWITCH
25 A365-R0300-BU5 SWITCH, TARGET, BRKT •• & DIODE & CAP ASSY. (2 REQ'D.)
A365-R0300-0005 SWITCH W/TARGET ASSY.
0360-00103-00XF BRKT.: SWITCH
26 A967-00062-0000 WIRE ACTUATOR ASSY. (2 REQ' D. )
OOlO-OO611-COOO WIRE FORM: ROLLOVER - LEFT
0360-00135-0000 BRKT.: ROLLOVER WIRE - LEFT
27 OB42-00100-00XF BALL CONTROL PLATE
28 OB4.2-00102-00XF BRKT.: BOTTOM ARCH (2 REQ'D.)
29 0017-00003-0103 FUSE: MDL 3AG 1A 250V SLO-BLO --
3D 0365-00134-0000 SUPPORT: PLAYFIELD (2 REQ'D.)
AA40-00038-0000 BALL-RN~P/SWITCH/CABLE ASSY. (INCLUDES ITEMS 31 THRU 36)
31 AA40-00018-00XF BALL RAMP ASSY.
32 AA4D-00024-0000 MICRO-SWITCH AND BRKT. ASSY.
AA40-00020-0000 MICRO-SWITCH & WIRE-FORM ASSY. (INCLUDES NEXT 3 ITEMS) (3 REQ'D.)
0010-00295-0000 WIRE-FORM: SWITCH-RA~1P
0017-00007-0015 NUT: 1/8 PUSH
0017-00032-0123 SWITCH: LOW TORQUE
OA40-0011S-0000 BRACKET: SWITCH MOUNTING
OA40-00906-0000 INSULATOR
33 AA40-00029-0000 OUTHOLE CABLE ASSY.
3.12
