Genie Double Target Assembly

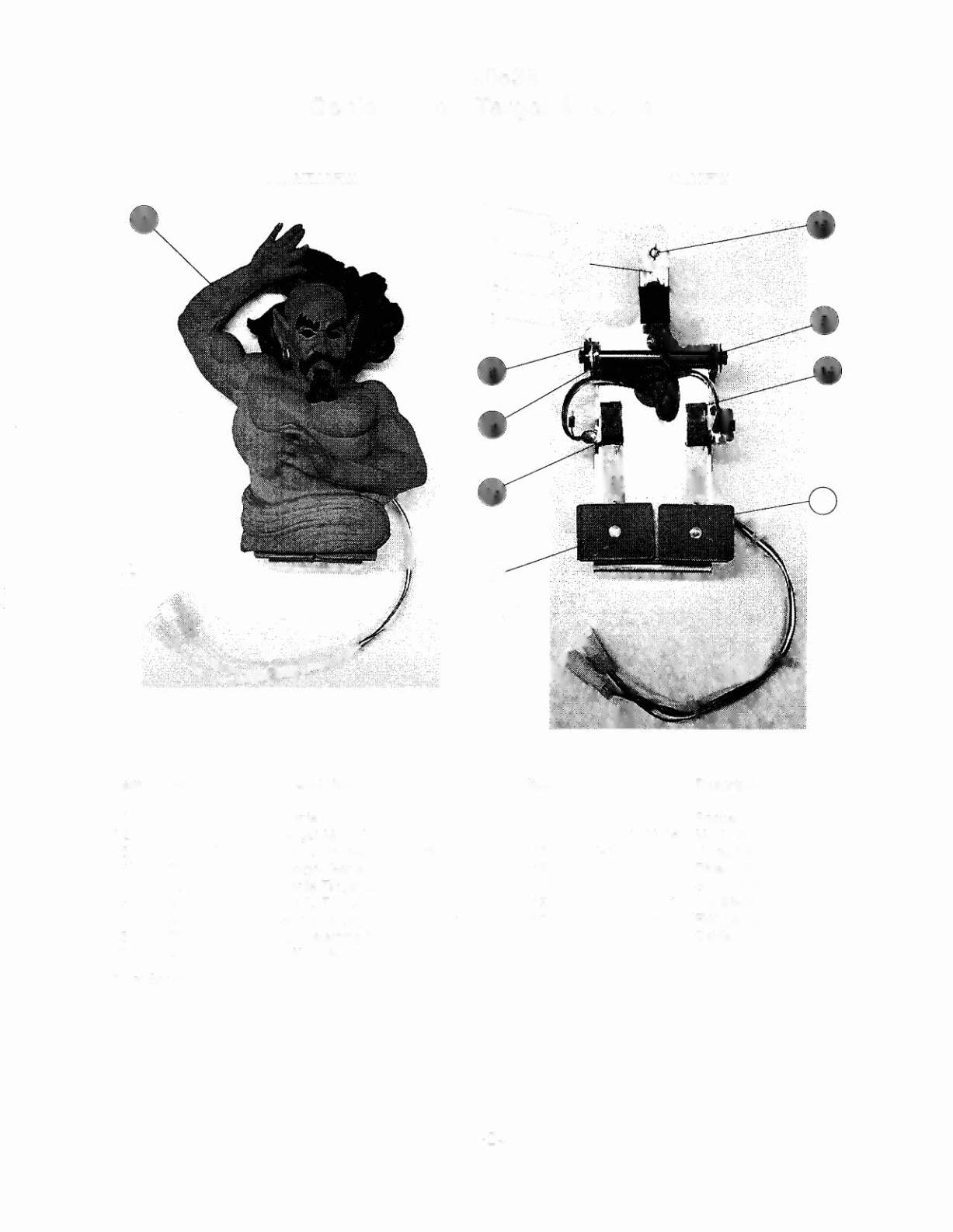

FRONT VIEW
REAR VIEW
Item Part Number
Description
Item Part Number
Description
31-2527
Genie
10
A-17802
Socket & Bulb Assembly
*2
01-14260
Target Mounting Bracket
11
4008-01003-06 Mach. Screw, #8-32 x 3/8"
3
04-10310
Genie Double Target Bracket
12
07 -6688-23N Rivet, 1/8 x 3/8"
4
01-14261
Weight Genie Plate
13
07-6688-27
Rivet, 1/8 x 9/16"
5
02-5255
Genie Target Shaft
14
01-3670
Switch Plate Curved
6
SW-1A-207
Genie Target Assembly, Left
15
4408-01119-01 Nut #8-32 ESN
7
SW-1A-208
Genie Target Assembly, Right
16
4700-00023-00 FW, 13/64 x 5/8 x 16ga.
8
20-8712-25
"E" Retaining Ring
17
A-20862
Cable
9
4700-00072-00 FW, 17/64 x 1/2 x 21ga.
* Not Shown.
