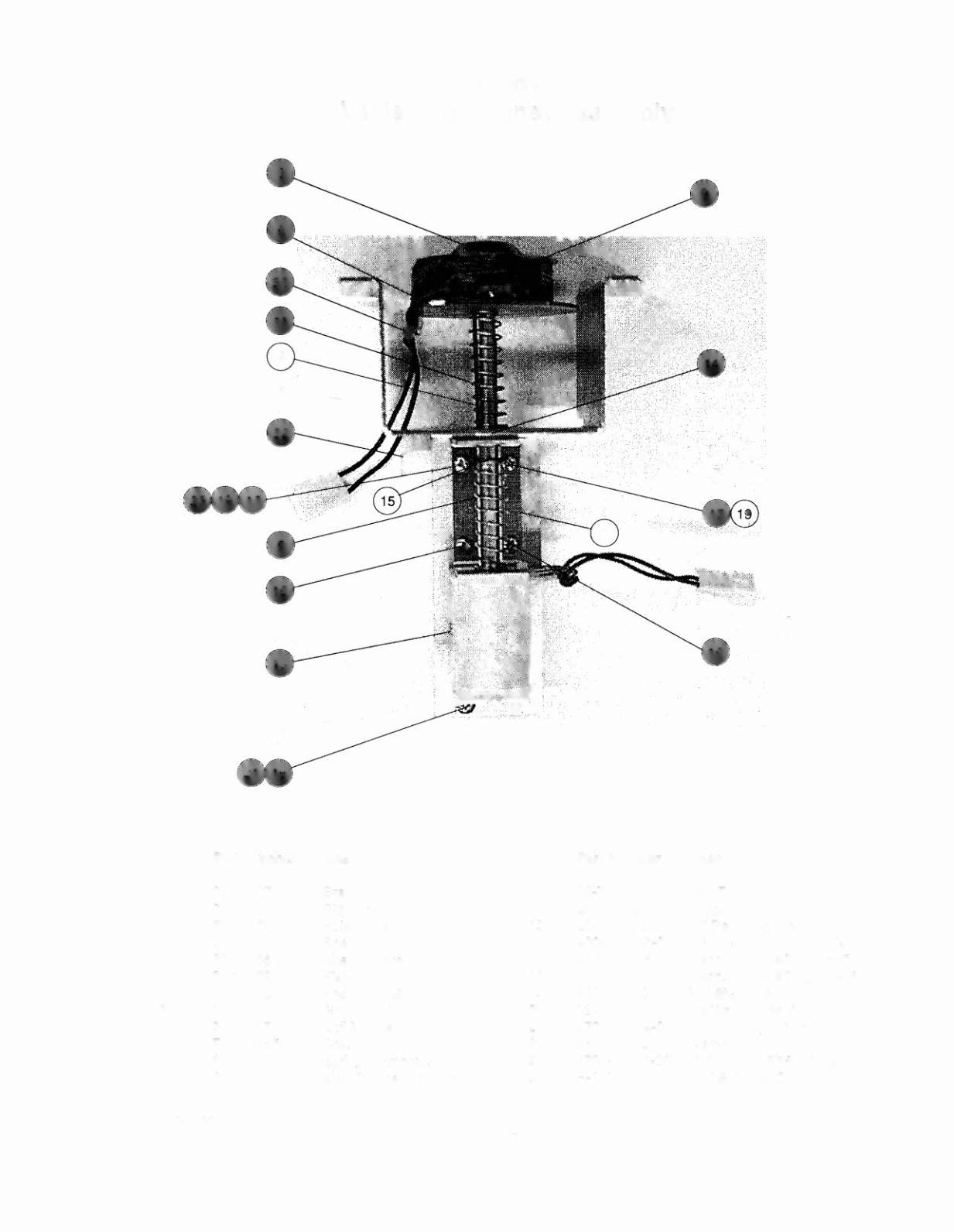

Vanishing Magnet Assembly
Item Part Number
Description
Item Part Number
Description
1
04-10307
Bracket
13 03-7066-5
Coil Tubing
2
02-5231
Plunger
14 20-8790-2
Nyliner
3
04-10373
Pole Piece
15 20-8712-43
"E" Retaining Ring
4
02-5234
Shaft
16 4008-01 003-04 Mach. Screw, #8-32 x 1/4"
5
01-14166
Shaft Bracket
17 4008-01003-10 Mach. Screw, #8-32 x 5/8"
6
01-14179
Plate
18 401 0-01 008-06 Mach. Screw, #10-32 x 3/8"
7
01-14182
Post Bracket
19 4408-01119-01 Nut #8-32 ESN
*8
02-5251
Guide Post
20 03-9454
Tie Wrap Nylon 4"
9
20-10197
Coil Magnet
21
4701-00004-00 Lockwasher #10 Split
10
FL-11753/50V Coil, Yellow
22 03-7655-12
Clamp 3/4"
11
10-406
Spring, Compression
23
4700-00011-00 FW, 11/64 x 7/16 x 16ga.
12
A-10821
Stop Bracket Assembly
24
H-19523-1
Mini Solenoid Cable
*
Not Shown.
