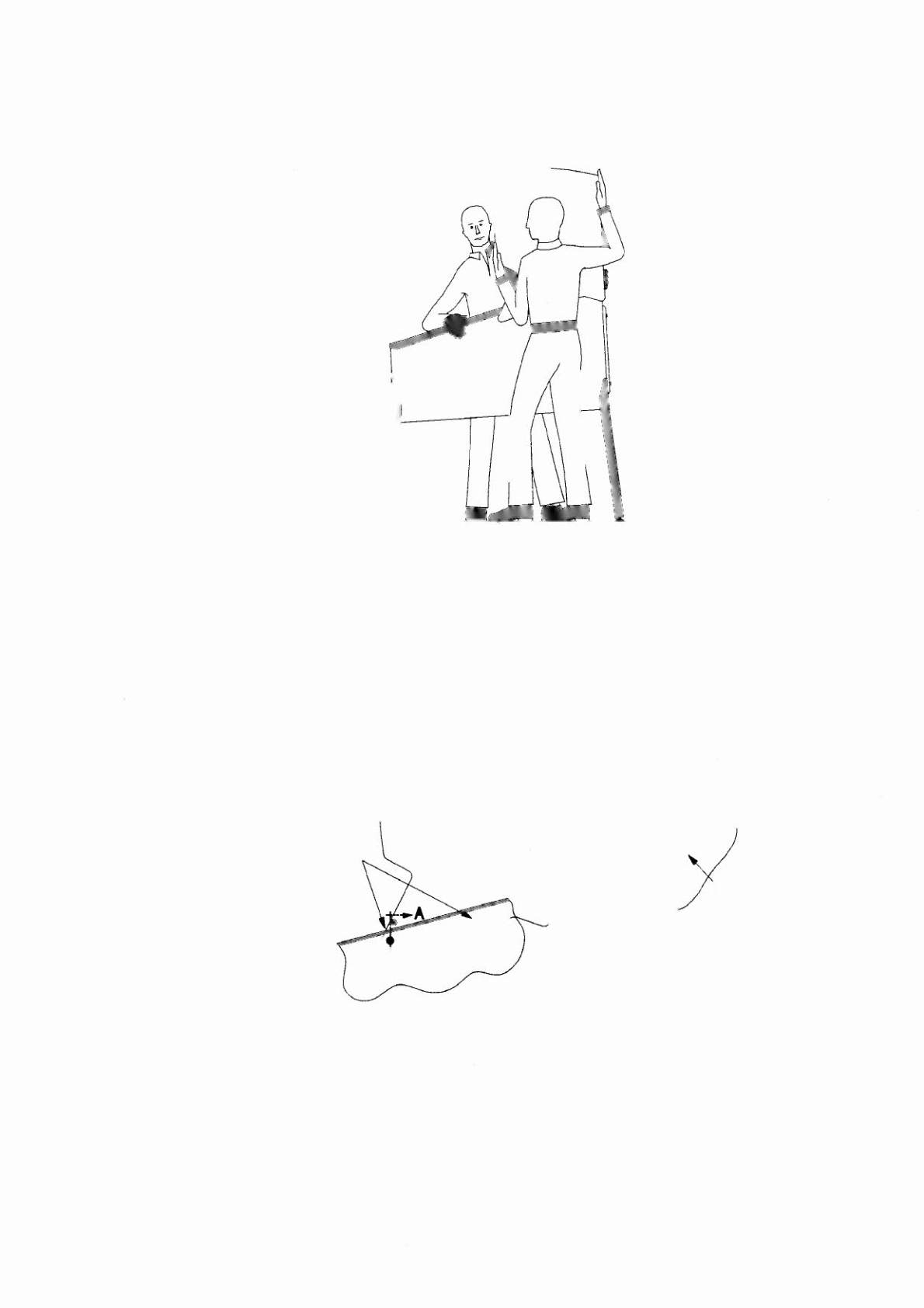

8. WITH THE HELP OF ANOTHER PERSON, carefully lift the backbox and set it on the cabinet.
See Figure
9.
FIGURE 9
9. Line up the four mounting holes in the cabinet with the mounting holes in the backbox. In each of the
four mounting holes, insert one bushing from the inside of the cabinet and one washer and bolt from
the outside of the backbox. Use the
7/32"
hex key in the bolt and the
1/4"
hex key in the bushing and
securely fasten the backbox to the cabinet. See Figure 10 below.
Secure Backbox to Cabinet
Using Mounting Bolts,
Washers and Bushings.
Backbox-
Bolt
\
I
Washer
-Cabinet
Bushing
Section A - A
AGURE10
&
CAUTION
FAILURE TO INSTALL the backbox mounting hardware properly can cause personal injury.
1-5
