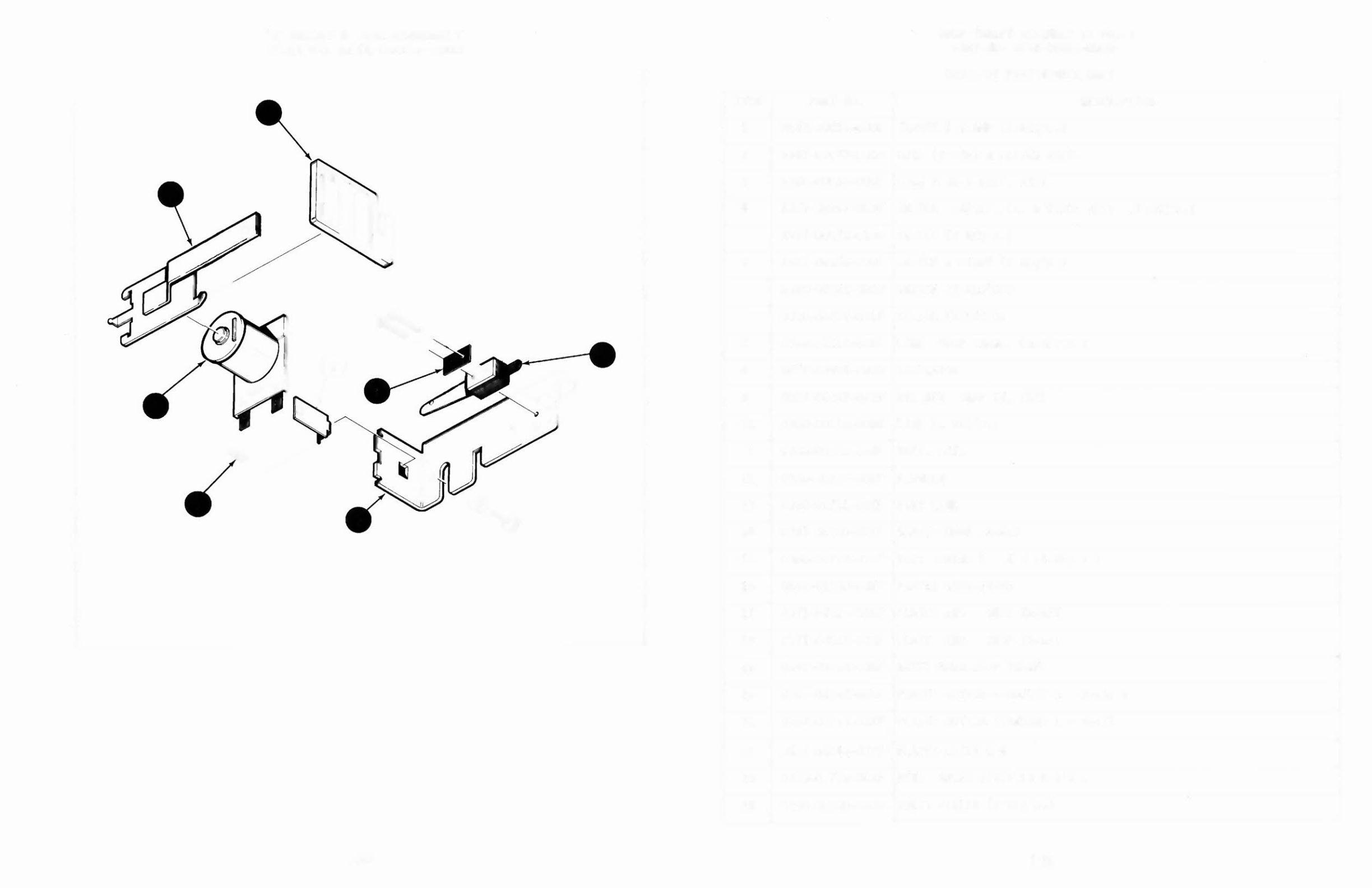

-G· RELAY & COIL ASSEMBLY
PART NO. AE 14-00030-0000
1.45
DROP TARGET ASSEMBLY (3 POS.)PART NO. AE52-00013-0000
ORDER BY PART NUMBER ONLY
ITEM PART NO. DESCRIPTION
1 AE52-00014-0000 TARGET & STAMP (3 REQ'D.)
2 A967-00077-0000 COIL (2 lUG) & TUBING ASSY.
3 A360-00014-0000 CORE PLUG & BRKT. ASSY.
4 A365-00097-0000 SWITCH, TARGET, CAP & DIODE ASSY. (3 REQ'D.)
A967-00076-0100 SWITCH (3 REQ'D.)
5 A967-00066-0000 SWITCH & DIODE (3 REQ'D.)
A360-00062-0000 SWITCH (3 REQ'D.)
6 0010-00279-0314 SPRING EXTENSION
7 0360-00117-00XF lINK: DROP TARGET (3 REQ'D.)
8 OE52-00904-0000 INSULATOR
9 0017-00042-0429 NYLINER: SNAP IN, COIL
10 0360-00118-0000 LI NK (2 REQ' D. )
11 0360-00122-00XF BRKT: COIL
12 0360-00717-00XF PLUNGER
13 0360-00721-00XF PIN: LINK
14 0391-00700-00XF SHAFT: DROP TARGET
15 0360-00723-01XF ROD: SPRING L = 4.5 (2 REQ'D.)
16 OE52-00100-00XF PLATE: SIDE-FRAME
17 0371-00124-00XF PLATE: END - DROP TARGET
18 0371-00125-00XF PLATE: END - DROP TARGET
19 0391-00l03-00XF RESET BAR: DROP TARGET
20 0967-00142-05XF PLATE: BOTTOM - ADJUST L = 2-15/16
21 0967-00143-03XF PLATE: BOTTOM STANDARD L = 4-1/16
22 0967-00144-03XF PLATE: LATCH L=4
23 0360-00720-00XF PIN: TARGET PIVOT (3 REQ'D.)
24 0390-00100-0000 BRKT: FILLER (2 REQ'n.)
1.28
