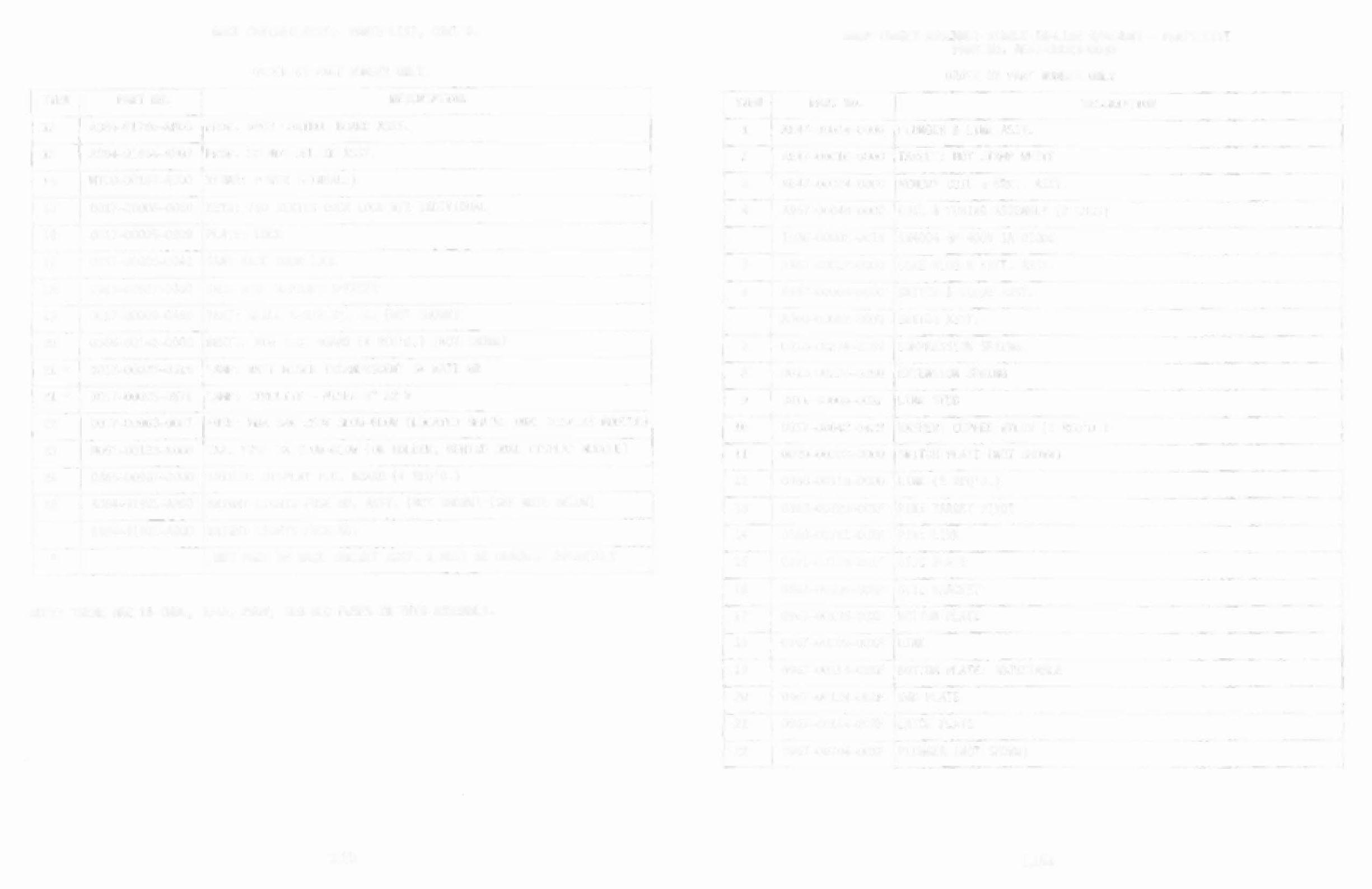

BACK CABINET ASSY.- PARTS LIST, CONT'O.
ORDER BY PART NUMBER ONLY
DROP TARGET ASSEMBLY SINGLE IN-LINE W/MEMORY - PARTS LIST
PART NO. AE47-00023-0000
ORDER BY PART NUt·1BER ONLY
ITEM
PART NO.
DESCRIPTION
12
A084-91786-AH03 PROG. 6803 CONTROL BOARD ASSY.
13
A084-91864-AH03 PROG. SOUNDS DELUXE ASSY.
14
MTOO-00157-AOOO XFRMR: POWER (PINBALL)
15
0017-00005-0050 KEYS: 750 SERIES DOOR LOCK W/2 INDIVIDUAL
16
0017-00005-0209 PLATE: LOCK
17
0017-00005-0042 CAM: BACK DOOR LOCK
18
0365-00527-0300 BACK BOX: W/FRONT SPEAKER
19
0017-00009-0490 VENT: GRILL 5-5/8 SQ. IN. (NOT SHOWN)
20
0365-00142-0000 BRKT.: MTG P.C. BOARD (4 REQ'D.) (NOT SHOWN)
21
*
0017-00003-0615 LAt4P: WATT MISER INCANDESCENT 34 WATT OR
21
*
0017-00003-0571 LAMP: CIRCLITE - MISER 8" 22 W
22
0017-00003-0007 FUSE: MDA 3AG 250V SLOW-BLOW (LOCATED BEHIND DUAL DISPLAY MODULE)
23
M051-00133-A008 TAG: FUSE 3A SLOW-BLOW (ON HOLDER, BEHIND DUAL DISPLAY MODULE)
24
0365-00967-0000 SHIELD: DISPLAY P.C. BOARD (4 REQ'D.)
25
A084-91901-AH03 BRIGHT LIGHTS FUSE BD. ASSY. (NOT SHOWN) (SEE NOTE BELOW)
B084-91901-AOOO BRIGHT LIGHTS FUSE BD.
*
lOT PART OF BACK CABINET ASSY.
&
MUST BE ORDERED SEPERATELY
ITEM
PART NO.
DESCRIPTION
1
AE47-00014-0000 PLUNGER
&
LINK ASSY.
,
2
AE47-00016-0000
,TARGET: HOT STAMP WHITE
3
AE47-00024-0000 MEMORY COIL
&
BRKT. ASSY.
4
A967-00048-0000 COIL
&
TUBING ASSEMBLY (2 LUGS)
103E-00002-0015 1N4004 GP 400V 1A DIODE
--
5
A967-00012-0000 CORE PLUG
&
BRKT. ASSY.
6
A967-00066-0000 SWITCH
&
OIODE ASSY.
A360-00062-0000 SWITCH ASSY.
7
0010-00274-0189 COMPRESSION SPRING
8
0010-00275-0350 EXTENSION SPRING
,
9' 0011-00006-00XF ILINK STUD
10
0017-00042-0428 WASHER: CUPPED NYLON (2 REQ'D.)
I
11
0020-00202-0000 ISWITCH PLATE (NOT SHOWN)
12
0360-00118-0000 LINK (2 REQ' D. )
13
0360-00720-00XF PIN: TARGET PIVOT
14
0360-00721-00XF PIN: LINK
15
0371-00123-29XF SIDE PLATE
16
0967-00105-00XF COIL BRACKET
17
0967-00106-00XF BOTTOM PLATE
18
0967-00109-00XF LINK
19
0967-00113-00XF BOTTOM, PLATE: ADJUSTABLE
II
20
0967-00124-00XF END PLATE
I.
21
0967-00144-20XF LATCH PLATE
22
0967-00704-00XF PLUNGER (NOT SHOWN)
10TE: THERE ARE 16 (MDL. 3/4A, 2S0V, $lO-BLO FUSES IN THIS ASSEMBLY.
2.1b
1.16a
