Jet Bumper Assemby
A-941 5-2
Jet Bumper Coil Assembly
1',
I
'
'I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
l

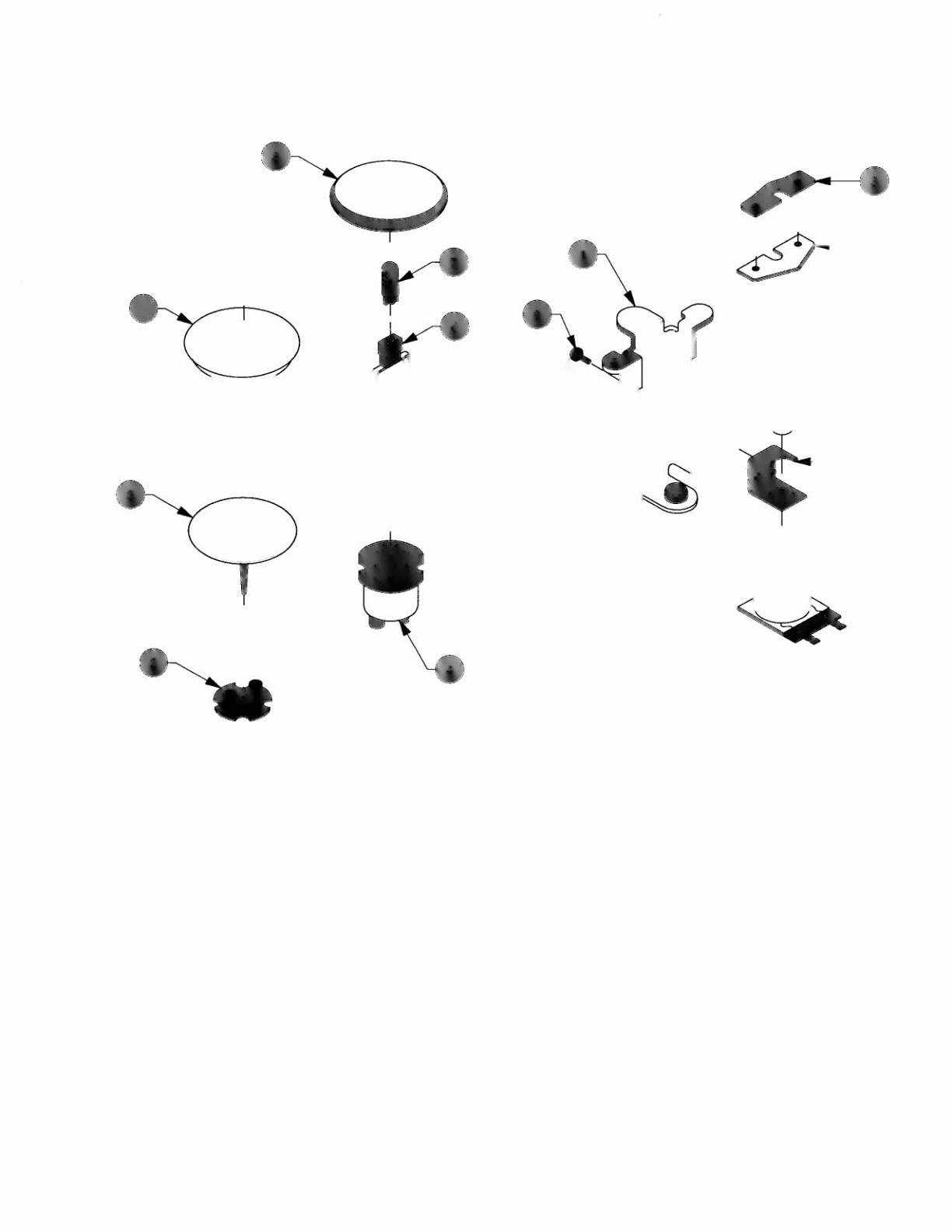

3
Item Part No.
Description
Item Part No.
Description
1.
A-4754
Bumper Ring Assembly
1.
B-7417
Bracket & Stop Assembly
2.
03-6009-A5 Bumper Base, White
2.
01-1747
Coil Retaining Bracket
3.
03-6035-27 Bumper Wafer, Op. Teel Green
3.
01-5492
Armature Link, Steel
4.
03-7443-5
Bumper Body, White
4.
01-5493
Armature Link, Bakelite
5.
10-7
Spring
5.
02-3406-1
Coil Plunger
6.
24-8776
Socket-Wedge Base
6.
10-326
Armature Spring
7.
24-8768
Bulb #555 (6.3v., 0.25A.)
7.
AE-26-1200
Coil Assembly
8.
4006-01017-04 Mach. Screw, 6-32 x 1/4"
9.
03-7066
Coil Tubing
Associated Parts:
8.
03-9030-25 Jet Bumper Cap (3)
(Trans. Teel)
2-31
