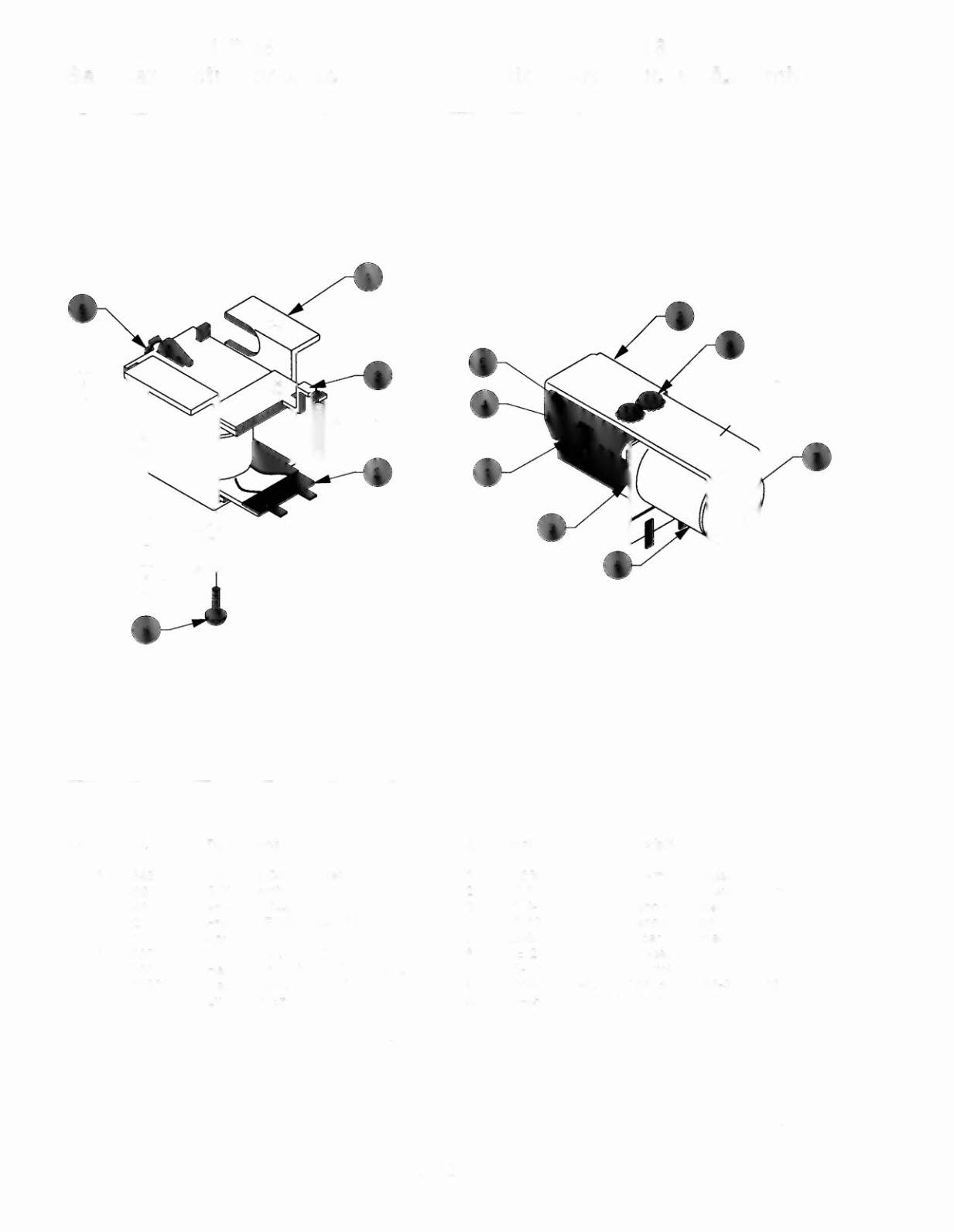

A-17796
Ball Gate Actuator Assembly
5
4
B-11873
Bottom Arch Kicker Assembly
rG
/
/
Item Part No.
Description
Item Part No.
Description
1.
01-12348
Ball Gate Coil Bracket
1.
A-6306-2
Bell Armature Assembly
2.
A-14406
Coil Assembly
2.
01-11273
Mtg. Kicker Bracket Assembly
3.
A-11146
Armature Assembly
3.
01-8-508-T
Solenoid Bracket
4.
A-6892
Frame & Eyelet Assembly
4.
10-135
Solenoid Spring
5.
10-120
Spring
5.
23-6420
Rubber Grommet
6.
4701-00003-00 Lockwasher, #8 Split
6.
AE-23-800
Coil Assembly
7.
4700-00089-00 Flatwasher, 11/64 x 7/16 x 16ga.
7.
03-7067-5
Coil Tubing
8.
4008-01021-07 Mach. Screw, 8-32 x 7/16"
8.
4008-01017-05 Mach. Screw, #8-32 x 5/16'
9.
10-194
Extension Spring
9.
03-8523
Insulator
