A-15361

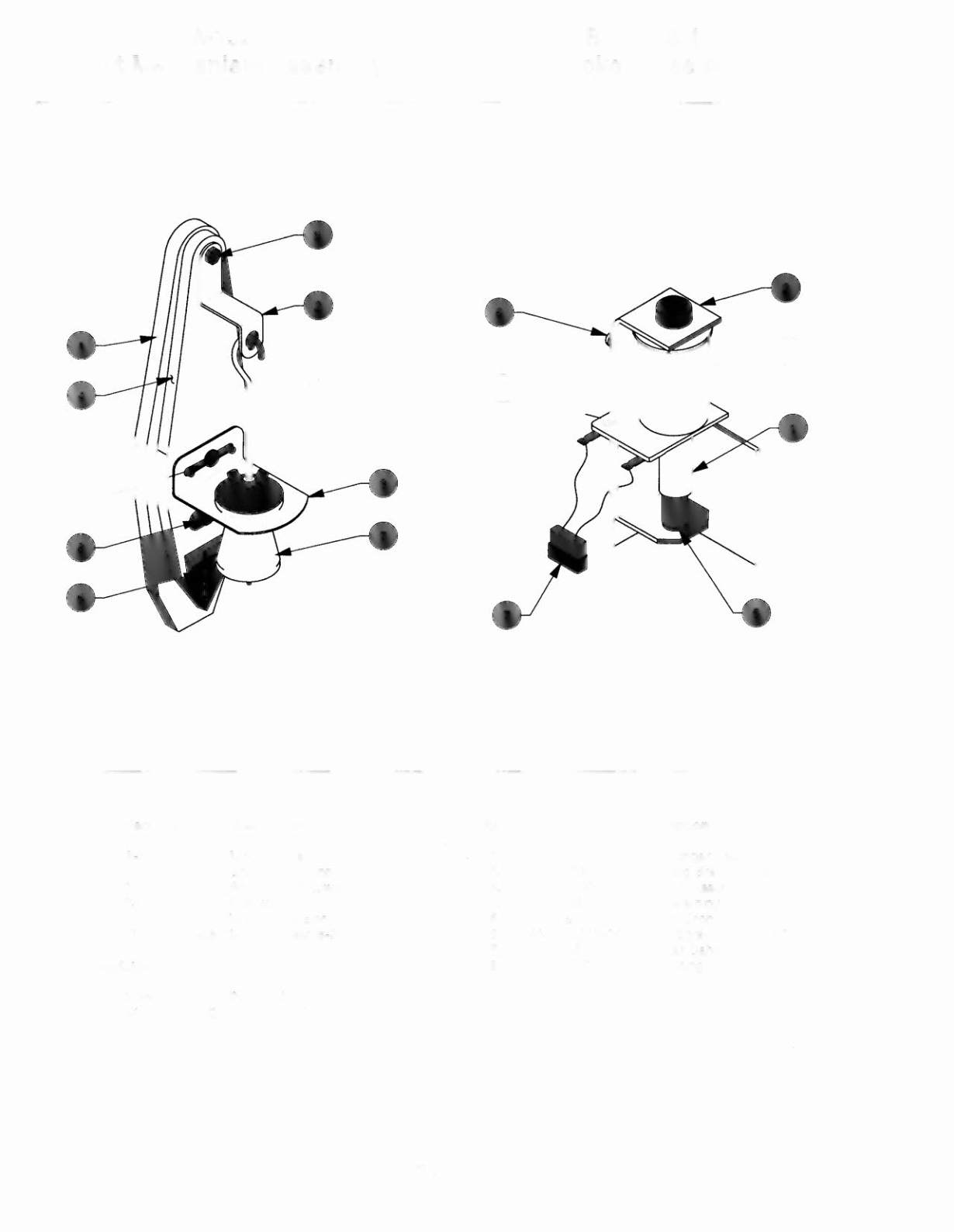

Tilt Mechanism Assembly
8-10686-1
Knocker Assembly
G)__
-
Item Part No.
Description
Item Part No.
Description
1.
A-15360
Mount Plate, Tilt Mech.
1.
A-5387
Coil Plunger Assembly
2.
01-3444
Bracket, Tilt Upper
2.
01-11273
Mounting Bracket Assy.
3.
01-3445
Bracket, Tilt Lower
3.
AE-23-800
Coil Sub-Assembly
4.
03-8668
Pendulum, Tilt Mech.
4.
01-8-508-T
Coil Retaining Bracket
5.
12-6231
Wire, Plum Bob
5.
23-6420
Rubber Grommet
6.
4006-01113-06 Mach. Screw, 6-32 x 3/8"
6.
4008-01017-04 Mach. Screw, 8/32 x 1/4"
7.
H-11835
Knocker Cable
Associated Parts:
8.
03-7067-5
Coil Tubing
7.
20-6502-A
Plum Bob
8.
4406-01120-00 Wing Nut (2)
2-30
