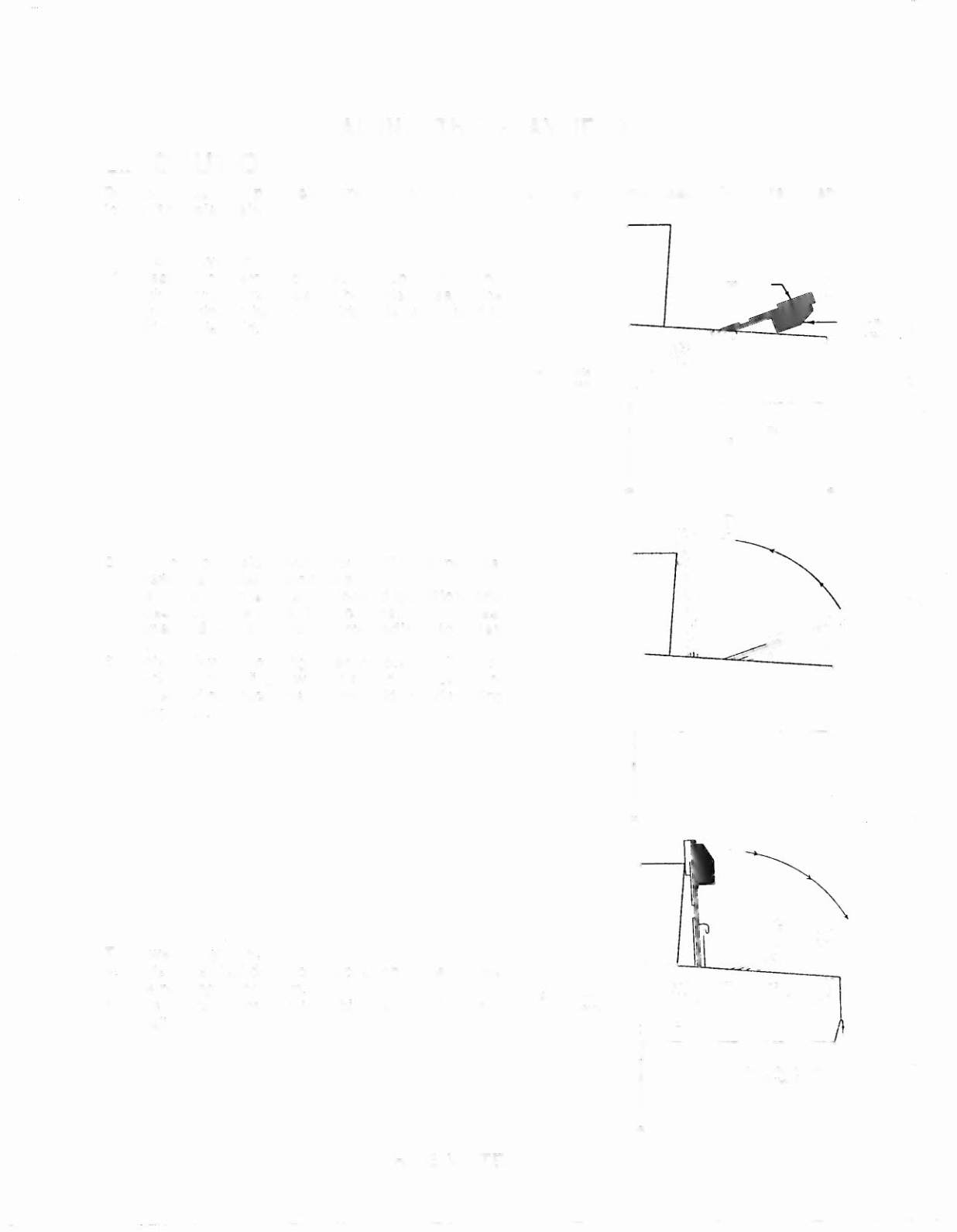

RAISING THE PLAYFIELD
&
CAUTION
Do not raise the playfleld straight up!
This game uses a slide assembly to raise and
lower the playfield.
To raise playfleld:
1. Grasp bottom arch and carefully lift up playfield only
high enough to clear safety brackets. Rear guide
legs should not hit wood guide rails or be used to
slide out playfield.
Rear Guide Leg
(2 used)
2. Pull out playfield toward you until it stops (rest
position) and raise approximately 3".
Be sure playfleld Is In locked position and
does not slide back Into cabinet.
If It does.
repeat Step 2 before proceeding to Step
3.
3. Rotate playfield to upright service position (lean on
backbox) by pulling toward you and up. Listen for
the sound of a click; this insures locking and pivoting
sequence.
To lower playfield:
4. Rotate playfield down to rest position. This unlocks
the pivoting mechanism.
5. Push back playfield into cabinet and into playing
position.
Slide
Mechanism
(2
used)
WHITE WATER
1-4
Safety Bracket
(2 used)
"
Wood Gutde RaU
(2 used)
o
0
.
~
i
I
I
~
"
:k~~t~~~?~oW=' =~r~:-~~~ :
"
Pivot
Mechanism ~\:.\
(2 used)
