7. Unlock and open the coin door. Move the molding latch lever toward the left side of the game. Lift the
front molding off the playtield cover glass return the latch lever toward the right, and close the coin door.
Carefully slide the glass downward, until it clears the grooves of the left and right side moldings. Lift the
glass up and away from the game.
8. Place a level or an inclinometer on the playtield surface. Adjust the leg levelers for proper playfield level
(side-to-side). NOTE: It is recommended that this measurement be made ON the playfield, not the
cabinet nor the playtield cover glass. Tighten the nut on each leg leveler shaft to maintain this setting.

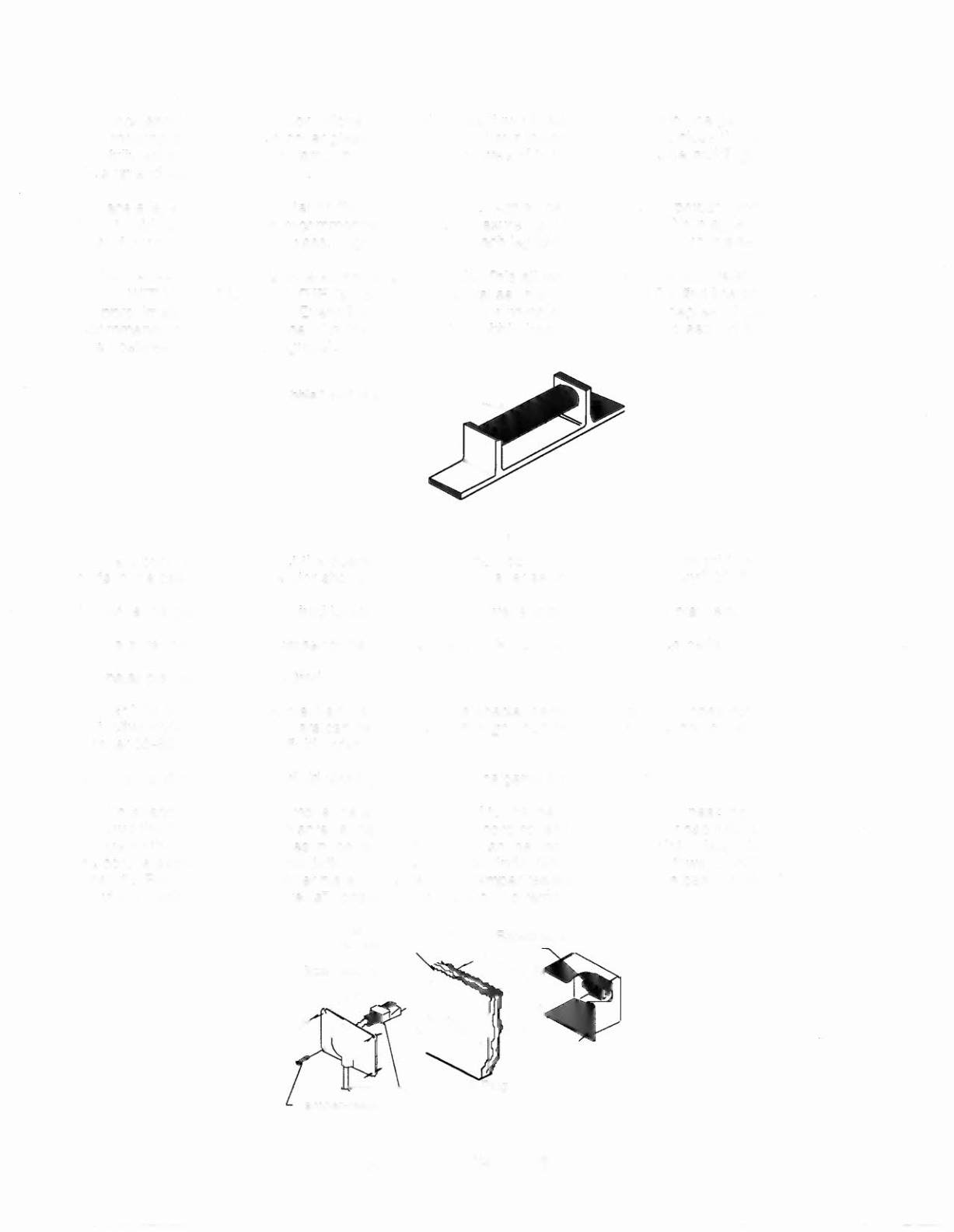

9. The TRU-PITCH™ level is located on the shooter rail. This allows the operator to accurately pitch the
game - WITHOUT REMOVING THE GLASS - when it is first set in a new location. The first line on the level
is approximately 6 degrees. Every line after that is approximately another
1/2
degree of pitch. We
recommend you pitch the game with the NOSE of the bubble between the first and second line on the
level (between 6 and
6-1/2
degrees) .
Bubble Level at 6
0
to
6-1/2~
"
! IMPORTANT!
Playfield pitch angle can affect the operation of the plumb bob tilt. The plumb bob weight is among the
parts in the cash box; the operator should install the weight after setting the desired playtield pitch angle.
10. Move the game into the desired location; recheck the level and pitch angle of the playfield.
11. Be sure the
required number
of ball are installed.
WHITE WATER
uses three balls.
12. Install playtield mylars if desired.
NOTE:
The
WHITE WATER
playfield is coated with a special hardcoat surface and does not require a
protective mylar. However, mylars can be purchased through your local Williams Distributor. Specify part
number 03-8801-1 for full playtield mylar.
13.
Clean and reinstall the playtield cover glass. Prepare the game for player operation.
14. To attach the line cord, remove the envelope stapled to the inside of the cabinet (near the cashbox).
Remove the four Phillips-head screws that mount to line cord cover plate to the rear cabinet. Match the
prongs on the plug with the holes in the receptacle, and push the line cord securely into place. Make sure
the cord is aligned with the indentation on the cover plate (indentation should point toward bottom of the
cabinet). Remount line cord cover plate. If desired, four tamper resistant screws have been provided in an
enevlope marked "Security Screws" (located in the cashbox) to remount cover plate.
(Part of cabinet shown
for reference only)
J..l,.------'-Line Cord
&
Plug
Tamper-resistant Screw
WHITE WATER 1-3
