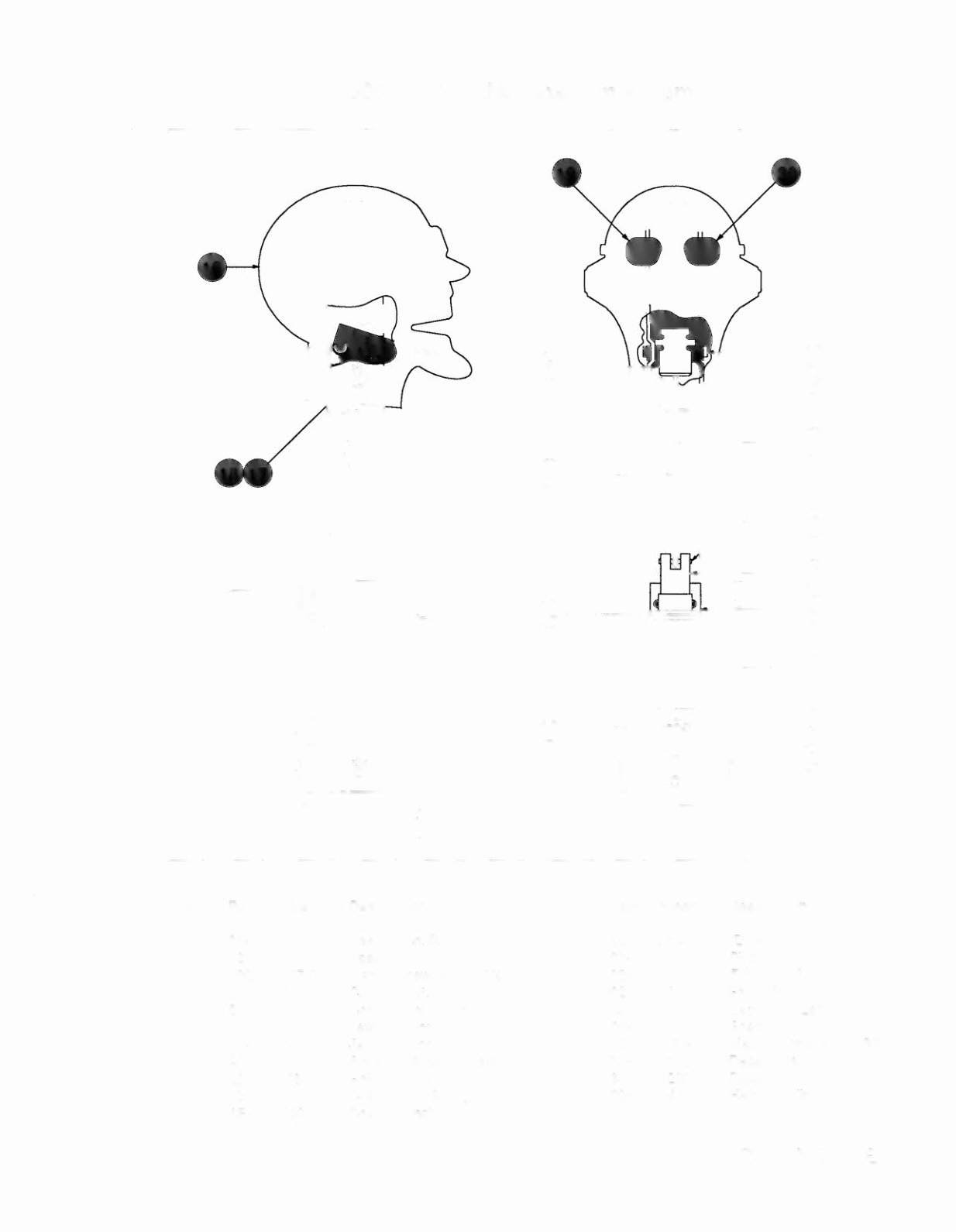

A-15008 Head Mechanism Assembly
:---,
I
I
I
I
I
I
I
I
I
I
I
I
_ :l
II
II
II
II
II
I II
I II
I II
II
:7
7
l-----+l--I
f-+I-----l11
®
Item Part Number
Description
Item Part Number
Description
1.
01-10270
Head Mech. Bracket
12.
20-8712-14
"E"-Ring
2.
02-4557
Base Block
13.
02-4556
Pivot Pin
3.
4008-01 017-04 Mach. Screw, 8-32 x
1/4
Lg.
14.
03-7067
Tubing Coil
4.
01-10272
Coil Bracket, Upper
15.
02-4556-1
Pivot Pin
5.
01-9794
Coil Bracket, Lower
16.
03-8600
Captain B.Zarr
6.
01-10274
Jaw Actuator
17.
02-4573
Spacer
7.
12-6987-1
Jaw Actuator Rod
18.
4006-01027-06
Mach. Screw, 6-32 x
3/8"
8.
A-14758
Armature & Shaft Assy.
19.
31-1357-20004-1 Decal, Eye
9.
20-8716-18
Roll Pin,
3/32
x
3/8
20.
31-1357 -20004-2 Decal, Eye
10.
10-135
Coil Plunger Spring
21.
03-7655-4
Harness Clip
11.
AE-26-1500
Coil Assembly
2.31
