A-14808

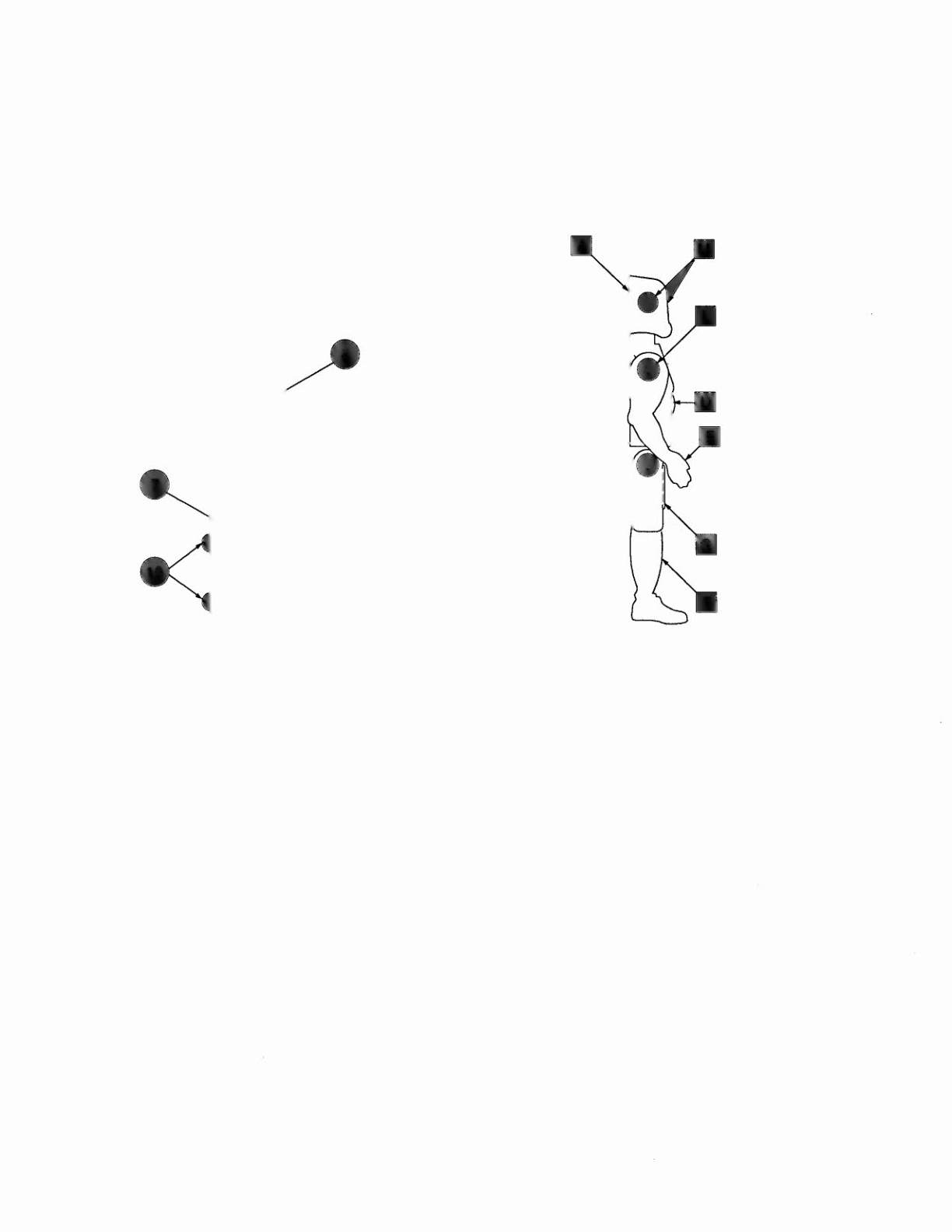

Dancing Mechanism Assy.
A-14803
Dancing Dummy Assy.
A-14S0S
A-14S03
Dancer Mechanism Assembly
Dancing Dummy Assembly
Item Part Number
Description
Item Part Number
Description
1.
A-14882
Push Rod Assembly
A.
03-8605
Dancing Dummy Body
a) 02-4562
Shaft - Dancing Dummy
B.
01-10367
Body Mounting Bracket
b) 02-4570-1
Shaft Extension
C.
01-10374
Bracket
c) 20-8716-20
Roll Pin, 1/8 x 3/8"
D.
07-6688-19
Rivet, 7/32 x 1/8"
2.
AE-26-1200
Coil Assembly
E.
31-1641-1
Arm
3.
OH 0291
Mechanism Bracket
F.
31-1641-2
Leg (Lower)
4.
23-6629
Rubber Grommet
G.
01-10290
Leg (Upper)
5.
01-10366
Stop Bracket
H.
02-4566-1
Pivot Pin, 1.32 Lg.
6.
10-135
Spring Coil
J.
02-4566-2
Pivot Pin, .22 Lg.
7.
01-9794
Mounting Bracket
K.
02-4566-3
Pivot Pin, .76 Lg.
8.
03-7067
Coil Tubing
L.
20-9689
Springrip Fastener
9.
OH 0365
Mounting Bracket
M.
31-2-20004-6
Decal, Top
10.
4008-01003-04 Mach. Screw,8-32 x 1/4
31-2-20004-7
Decal, Top
11.
4008-01015-04 Mach. Screw, 8-32 x 1/4
31-2-20004-8
Decal, Top
31-2-20004-9
Decal, Top
