PINBALL GAME ASSEMBLY INSTRUCTIONS
1. Open the shipping container; remove all cartons, parts, and other items, and set them aside.
2. Place the cabinet on a support and attach rear legs using leg bolts. Leg levelers and leg bolts are
provided among the parts in the cash box.
3. Attach the front legs (after installing leg levelers), using leg bolts. See Figure 3 for details .
••...•.........
__
.
·
.
·
.
·
,
·
.
·
.
".._--- ---- l
Approx
Playfield
Pitch
Angle:
6· 7Degrees
Nut
4422-01117-00
leg
Spacer
02-4341
0
u
V"
etat
lew-
Leg Leveller
II
II
I
J
I
I
I--
I
J
v
V
L
:::l
C-10843
leg
a!r73n
eg leveUer
Shaft
FootPad
See
DetaDV'eN

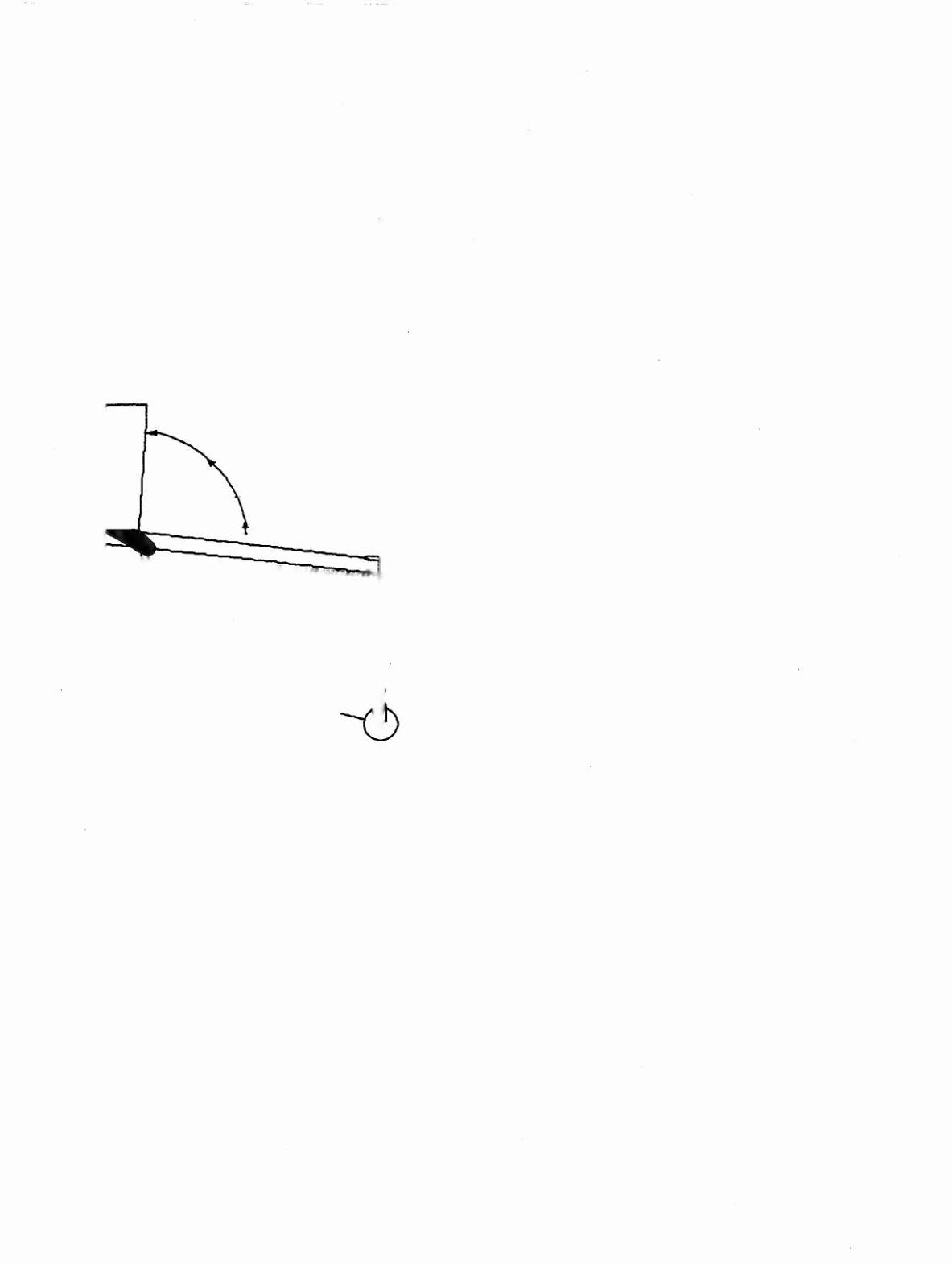

Figure 3. Pinball Assembly, Playfield Pitch Angle, and Leg Leveler Details.
4. Reach into the cabinet and backbox and ensure that the interconnecting cables are free to move
(not kinked or pinched). Be careful to avoid damaging wires at any stage of the assembly process.
5. Raise the hinged backbox upright and latch it into position. Unlock the backbox, and remove the
backglass, storing it carefully to avoid scratches. Remove the shipping block holding the Insert
Board. Unlatch and open the Insert Board. This allows access to the bolt holes used for securing the
backbox upright. Install the washer-head mounting bolts through the bottom holes of the backbox
into the threaded fasteners in the cabinet to secure the backbox. Close the Insert Board and latch it
in position. Reinstall the backglass, and lock the backbox.
FAILURE TO INSTALL
the backbox mounting hardware properly can cause personal injury.
NEVER TRANSPORT
a pinball game with the hinged backbox erect.
Always
lower the backbox
forward onto the playfield cabinet on a layer of protective material to prevent marring or damage
and possible personal injury.
THE MACHINE 1-5
