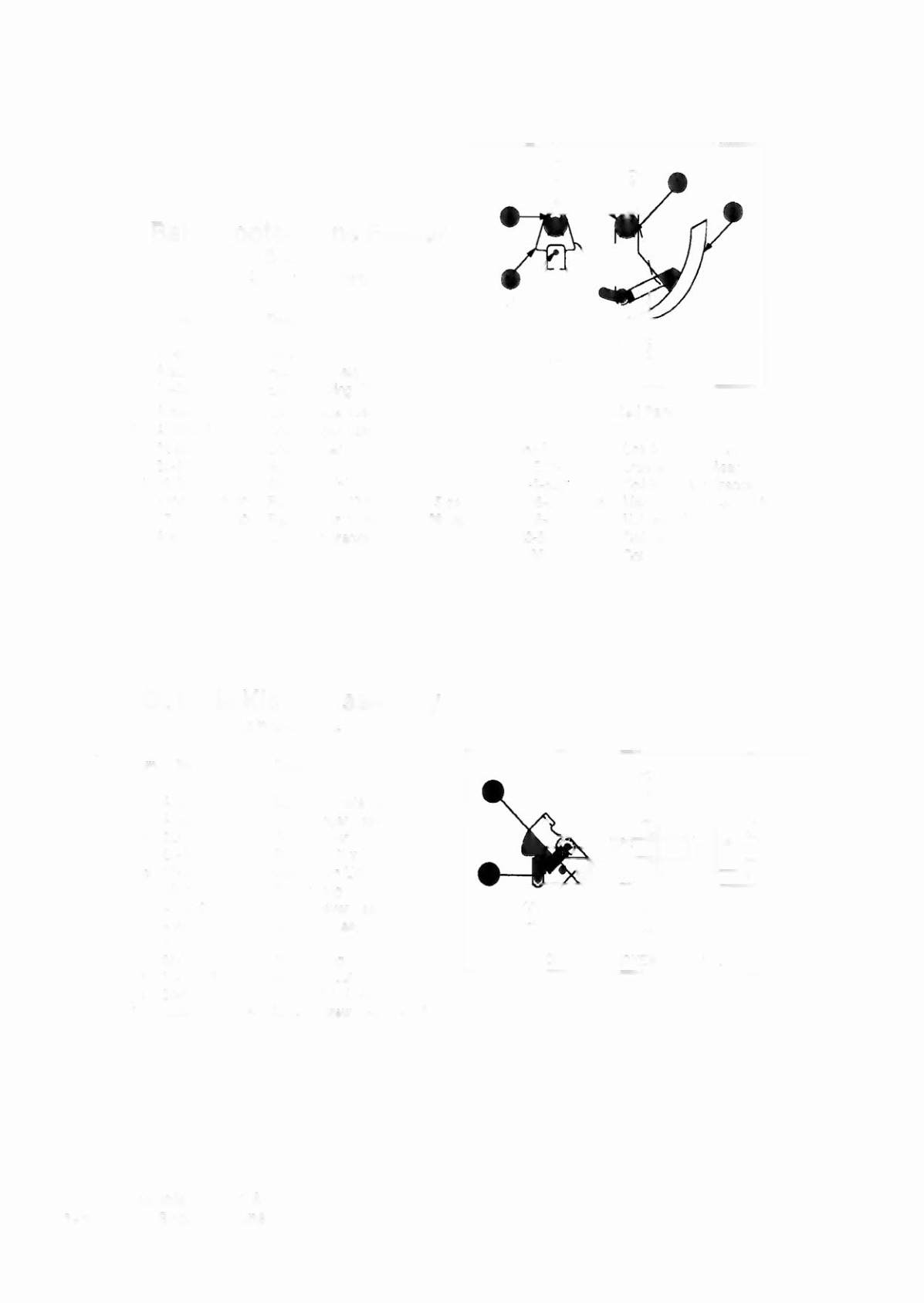

Ball Shooter Lane Feeder
C-9638-3
&
Associated Parts
Item Part No.
1 12-6227
2 A-8247
3 10-362
4 A-6949-L
5 A-80S0-1
a) 02-3407-2
b) 20-8716-5
c) 03-8085
6 4700-00030-00
7 4700-00103-00
8 A-8268-2
Description
Clip, Hairpin
Eject Cam Assy
Ejector Spring (Plain)
Spring Plate Assy
Coil Plunger Assy
Coil Plunger
Roll Pin
Armature Link
Flat Washer,
17/64
x
112
x
15 ga
Flat Washer, 17/64
x
112
x
28
ga
Mounting Bracket Assy
Outhole Kicker Assembly
pIn 8·8039·2
Item Part No.
1 A-6378
2 A-8335
a) 02-2364
b) 20-8716-5
c) 01-4251
3 03-7066
4 A-6889
5 A-8038
6 AE-23-800
7 03-7176-1
8 10·101-4
9 20-8712-25
10 4006-01003-03
Description
Mounting Plate Assy
Coil Plunger Assy
Coil Plunger
Roll Pin, 1/8
x
7116
Ball Return Link
Coil Tubing
Kicker Lever Assy
Coil Stop Assy
Coil Assy
Striker Ring
Spring-Reset
"E" Ring, 1/4" Shaft
Mach. Screw, 6-32 x 3/16
Outhole Kicker
&
2-1 6 Ball Shooter Lane Feeder
Associated Parts
B-9362-L-1
B-7572-1
01-8-508~S
4006-01017-06
4406-01119-00
AE-23-800
03-7066
Coil & Bracket Assy
Bracket & Stop Assy
Coil Retaining Bracket
Mach. Screw, 6-32 x
3/8
Nut, 6-32 ESN
Coil Assembly
Coil Tubing
OUTHOLE KICKER ASSEMBLY
