USING THE STAY ARM AND CHANGING FUSES
&CAUnON
Before Raising the Playfield:
Be sure there are no balls present In any of the ball-holding playfield devices (i.e. poppers).
Raising the playfleld with balls present in these locations may cause them to come loose and
damage the playfield. Use the "Empty Balls Test" to remove all of the balls from these locations.

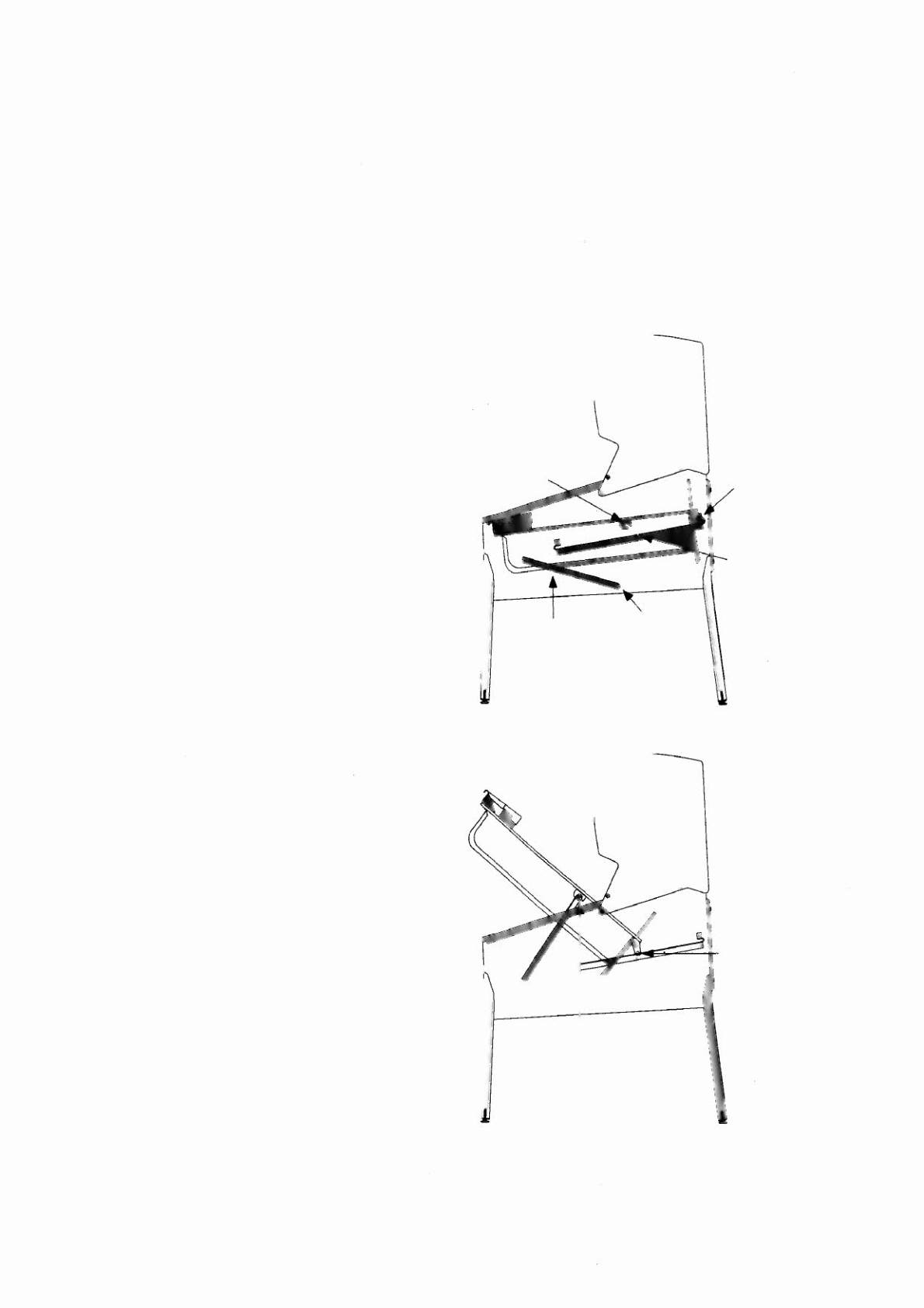

To Use the
Stay
Arm:
1. Tum off power to the game. Open the coin
door. Lift the front molding and slide the glass
off of the cabinet. Lift the playfield by the metal
bracket under the bottom arch. Rest it on the
top of the cabinet.
Playfield Holder
2. Close the coin door. Lift the playfield high
Bracket
enough to enable you to unhook the rubber ring
holding the stay arm down.
3. Slide the playfield forward until the feet lock into
the notch on the slide.
Notch
4. Lift the stay arm and slide the round retainer into
the 'U' shaped playfield holder bracket located
on the right side of the pJayfield.
5. To release the
stay
arm, slightly raise the
playfield and slide the retainer out of the
playfield holder bracket.
Note: Be sure to support the p/ayfield once the
stay arm has been removed.
To Change a Fuse:
1. Tum off power to the game. Raise the pJayfield
and hold it in place with the stay arm.
2. Lift the Power Driver board cover.
3. The fuses are accessible. Use the proper
extraction tool to remove fuses.
Feet
Stay Arm
-,
Retainer
Lock the Stay Arm
Retainer into the
Playfield Holder Bracket.
1-10
