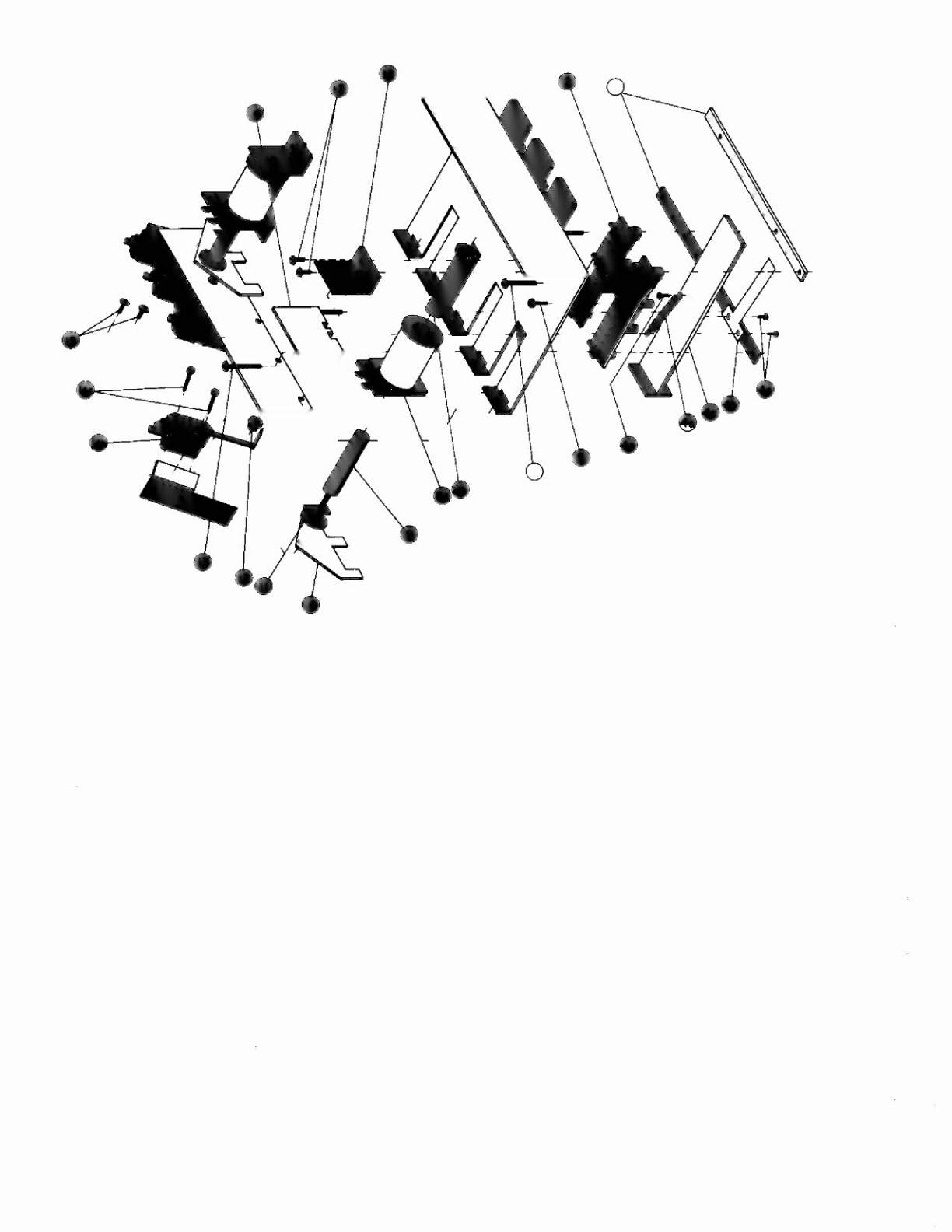

4-Bank Drop Target Assembly
pin
0-10883
Item Part No.
Description
Item Part No.
Description
1 01-7205
Drop Target Frame
9 02-3972
Drop Target Plunger
2 03-7479
Drop Target Guide
10 01-7036
Reset Plate
3
01-6450-4
Target Retaining Bar
11 4700-00023-00 Washer, 13/16 o.d. x 5/8 l.d
4 B-8451
Drop Target Assembly
16 gao
a) 4104-01001-04 Sh. Metal Screw, #4 x1/4,
12 4410-01132-00 Nut, 10-32 ESN
P-PH-A
13 4006-01003-15 Mach. Screw, 6-32 x
15/16,
b)
01-7037
Target Backup Blade
P-RH-S
c) 03-7478
Drop Target
14 A-9417
Microswitch
&
Bracket
d) 10-364
Target Retractor Spring
a)
01-7495
Switch Bracket
e) 4104-01001-04 Sh. Metal Screw, #4 x1l4,
b)
17-1042
Switch, Drop Target
P-PH-A
c)
4004-01003-10 Mach. Screw, 4-40 x
5/8,
5 4106-01001-07 Sh. Metal Screw, #6 x7/16,
P-PH-S
P-PH-A
15 4006-01003-03 Mach. Screw, 6-32 x 3/16,
6 4006-01003-15 Mach. Screw, 6-32 x
15/16,
P-PH-S
P-PH-S
16 01-6451-4
Coil Support Angle
7 4006-01017-04 Mach. Screw, 6-32 x
1/4,
17 4006-01017-04 Mach. Screw, 6-32 x 1/4,
P-RH-S
P-RH-S
Sa
AE-23-800-04 Coil Assembly
18 A-8037
Coil Stop Assembly
b)
03-7066-4
Coil Sleeve
GRAND LIZARD 40
