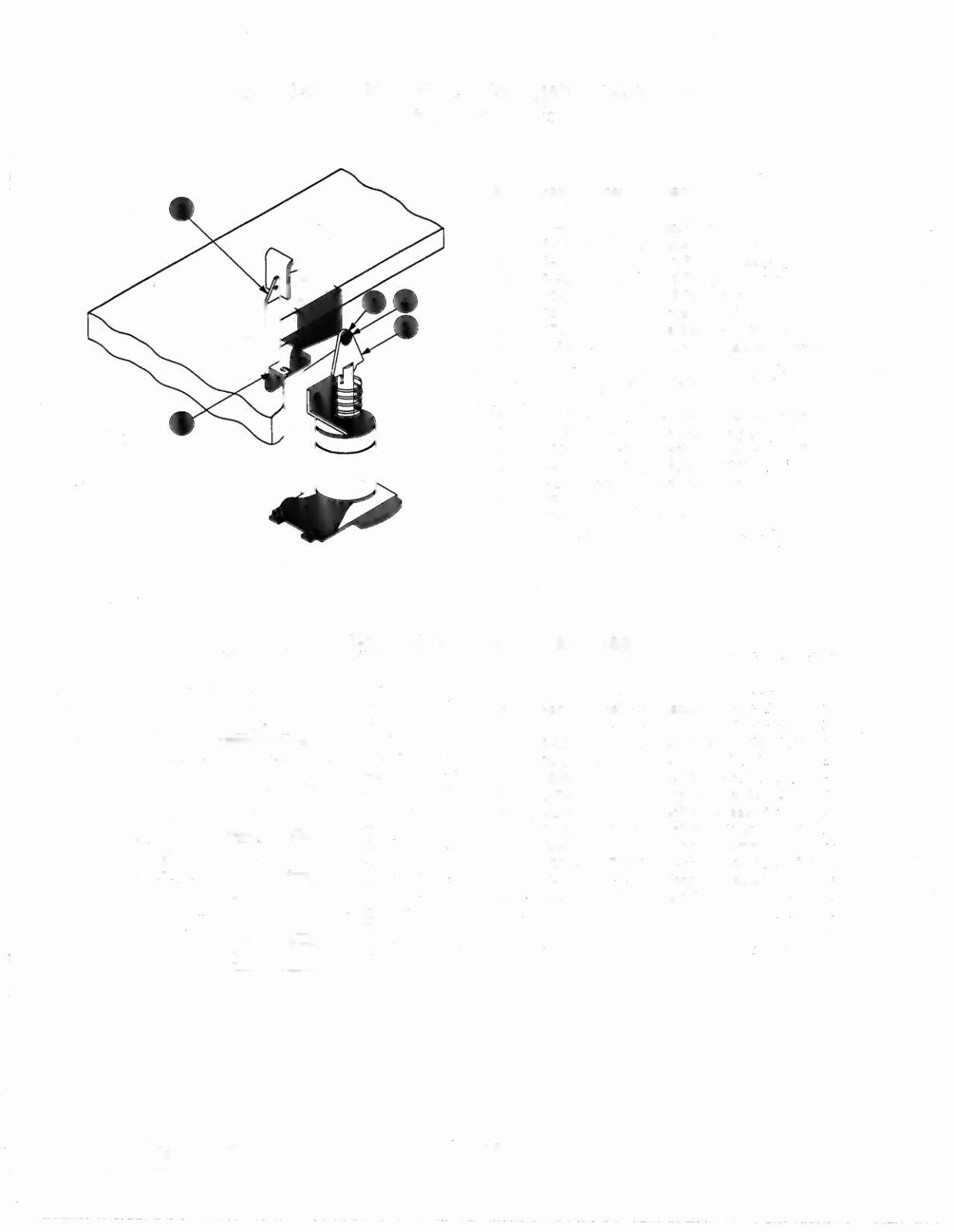

8-12665 Kicker Arm (Slingshot) Assembly
(Left & Right Kickers)
Item Part Number
Description
1
12-6227
Clip, Hairpin
2
A-12664
Kicker Crank Assembly
3
A-51 03
Coil Plunger Assembly
a)
02-2364
Coil Plunger
b)
20-8716-5
Roll Pin, 1/8 x 7/16
c)
03-8085
Armature Link
4
4700-00030-00 Flatwasher, 17/64 x 1/2 x 15ga.
5
A-5653
Mounting Bracket Assembly
Associated Parts
6
B-13935
Coil & Bracket Assembly
7
01-8-508-S
Coil Retaining Bracket
8
4006-01017-06 Mach. Screw, 6-32 x.3/8
9
4406-01119-00 Nut, 6-32 ESN
10 AE-26-1500
Coil Assembly
11 03-7066
Coil Tubing
12 10-128
Spring
8-10686-1 Knocker Assembly
Item Part Number
Description:
.
1 A-5387
Coil Plunger Assembly
a)
02-2653
Coil Plunger
3
b) 03-6013
Bell Arm Ext.
2
B-7409-2
Mtg. Bracket Assembly
3
AE-23-800
Coil Sub-Assembly
4
01-8-508-T
Coil Retaining Bracket
5
23-6420
Rubber Grommet
6
4008-01017-06
Mach. Screw,
8/32
x
3/8
7
H-11835
Knocker Cable
8
03-7067-5
Coil Tubing
Kicker (Slingshot)
2-18
Knocker
