A-17811

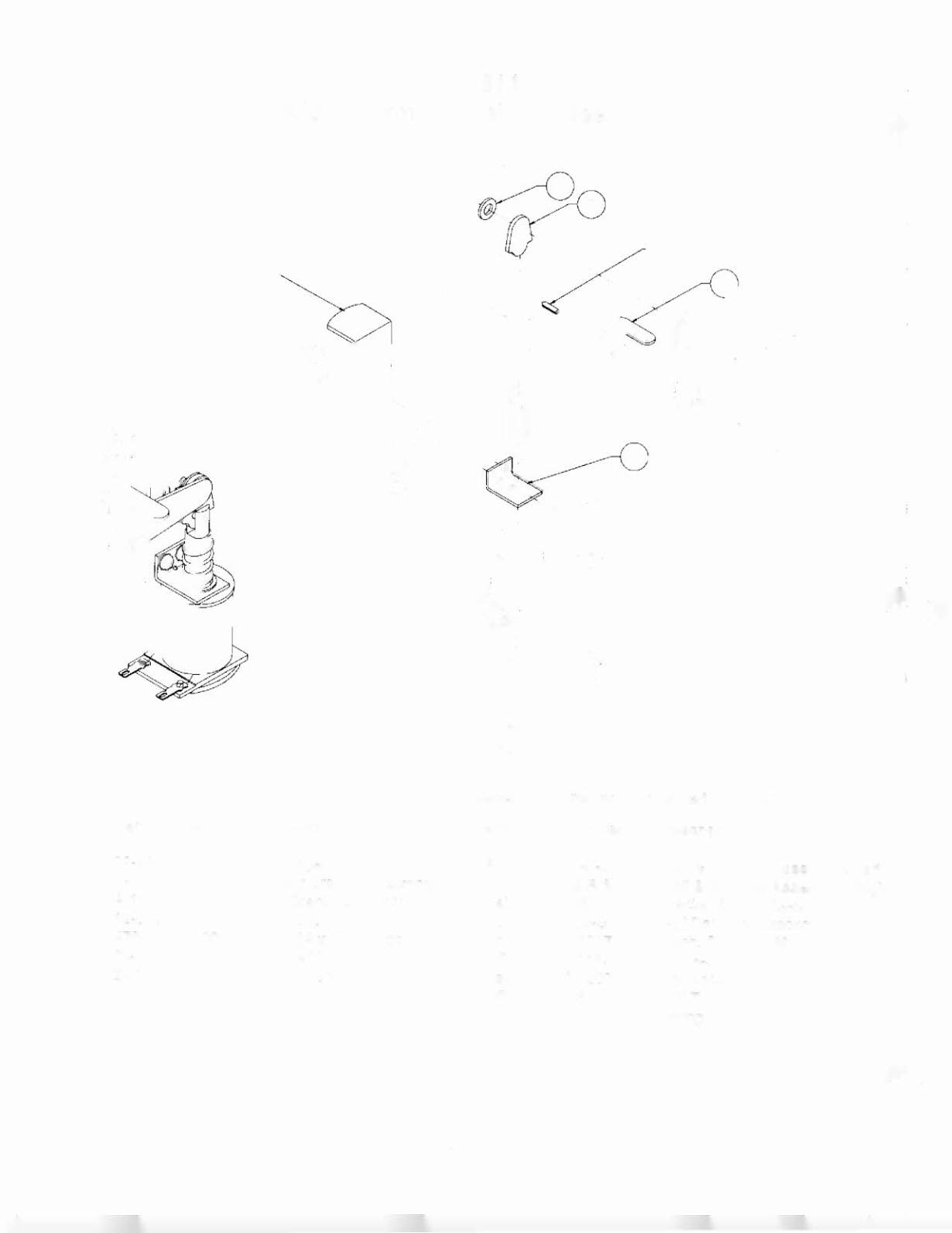

Kicker Arm (Slingshot) Assembly
1
I
Associated Parts for Right & Left Kickers:
Item Part Number
Description
Item Part Number
Description
1 02-2364
Coil Plunger
8
B-9362-L-2
Coil & Bracket Assembly, Left
2 A-H81O
Mounting Bracket Assembly
B-9362-R-3
Coil & Bracket Assembly, Right
3 A-12664
Kicker Crank Assembly
a) A-17808
Bracket & Stop Assembly
4 12-6227
Hairpin Clip
b) 01-8-508-S
Coil Retaining Bracket
5 4700-00030-00 FW, 17/64 x 1/2 x 15ga.
c) 4006-01 017 -06 Mach. Screw, 6-32 x 3/8"
6 03-8085
Armature Link
d) 4406-01119-00 Nut, 6-32 ESN
7 20-8716-5
Roll Pin, 1/8 x 7/16"
e) AE-26-1200
Coil Assembly
f}
03-7066
Coil Tubing
9 10-128
Spring
