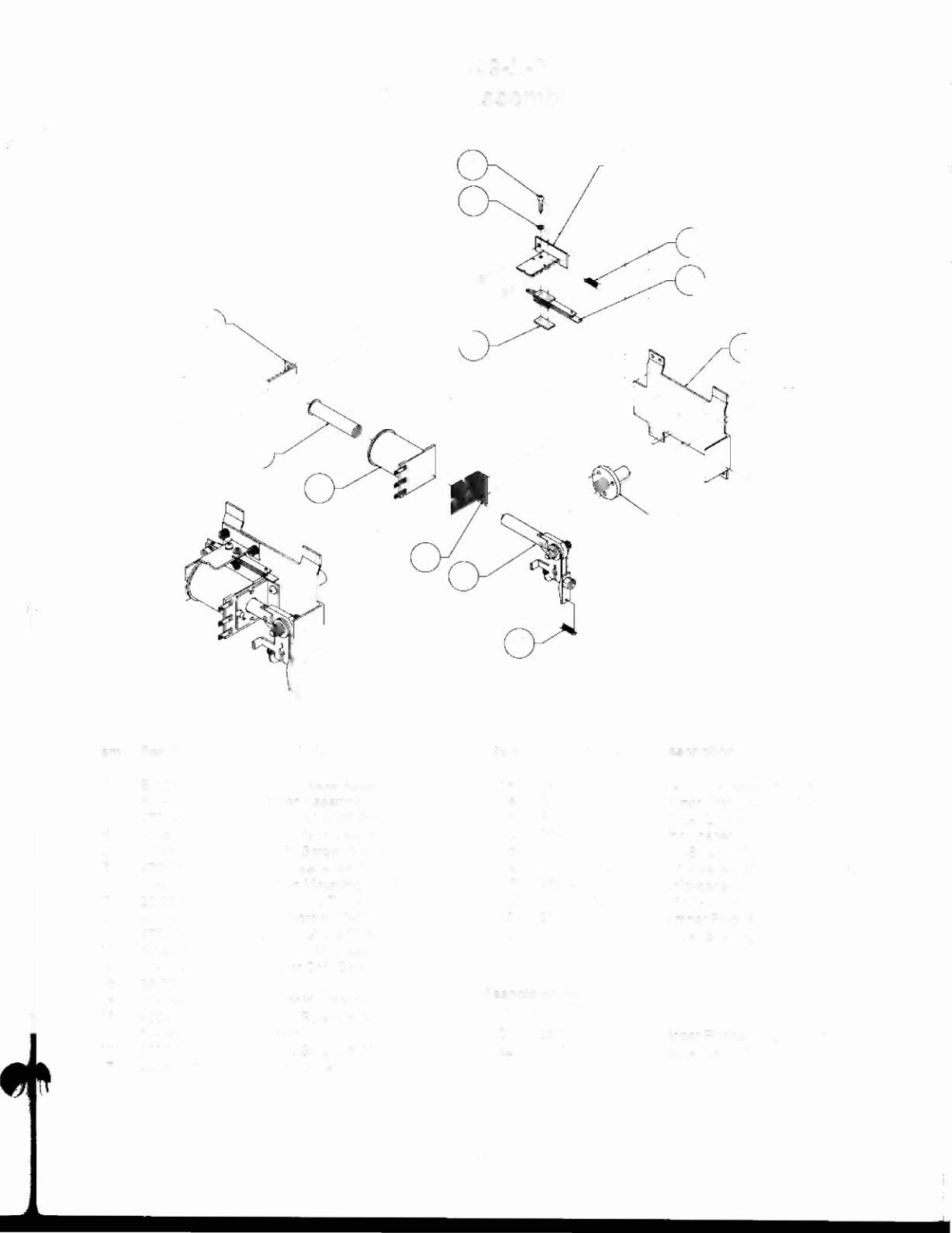

A-15849-L-2
Flipper Assembly
\
Item Part Number
Description
Item Part Number
Descri ption
1 B-13104-L
Flipper Base Assembly, Left
18 A-15848-L
Crank Link Assembly, Left
2 SW-1A-194
Switch Assembly
a) A-17050-L
Flipper Crank Assembly, Left
3 4701-00002-00
Lockwasher #6 Split
b) A-15847
Flipper Link Assembly
4 41 05-01 019-1 0 Sh. Metal Screw, #5 x 5/8"
c)
02-4676
Link Spacer Bushing
5 4008-01 079-05 Mach. Screw, 8-32 x 5/16"
d) 4010-01086-14 Cap Screw, 10-32 x
7/8"
6
4701-00003-00
Lockwasher #S Split
e) 4700-00023-00
Flat Washer, 5/8 x
13/64
x 16ga.
7 01-9375-1
Switch Mounting Bracket
f)
4701-00004-00
Lockwasher #1 0 Split
8 20-6516
Speednut, Tinnerman
g) 4410-01132-00
Nut 10-32 ESN
9
401 0-01 066-06 Cap Screw, 10-32 x
3/S"
19 23-6577
Bumper Plug, 5/8"
10 4701-00004-00
Lockwasher #1 0 Split
20 03-7568
Flipper Bushing
11 A-12390
Flipper Stop Assembly
12 FL-11629
Flipper Coil, Blue
a)
03-7066-5
Coil Tubing
Associated Parts:
13 01-7695-1
Solenoid Bracket
14 4006-01017-04 Mach. Screw, 6-32 x
1/4"
(Not Shown)
15 10-364
Spring
21 23-6695
Flipper Rubber Ring, Black
16 4006-01005-06 Mach. Screw, 6-32 x
3/8"
22 20-10110-6
Flipper Bat w/Shaft
17 4406-01117-00 Nut 6-32 Hex.
2-15
