A-19963-1

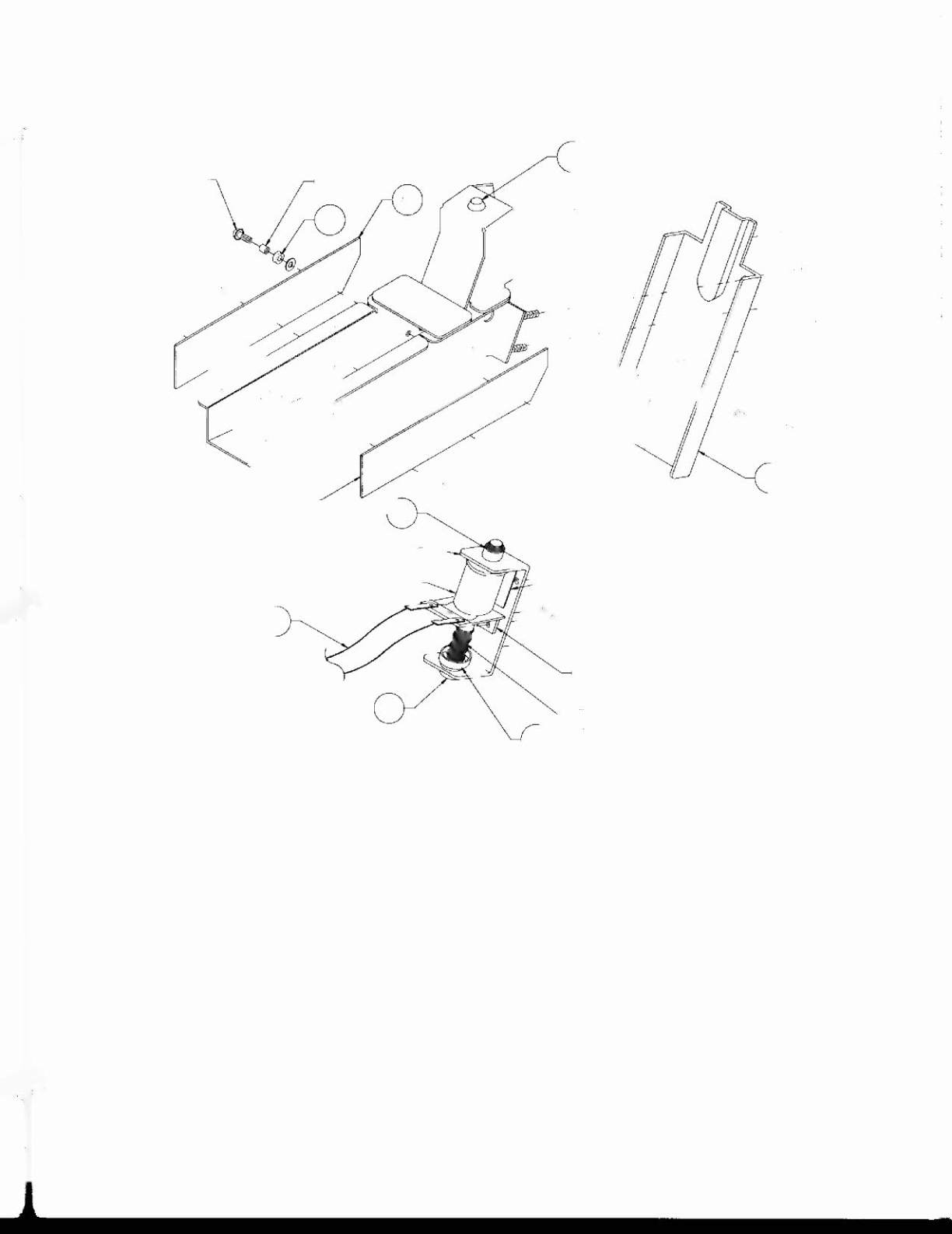

Ball Trough Assembly Complete
r2'
'I(:
I
__j
~)
0
\_0
Item Part Number
Description
Item Part Number
Description
1 A-16809-2
Ball Trough Welded Assy.
12 4408-0111 9-00 Nut 8-32 ESN
2 01-11587
Ball Trough Front
13 4008-01 01 7-06 Mach. Screw, 8-32 x 3/8"
3 A-6306-2
Bell Armature Assembly
14 23-6702
Bumper Plug
4 AE-26-1S00
Coil Assembly
15 A-18617-1
Trough IRED LED PCB Assembly
5 01-8-508-T
Solenoid Assembly
16 A-18618-1
Trough IRED Transistor PCB Assy.
6 03-7067-5
Coil Tubing
17 4006-01003-10 Mach. Screw, 6-32 x 5/8" SEMS
7 10-135
Spring
18 23-6626
Rubber Grommet
8 23-6420
Rubber Grommet
19 4700-00004-00 Flat Washer, 9/64 x 7/16 x 21ga.
9 03-8523
Insulator
20 02-4975
Bushing
10 01-1158
Coil Mounting Bracket
21 H-19523
Mini Solenoid Cable
11 4008-01017-05 Mach. Screw, 8-32 x 5/16"
2-17
