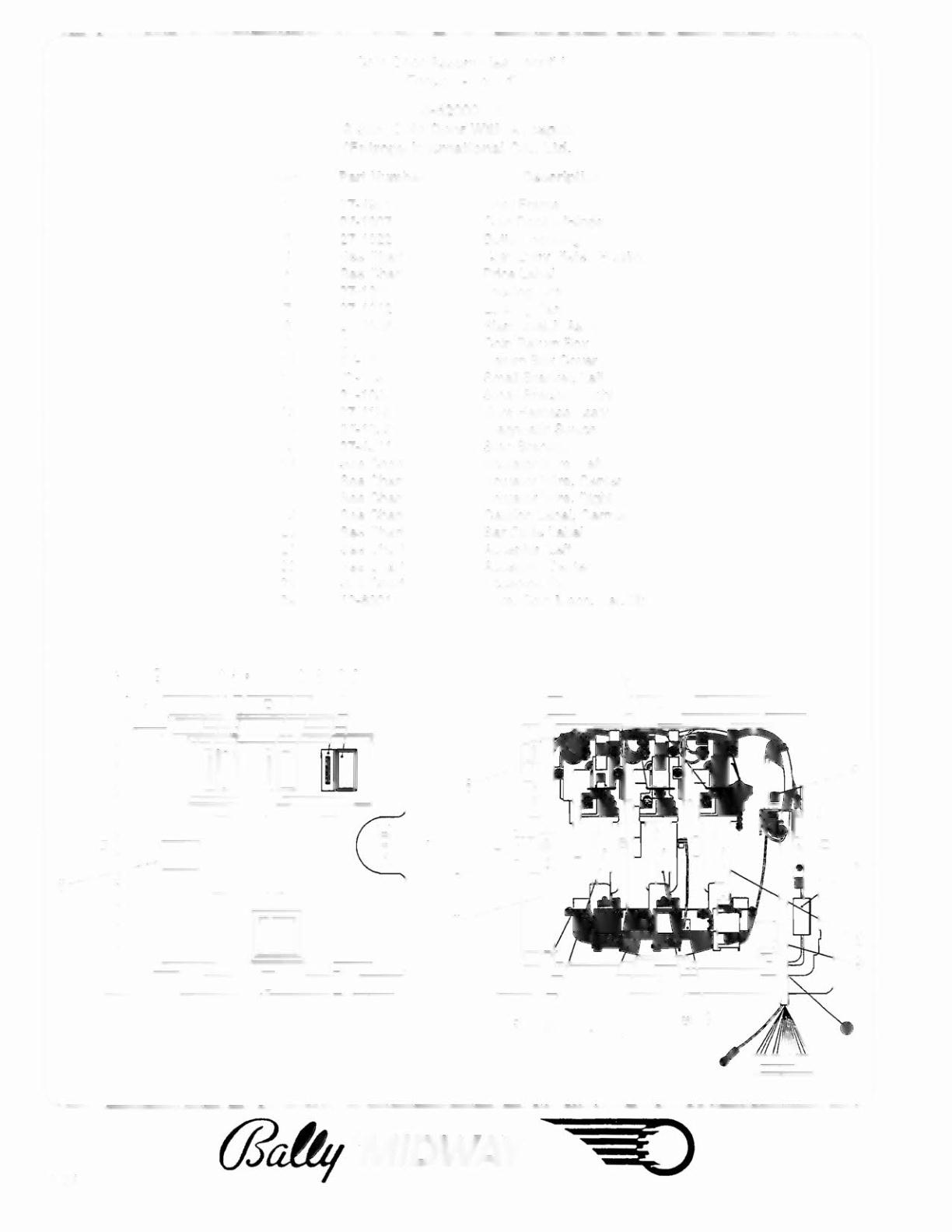

Page 632 - BallyMidway GREY Parts Catalog 16-9562-A

Coin Door Assemblies - conrd
(Foreign - cont'd)
09-6200O-XX
3-Slot Coin Door With Acceptor
(Entropy International Co .., Ltd.)
Item Part Number Description
1 27-4901 Door Frame
2 27-1007 Coin Door w/Hinge
3 27-1022 Button Housing
4 See Chart Coin Entry Plate, Plastic
5 See Chart Price Label
6 27-1011 Locking Ann
7 27-1012 Locking Cam
8 27-1066 Slam Switch Ass'y
9 27-1076 Coin Return Box
10 27-1077 Return Box Cover
11 27-1031 Small Bracket, Left
12 27-1030 Small Bracket, Right
13 27-1123 Wire Harness Ass'y
14 27-1099 Diagnostic Switch
15 27-4921 Step Bracket
16 See Chart Actuator Wi re, Left
17 See Chart ActuaforWire, Center
18 See Chart ActuaforWire, Right
19 See Chart Caution Label, German
20 See Chart Bar Code Label
21 See Chart Acceptor, Left
22 See Chart Acceptor, Center
23 See Chart Acceptor, Right
24 12-6801 Wire, Coin Mech. Ret.Clip
