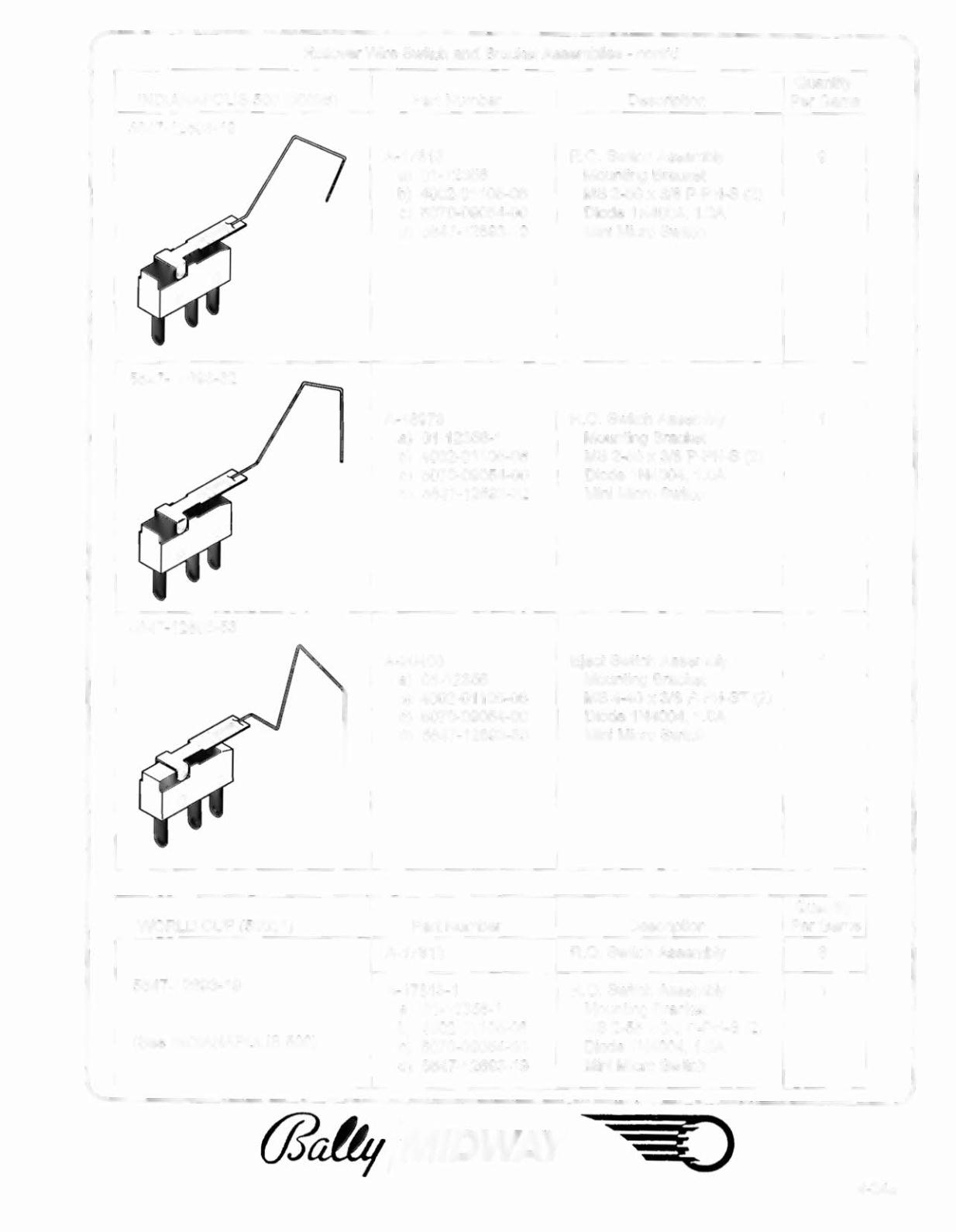

Page 375 - BallyMidway GREY Parts Catalog 16-9562-A

Rollover Wire Switch and Bracket Assemblies - cont'd
INDIANAPOLIS 500 (50026)
5647-12693-19
5647 -12693-32
5647-12693-53
Part Number
A-17813
a) 01-12356
b) 4002-01105-06
c) 5070-09054-00
d) 5647-12693-19
A-18973
a) 01-12356-1
b) 4002-01105-06
c) 5070-09054-00
d) 5647-12693-32
A-20406
a) 01-12356
b) 4002-01105-06
c) 5070-09054-00
d) 5647-12693-53
Description
R O. Switch Assembly
Mounting Bracket
MS 2-56 x 3/8 P-PH-S (2)
Diode 1N4004, 1.0A
Mini Micro Switch
RO. Switch Assembly
Mounting Bracket
MS 2-56 x 3/8 P-PH-S (2)
Diode 1N4004, 1.0A
Mini Micro Switch
Eject Switch Assembly
Mounting Bracket
MS 4-40 x 3/8 P-PH-ST (2)
Diode 1N4004, 1.0A
Mini Micro Switch
Quantity
Per Game
9
1
1
Quantity
WORLD CUP (50031) Part Number Description Per Game
A-17813 RO. Switch Assembly 6
5647-12693-19 A-17813-1 RO. Switch Assembly 1
a) 01-12356-1 Mounting Bracket
b) 4002-01105-06 MS 2-56 x 3/8 P-PH-S (2)
(See INDIANAPOLIS 500) c) 5070-09054-00 Diode 1N4004, 1.0A
d) 5647-12693-19 Mini Micro Switch
@afo//MIDWAY
4-24a
