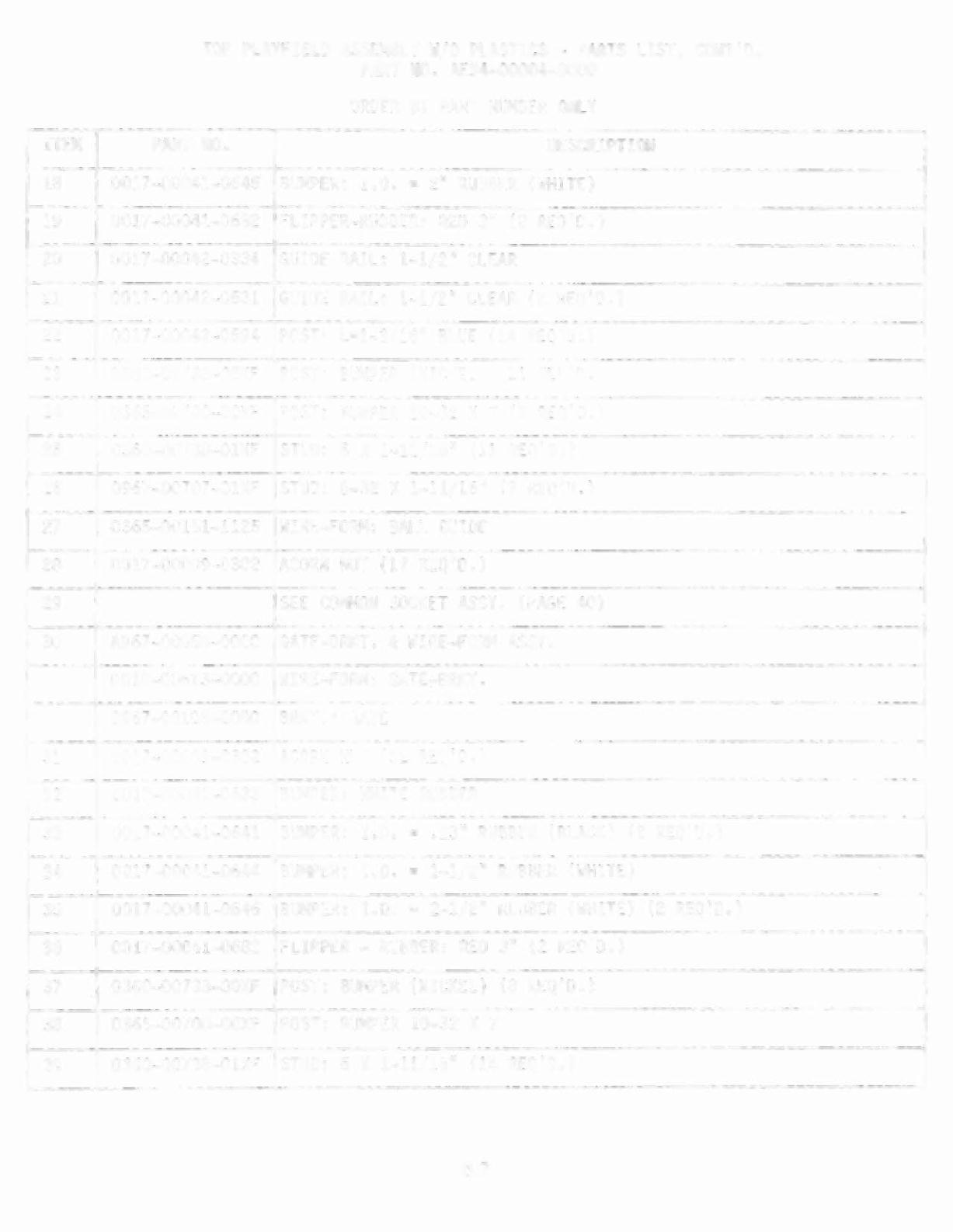

TOP PLAYFIELD ASSEMBLY W/O PLASTICS - PARTS LIST, CONTID.PART NO. AE94-00004-0000
ORDER BY PART NUMBER ONLY
ITEM PART NO. DESCRIPTION
18 0017-00041-0645 BU~1PER: 1.0. = 2" RUBBER (WHITE)
19 0017-00041-0682 FLIPPER-RUBBER: RED 311 (2 REQ'D.)
20 0017-00042-0334 GUIDE RAIL: 1-1/2" CLEAR
21 0017-00042-0531 GUIDE RAIL: 1-1/2" CLEAR (2 REQ'D.)
22 0017-00042-0594 POST: L=1-3/16" BLUE (14 REQ'D.)
23 0360-00733-00XF POST: BUMPER (NICKEL) (11 REQ'D. )
24 0365-00700-00XF POST: BUMPER 10-32 X 7 (2 REO'D.)
25 0360-00738-01XF STUD: 6 X 1-11/1611 (ll REO'D.)
26 0967-00707-01XF STUD: 6~32 X 1-11/1611 (7 REO'D. )
27 0365-00151-1125 WIRE-FORM: BALL GUIDE
28 0017-00009-0302 ACORN NUT (17 REQ'D.)
29 SEE COMMON SOCKET ASSY. (PAGE 40)
30 A967-00058-0000 GATE-BRKT. & WIRE-FORM ASSY.
0010-00613-0000 WIRE-FORM: GATE-BRKT.
0967-00108-0000 BRKT.: GATE
31 0017-00009-0302 ACORN NUT (12 REQ'D.)
32 0017-00041-0633 BU~1PER: WHITE RUBBER
33 0017-00041-0641 BUMPER: 1.0. = .2311 RUBBER (BLACK) (2 REO'D.)
34 0017-00041-0644 BUMPER: 1.0. = 1-1/2" RUBBER (WHITE)
35 0017-00041-0646 Bm1PER: 1.0. = 2-1/211 RUBBER (WHITE) (2 REO I O. )
36 0017-00041-0682 FLIPPER - RUBBER: RED 3" (2 REQ'D.),
37 0360-00733-00XF POST: BUMPER (NICKEL) (8 REQ'D.)
38 0365-00700-00XF POST: BUMPER 10-32 X 7
39 0360-00738-01XF STUD: 6 X 1-11/16" (14 REQ'D.)
6.7
