Page 82 - 1987_BALLY_ASPIRE

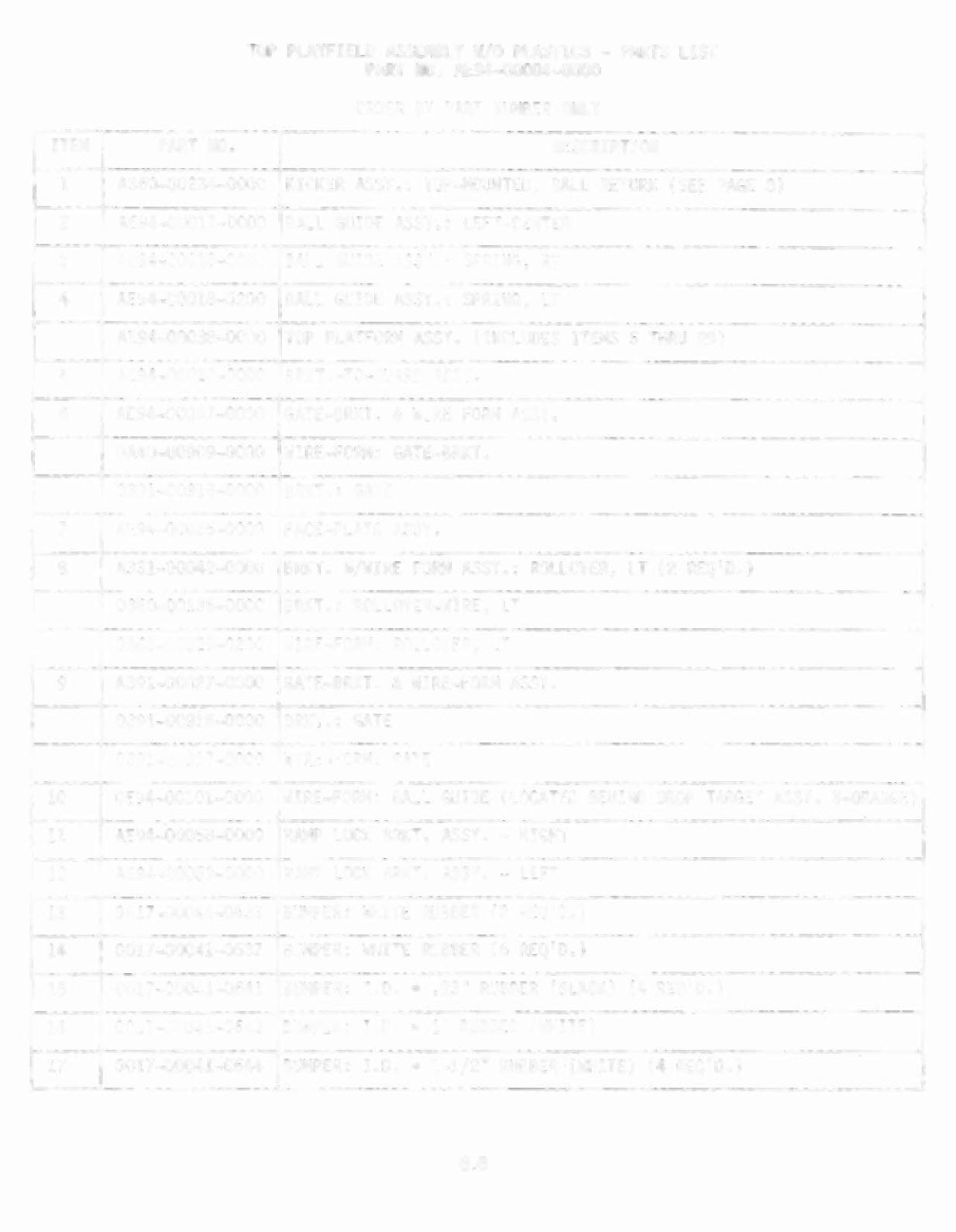

TOP PLAYFIElD ASSEMBLY WIO PLASTICS - PARTS LIST
PART NO. AE94-OOOO4-0000
ORDER BY PART NUr'1BER ONLY
ITEM PART NO. DESCRIPTION
1 A360-00234-0000 KICKER ASSY.: TOP-MOUNTED, BALL RETURN (SEE PAGE 8)
2 AE94-00017-0000 BALL GUIDE ASSY.: LEFT-CENTER
3 AE94-00018-0000 BALL GUIDE ASSY.: SPRING, RT
4 AE94-00018-0200 BALL GUIDE ASSY.: SPRING, LT
AE94-00038-0000 TOP PLATFORM ASSY. (INCLUDES ITEMS 5 THRU 29)
5 AE94-00027-0000 BRKT.-TO-GUARD ASSY.
6 AE94-00047-0000 GATE-BRKT. & WIRE FORM ASSY.
OA40-00909-0000 WIRE-FORr~: GATE-BRKT.
0391-00918-0000 BRKT.: GATE
7 AE94-00055-0000 FACE-PLATE ASSY.
8 A331-00042-0000 BRKT. W/WIRE FORM ASSY.: ROLLOVER, LT (2 REQ I D. )
0360-00135-0000 BRKT.: ROLLOVER-WIRE, LT
0360-00929-0200 WIRE-FORM: ROLLOVER, LT
9 A391-00027-0000 GATE-BRKT. & WIRE-FORM ASSY.
0391-00916-0000 BRKT.: GATE
0391-00917-0000 WIRE-FORr~: GATE
10 OE94-00101-0000 WIRE-FORM: BALL GUIDE (LOCATED BEHIND DROP TARGET ASSY. 3-0RANGE)
11 AE94-00058-0000 RAMP LOCK BRKT. ASSY. - RIGHT
12 AE94-00059-0000 RAMP LOCK BRKT. ASSY. - LEFT
13 0017-00041-0633 BUMPER: WHITE RUBBER (2 REQ I D. )
14 0017-00041-0637 BUMPER: WHITE RUBBER (6 REQ'D.)
15 0017-00041-0641 BU~1PER: 1.0. = .23" RUBBER (BLACK) (4 REQ' D. )
16 0017-00041-0643 BUr~PER: 1.0. = 1" RUBBER (WHITE)
17 0017-00041-0644 BU~4PER: 1. D. = 1-1/2" RUBBER -(WHITE) (4 REQ'D.)
