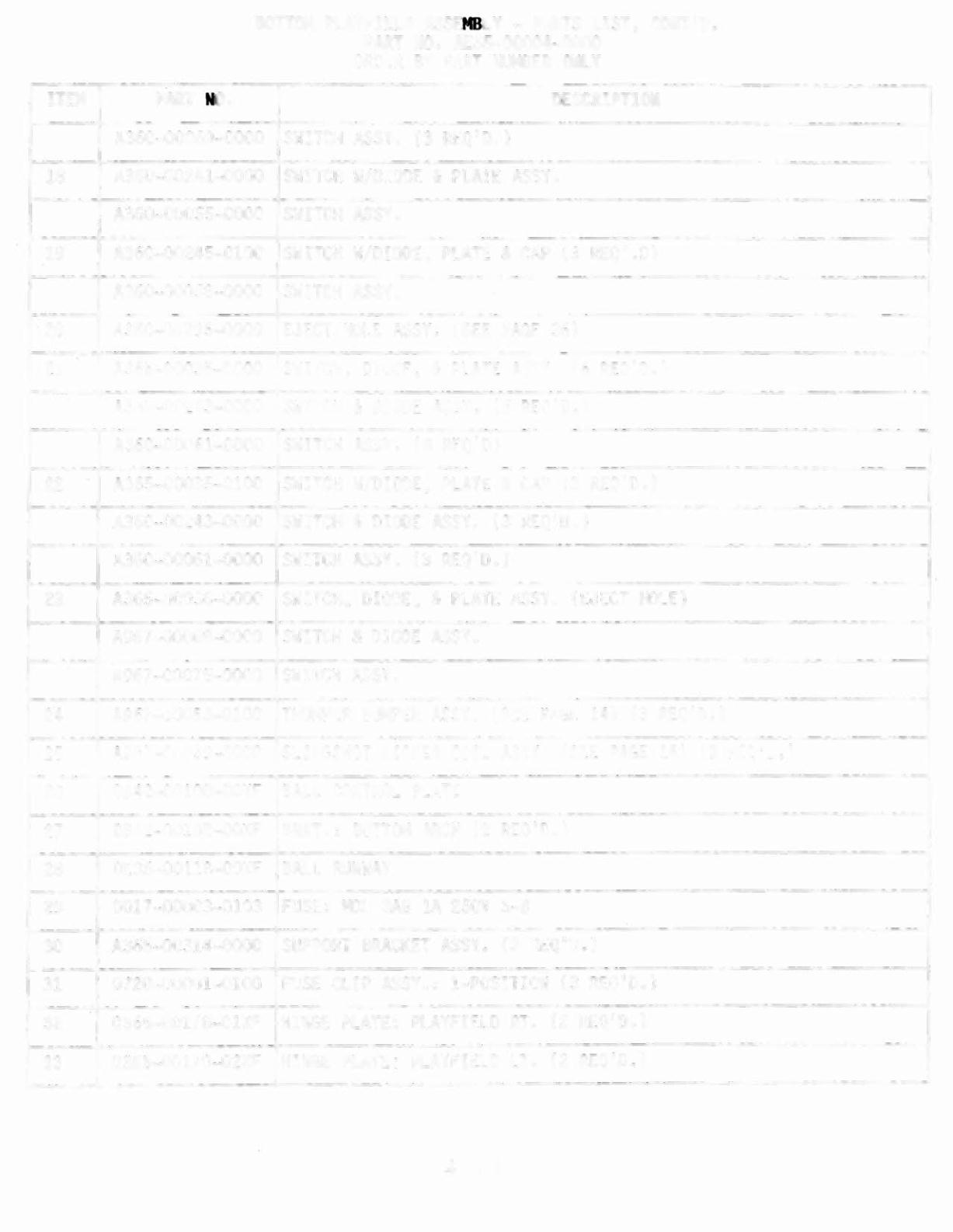

BOTTOM PlAYFIElO ASSEMBLY - PARTS lIST, CONTID.PART NO. AE35-00004-0000
ORDER BY PART NUMBER ONLY
ITEM PART NO. DESCRIPTION
A360-00069-0000 SWITCH ASSY. (3 REO'D.)
18 A360-00241-0000 SWITCH W/DIODE & PLATE ASSY.
A360-0005S-0000 SWITCH ASSY.
19 A360-00245-0100 SWITCH W/DIODE, PLATE & CAP (3 REO'.D)
A360-00058-0000 SWITCH ASSY.
20 A360-0029S-0000 EJECT HOLE ASSY. (SEE PAGE 3S)
21 A365-00035-0000 SWITCH, DIODE, & PLATE ASSY. (6 REQ'D.)
A360-00243-0000 SWITCH & DIODE ASSY. (6 REQ'D.)
A360-00061-0000 SWITCH ASSY. (6 REQ'D)
22 A365-00035-0100 SWITCH W/DIODE. PLATE & CAP (3 REQ' D. )
A360-00243-0000 SWITCH & DIODE ASSY. (3 REQ'D.)
A360-00061-0000 SWITCH ASSY. (3 REQ'D.)
23 A365-00036-0000 SWITCH, DIODE, & PLATE ASSY. (EJECT HOLE)
A967-00068-0000 SWITCH & DIODE ASSY.
A967-00075-0000 SWITCH ASSY.
24 A967-00053-0100 THUMPER BUMPER ASSY. (SEE PAGE 14) (3 REQ'D.)
25 A967-000S9-0000 SLINGSHOT KICKER COIL ASSY. (SEE PAGE 16) {2 REQ'D.}
26 OB42-00100-00XF BALL CONTROL PLATE
27 OB42-00102-00XF BRKT.: BOTTOM ARCH (2 REQ' D. 1
28 OE35-00118-00XF BAll RUNWAY
29 0017 -00003-0103 FUSE: MDL 3AG lA 250V S-B
30 A36S-00314-0000 SUPPORT BRACKET ASSY. (2 REQ' D. )
31 0720-00001-0100 FUSE CLIP ASSY.: I-POSITION (3 REQ'O.)
32 0365-00I70-01XF HINGE PLATE: PlAYFIELD RT. (2 REQ' D. )
33 0365-00170-02XF HINGE PLATE: PLAYFIELO LT. (2 REQ '0.)
4. 1 1
