6. Extend each leg leveler slightly below the leg bottom, so that all four foot pads protrude
approximately the same distance. Remove the cabinet from its support and place it on the floor.
7. Unlock and open the coin door. Move the molding latch lever toward the left side of the game, to
release the front molding. Lift the front molding off the playfield cover glass, return the latch lever to
the right, and close the coin door. Carefully slide the glass downward, until it clears the grooves of
the left and right side moldings. Lift the glass up and away from the game, storing it carefully to avoid
breakage.
8. Place a level or an inclinometer on the playfield surface. Adjust the leg levelers for proper playfield
level (side-to-side). NOTE: It is recommended that these measurements be made ON the playfield,
not the cabinet nor the playfield cover glass. Tighten the nut on each leg leveler shaft to maintain
this setting.

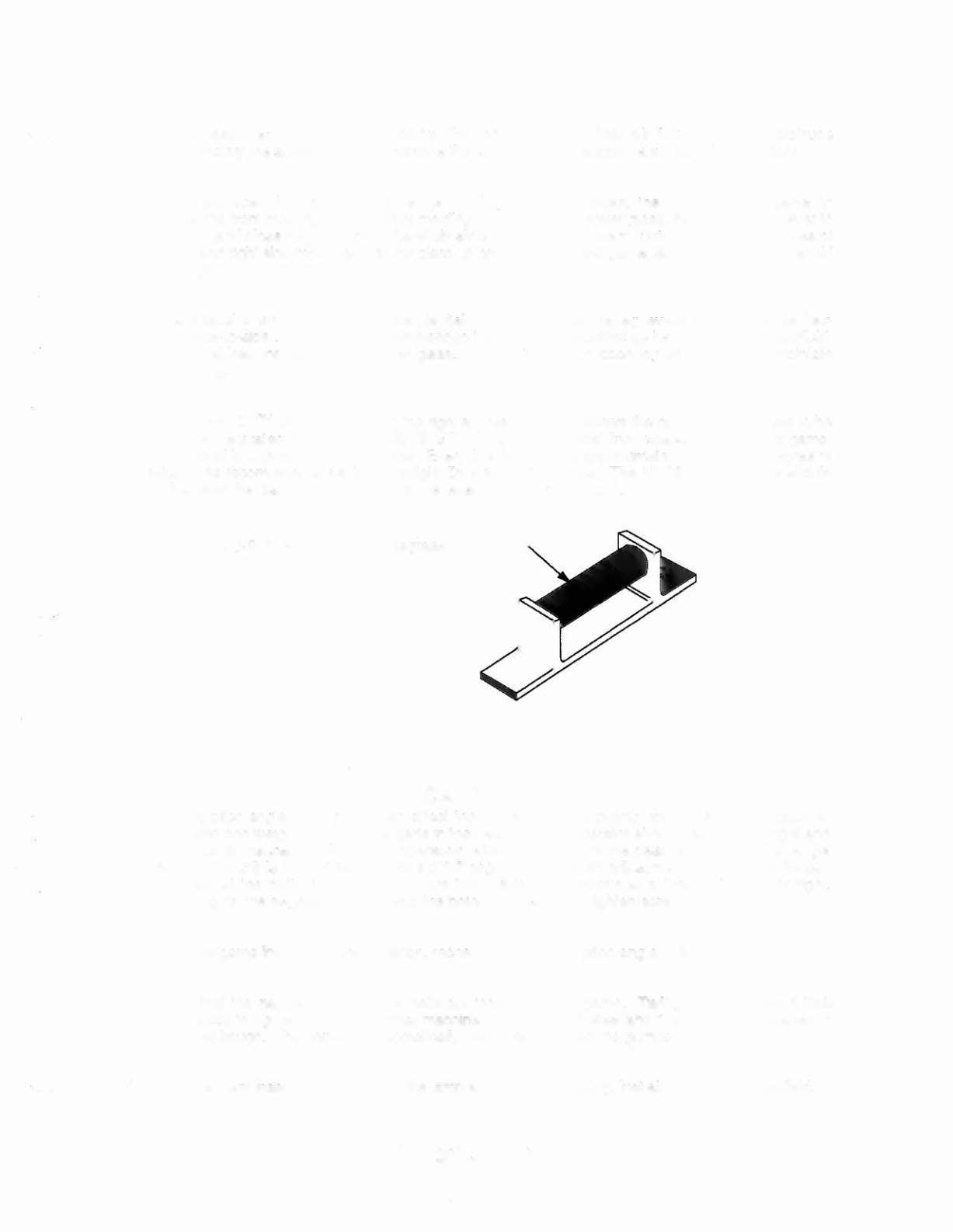

9. The TRU-PITCH™ level is located on the right shooter rail. This allows the playfield pitch angle to be
accurately adjusted WITHOUT REMOVING THE GLASS. The first line (closest to the front of game)
on the level is approximately 6 degrees. Every line thereafter is approximately another 1/2 degree of
pitch. The recommended pitch for Twilight Zone is 61/2 degrees. The NOSE of the bubble should
be between the first and second line on the level (see diagram below).
CAUTION
Playfield pitch angle adjustments can affect the operation of the plumb bob tilt, inside the cabinet.
The plumb bob weight is among the parts in the cash box; the operator should install the weight and
adjust this tilt mechanism for proper operation, after completion of the desired playfield pitch angle
setting. The unit is factory installed for a 61/2 degree angle. If an adjustment is necessary, loosen
the screw at the bottom of the unit. Move the pointer, one groove at a time to the left or right,
depending on the degree desired. Hold the pointer in place and tighten screw.
10. Move the game into the desired location; recheck the level and pitch angle of the playfield.
11. Verify that the
required number
of balls are installed in the game. Twilight
Zone uses 6 balls,
3 in the ball trough and 3 in the gumball machine. All six balls (5 steel and 1white) may be placed in
the lower trough. The game will automatically load three balls into the gumball machine.
_____._/
12. Remove foam insert used to support the lamp assembly in shipping, just above the mini-playfield.
Twilight Zone 1-3
