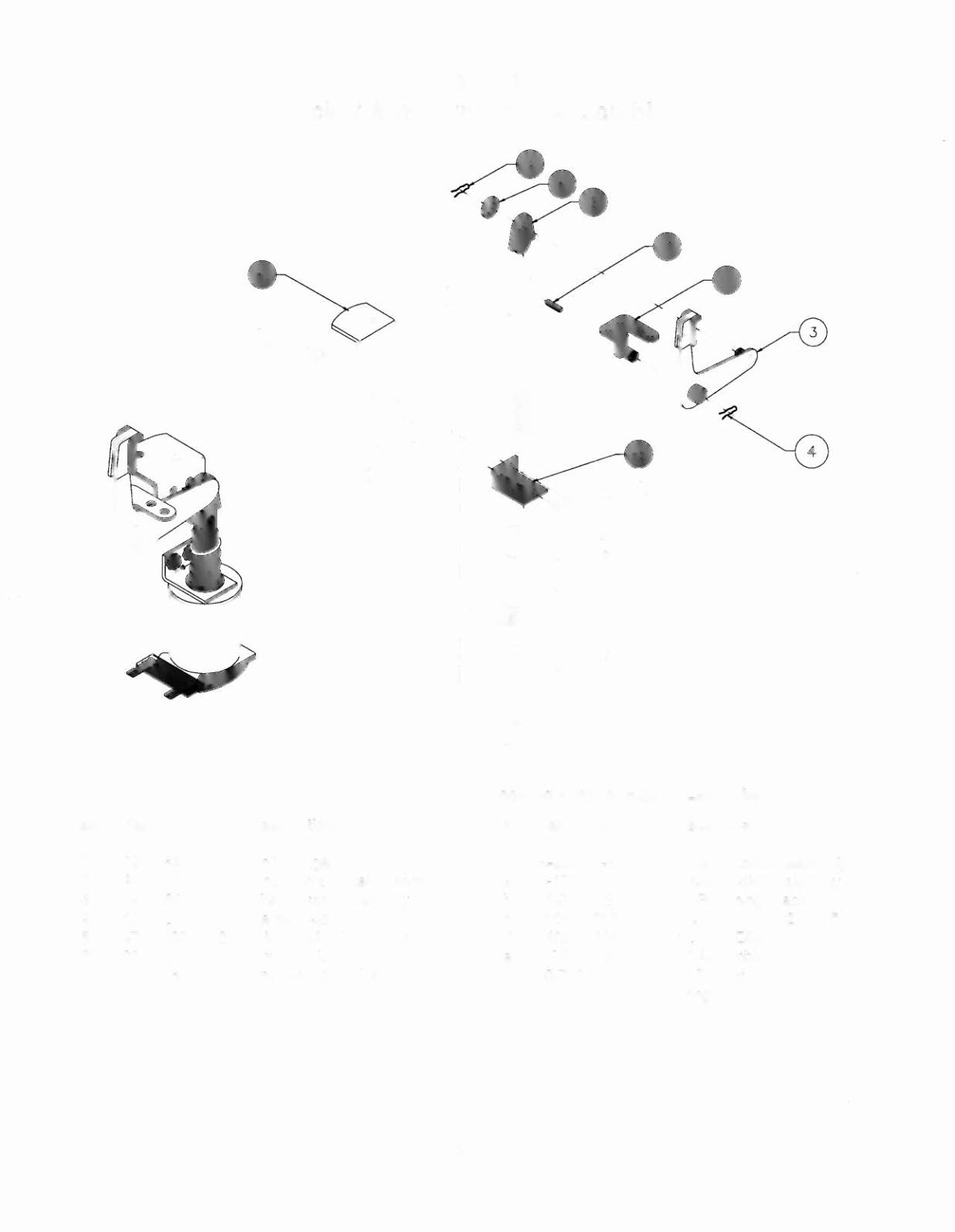

A-17811
Kicker Arm
(Slingshot)
Assembly
I
,
, , , ,
i
, ,
i
i
,
i
!
, ,
l.................
.
I
"
,
"
,
"
I
'.
Associated Parts for Right & Left Kickers:
Item Part Number
Description
Item Part Number
Description
1 02-2364
Coil Plunger
8
B-9362-L-3
Coli & Bracket Assembly
2 A-1781O
Mounting Bracket Assembiy
a) A-17808
Bracket & Stop Assembly
3 A-12664
Kicker Crank Assembly
b) 01-8-508-S
Coil Retaining Bracket
4 12-6227
Hairpin Clip
c) 4006-01017-06 Mach. Screw, 6-32 x 3/8"
5 4700-00030-00 FW, 17/64 x 1/2 x 15ga.
d) 4406-01119-00 Nut, 6-32 ESN
6 03-8085
Armature Link
e) AE-27-1200
Coil Assembly
7 20-8716-5
Roll Pin, 1/8 x 7/16"
f) 03-7066
Coil Tubing
9 10-128
Spring
2-16
