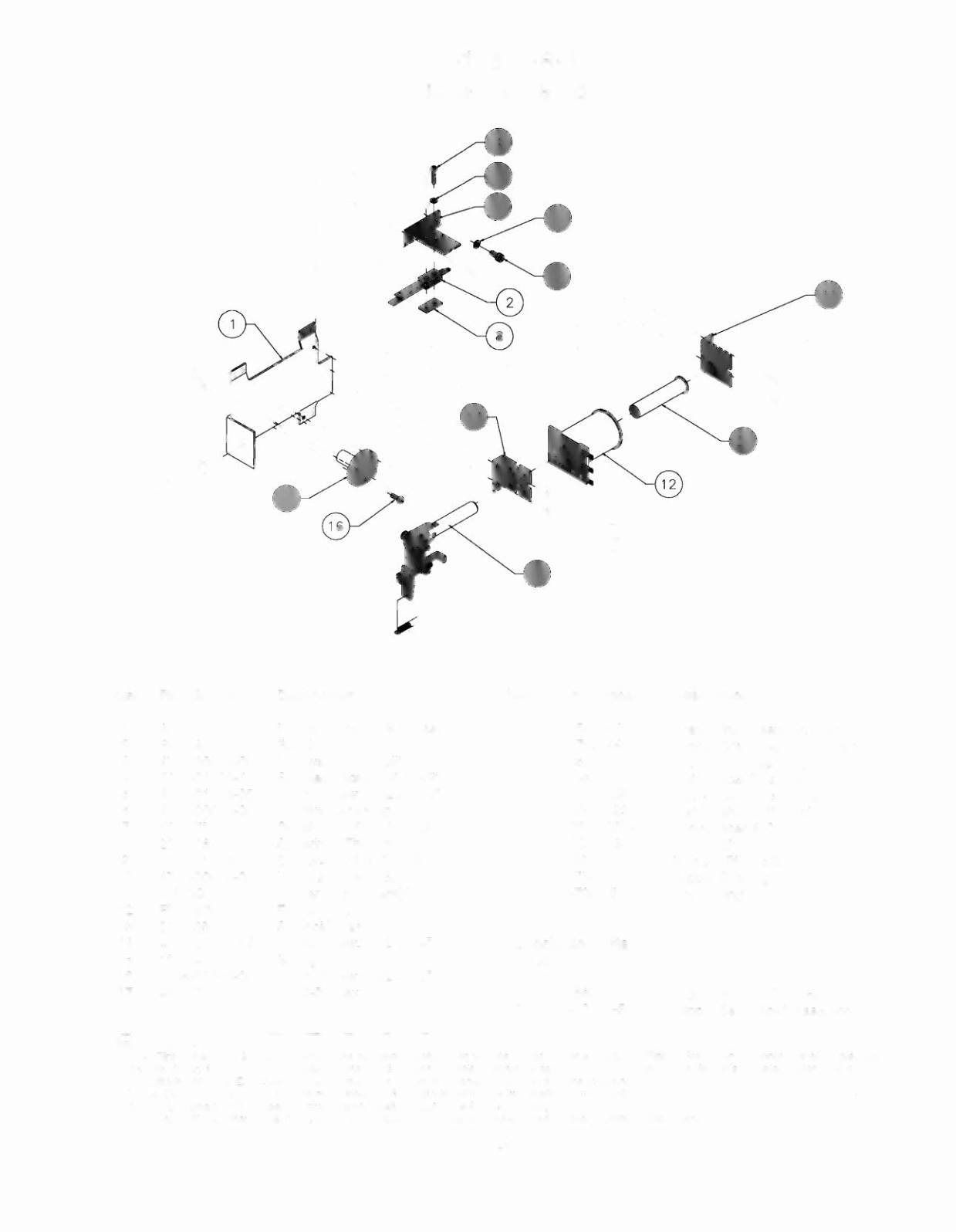

Flipper Assembly
["
I "
r-....
I
.•..,
I
•••••• 1
••••••••
I
"1....
••..
I
I .•...•.
.
I
I
.......•.
I
I
'
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
11
12
18
Item Part Number
Description
Item Part Number
Description
1 A-14877-R
Flipper Bracket - Sub-Assy.
18 A-15848-R
Crank Link Assembly, Right
2 SW-1A-194
Switch Assembly
a) A-17050-R
Flipper Crank Assembly, Right
3 4701-00002-00
Lockwasher #6 Split
b) A-15847
Flipper Link Assembly
4 4105-01019-10
Sh. Metal Screw, #5 x 5/8"
c) 02-4676
Link Spacer Bushing
5 4008-01079-05
Mach. Screw, 8-32 x 5/16"
d) 4010-01086-14
Cap Screw, 10-32 x 7/8"
6 4701-00003-00
Lockwasher #8 Split
e) 4700-00023-00
Flat Washer, 5/8 x 13/64 x 16ga.
7 01-9375
Switch Mounting Bracket
f) 4701-00004-00
Lockwasher #10 Split
8 20-6516
Speednut, Tinnerman
g) 4410-01132-00
Nut 10-32 ESN
9 4010-01066-06 Cap Screw, 10-32 x 3/8"
19 23-6577
Bumper Plug, 5/8"
10 4701-00004-00
Lockwasher # 10 Split
20 03-7568
Flipper Bushing
11 A-12390
Flipper Stop Assembly
21 03-7066-5
Coil Tubing
12 FL-11629
Flipper Coil, Blue
13 01-7695-1
Solenoid Bracket
14 4006-01017-04
Mach. Screw, 6-32 x 1/4"
Associated Parts:
15 10-364
Spring
(Not Shown)
16 4006-01005-06
Mach. Screw, 6-32 x 3/8"
17 4406-01117-00
Nut 6-32 Hex.
21 23-6695
Flipper Rubber Ring, Red
22 20-10110-5
Flipper Bat & Shaft Assembly
Flipper Notes ...
1. Each Flipper Assembly is mounted beneath the playfield. in conjunction with the Plastic Flipper
&
Shaft, and Flipper Rubber on the upper side of the playfield.
2. With the flipper, in the non-activated position, the EO.S. Switch contacts must have
a
gap of .062 (±.015) inch. When flipper is activated switch must close.
3. Any adjustment of the E.O.S. switch must be made at
a
minimum distance of 0.25 inch from the switch body.
4. Longer blade of EO.S. switch must be made straight. Gap adjustment is done by adjusting shorter blade.
5. All moving elements of the assembly must operate freely without any evidence of binding.
6. Apply Loctite
™
245
when reattaching screws to the Flipper Stop Assembly, the Solenoid Bracket, and the Flipper Bushing,
2-15
