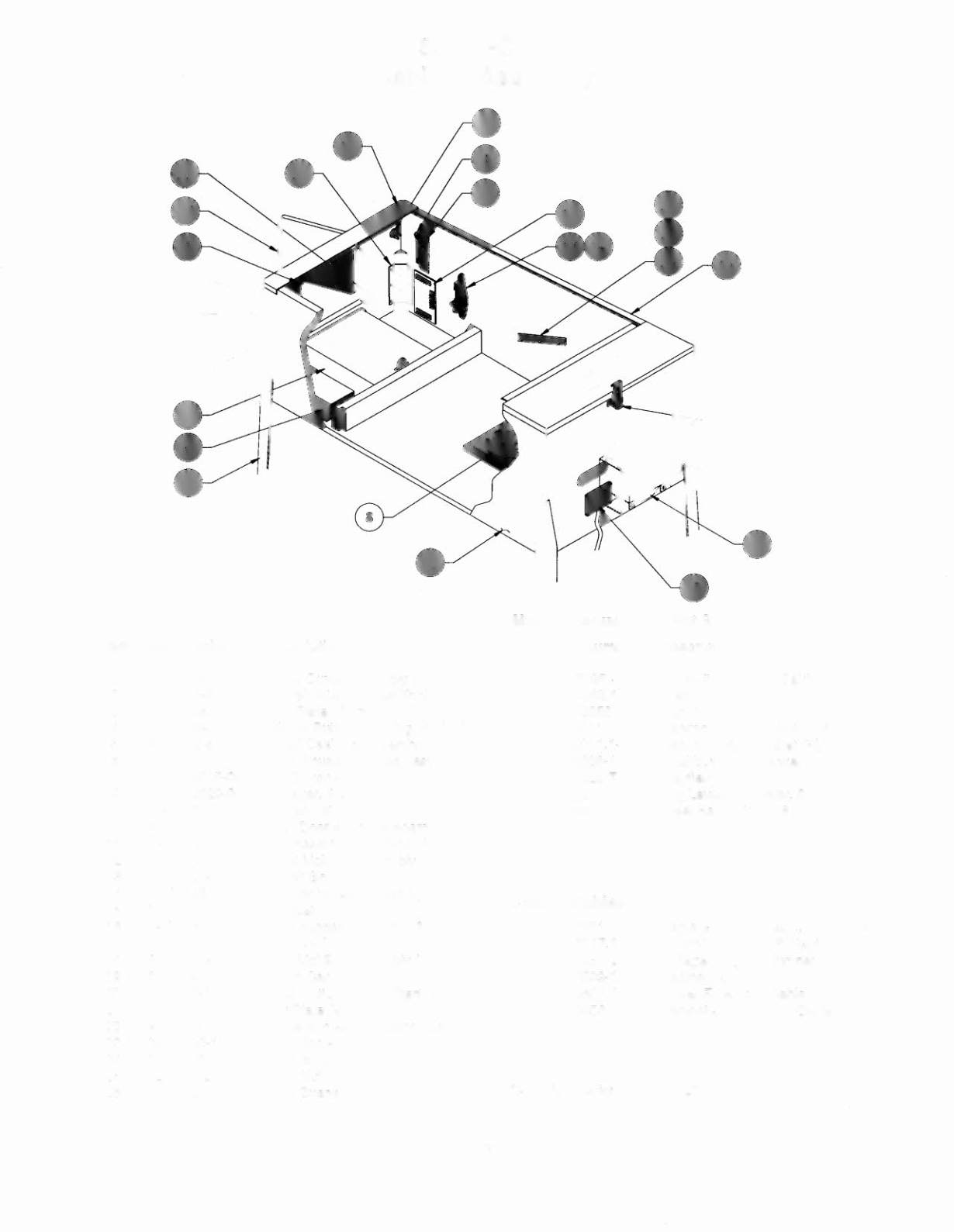

50047-CAB
Cabinet Assembly
Miscellaneous Parts
(Not Shown)
Item Part Number
Description
Part Number
Description
1 A-16773-1
Lever Guide Assembly
A-17195
Tilt Switch Assy. w/Cable
2 A-17730-3
Ball Shooter w/Silver Knob Assy.
A-19562.1
Stay Arm Assembly
3 01-13936
Drip Plate - Narrow
01-12352
Clip Bracket
4 A-16883-4
Flipper Button w/Spring, Red (2)
01-9011.1-L
Backbox Mtg. Bracket, Left
5 A-20729-5
4-Ball Cashbox Assembly
01-9011.1-R Backbox Mtg. Bracket, Right
6 A-17540-1
Univ. Power Interface Assy.
01-6389-1
Cashbox Lock Bracket
7 5610-14515-00 WPC Transformer
08-7028-T
Playfield Glass
8 5555-12929-00 Speaker, 4n, 6", 25w
08-7377
Leg Leveler Adjuster, 3"
9 20-9347
Toggle Latch
20-6500
Steel Ball, 1-1/16" (6)
10 A-20580
Coin Door Interface Board
11 A-19514
Leg Assembly, Chrome (4)
12 D-12615
Front Molding Assembly
13 20-6502-A
Plumb Bob
14 04-10346
Tilt Mechanism Assembly
Cabinet Cables
15
Cordset
16 A-17316
Opto Flipper Assembly (2)
A-20201
Cable
&
Jumper Assy., Coin Door
17 01-10714
Line Cord Cover
H-17217.1
Plumb/Bob Mech. Protect Cable
18 A-12359-3
Side Molding Assembly (2)
H-17837-2
Voltage Program Jumper Cable
19 11-1314
Wood Cabinet
H-20599-1.1
Cabinet Cable
20 20-9663-1
Push Button w/Sw.,
Start
(Clear)
H-19601-1
Power Extension Cable
21 01-11400
Leg Plate (4)
H-20856
Cabinet Switch/Lamp Cable
22 A-18249-1
Cable
&
Interlock Switch Assy.
23 09-61000-1
Coin Door-U.S.A.
24 01-11408
Plate Spacer (2)
25 02-4329-2
Pivot Nut, 11/16" (4)
26 02-4352
Pivot Bushing (2)
• See Application Chart p.2-29.
2-3
