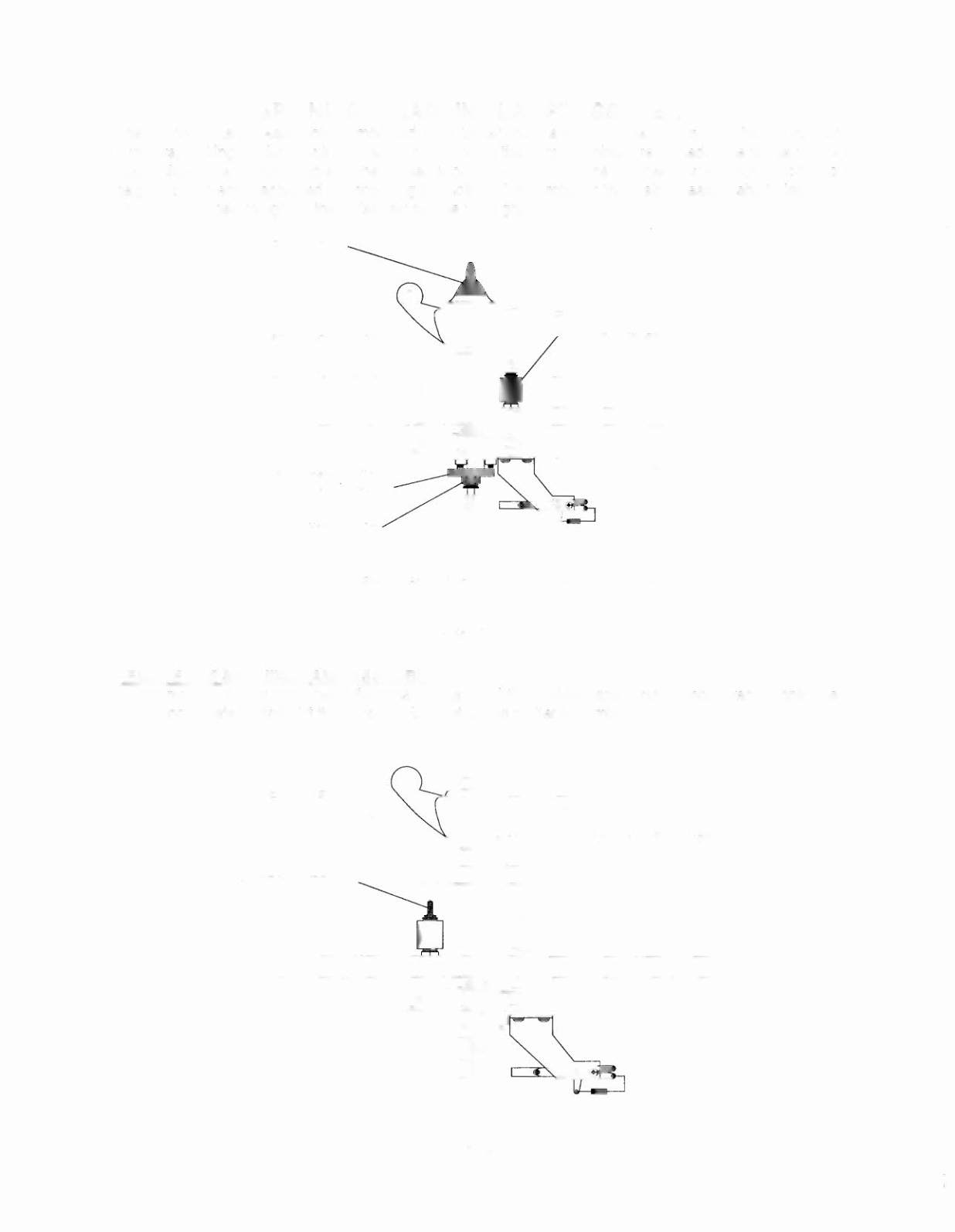

SPINNING "ALADDINS LAMP" ASSEMBLY
The Spinning Lamp Assembly is mounted from under the playfield. Balls in play can hit the rubber
bumpers, making the lamp spin and score points when the lamp switches are closed. The whole unit is
easily cleaned and serviceable. The platter should be flush with the playfield for smooth action and
height adjustment is achieved by loosening the collar (1) and rotating the main threaded shaft piece (2)
up or down. Then re-tighten the collar with needle nose grips.
Molded Lo np
Main sh a ft
(2)
Metal
suppor t plate
AMber P latter
Assy ,
Adju s tMent
Co llar (1)
(Mus t Be T ight .)
GJ, Lo np Assy ,
Switch Ac t.uc to r
Swit ch AsseMbly
Si de V iew
REMOVE THE SPINNING LAMP ASSEMBLY
1) To remove the Lamp, loosen the nuts (2) that hold the molded lamp and support bracket onto the
support posts. Gently lift the lamp and bracket off the platter assembly.
Support posts
Brocket
1-52
