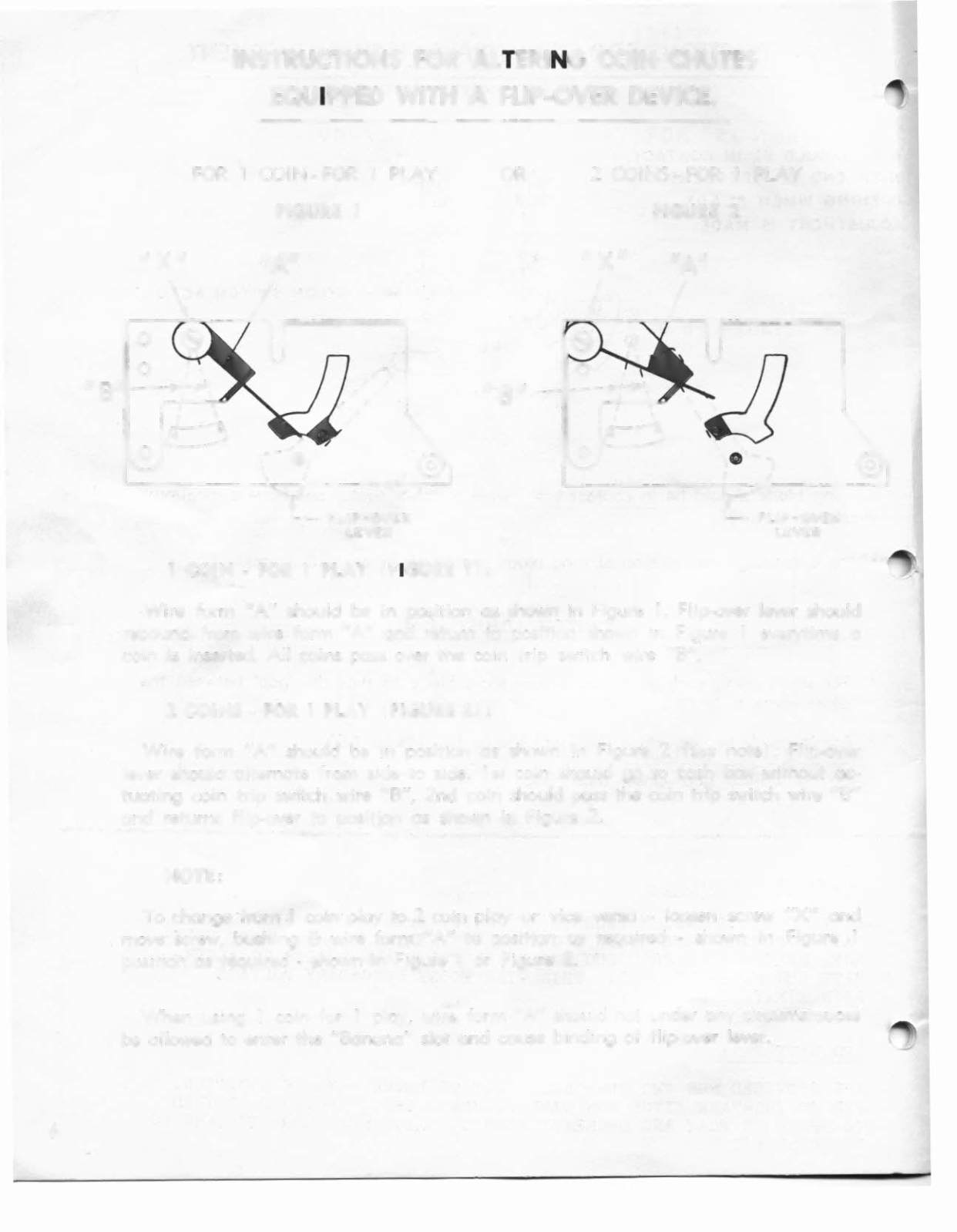

INSTRUCTIONS FOR ALTERING COIN CHUTES
EQUIPPED WITH A FLIP-OVER DEVICE.
FOR 1 COIN- FOR 1 PLAY
FIGURE 1
OR
2 COINS - FOR 1 PLAY
FIGURE
2
" X
II
II
X"
"A"
"A"
o
o
"B"
I
b
" 7
I -. ...~( "
\
\
,
FLIP~OVER
LEVER
FLIP-OVER
LEVER
1 COIN - FOR 1 PLAY (FIGURE
n :
Wire form
"A"
should be in position as shown in Figure 1. Flip -overlever should
rebound from wire form "A" and return to position shown in Figure 1 everytime a
coin is inserted. All coins pass over the coin trip sw itch wire
"8".
2 COINS - FOR 1 PLAY (FIGURE 2):
Wire form
"A"
should be in position as shown in Figure 2 (see note) . Flip-over
lever should alternate from side to side. 1st coin should go to cash box without ac-
tuating coin trip switch wire "8", 2nd co in should passthe coin trip switch wire "8"
and returns flip-over to pos itionas shown in Figure
2.
NOTE:
To change from 1 coin play to 2 coin play or vice versa - loosen screw
"X"
and
move screw, bushing & wire form "A" to posit ionas required - shown in Figure .l
position as required - shown in Figure 1 or Figure 2.
When using 1 coin for 1 play, wire form
"A"
should not under any circurnstcnces
be allowed to enter the "Banana" slot and cause binding of flip-over lever..
