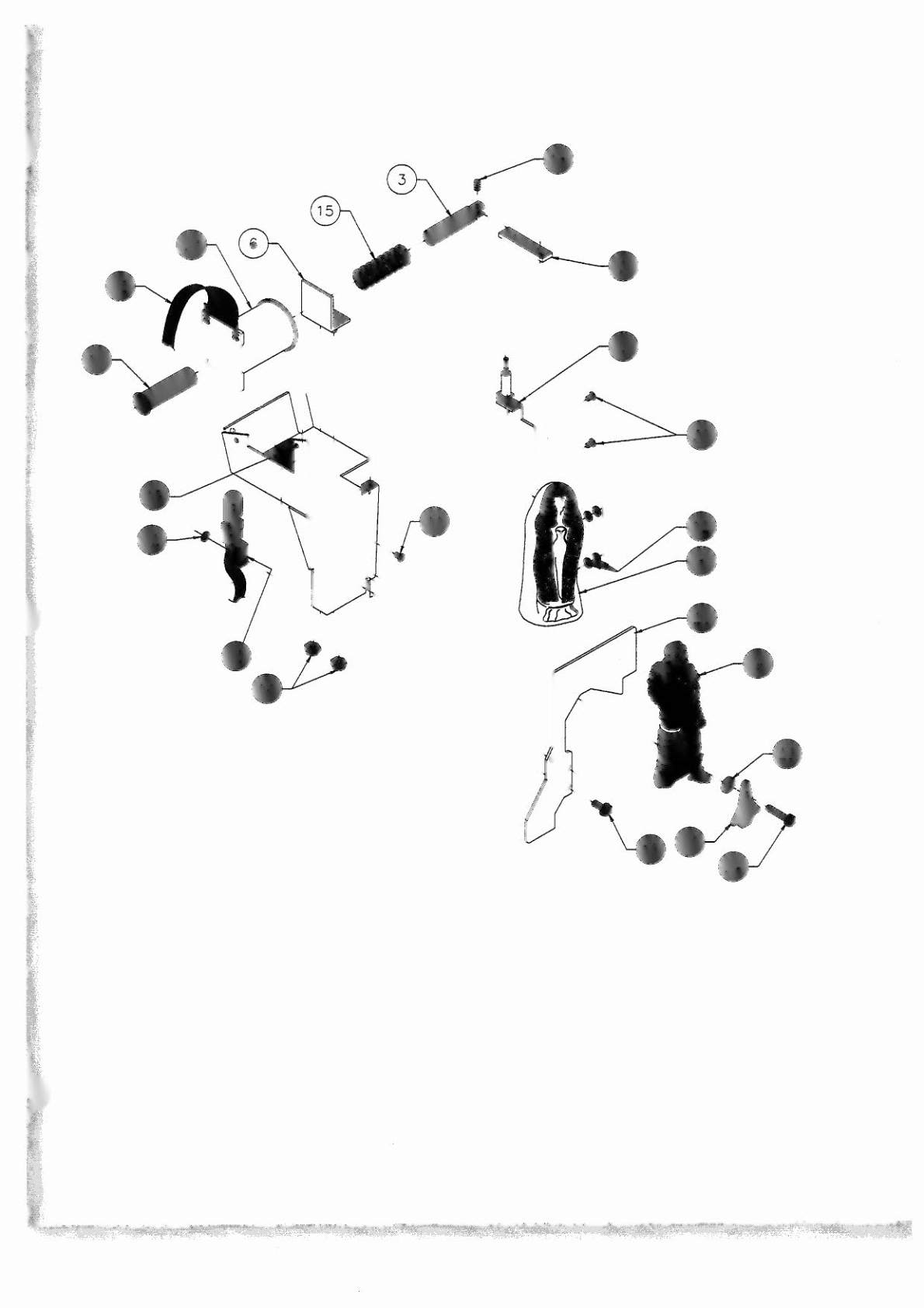

A..22302 Mummy Assembly
Item Part Number
Description
1 04-11181.1
Mummy Main Bracket
2 01-14854
Link Arm
3 02-5449
Armature Shaft
Item Part Number
Description
4 02-5451
Hinge Pin
5 04-11190.1
Door Bracket
16 20-937()"1
Roll Pin: 5/32 x 7/16"
6 04-1 091 ()"1
Bracket 5/8" Coil Ctr.
17 03-7066
Coil Tubing: 1-3/4"
7 20-8712-12
E-Ring, 1/8" Shaft (2)
18 H-22446
Cable
8 03-9865.1
Mummy Coffin
19 03-9454
Ty-Wrap
9 03-9864
Mummy Figure
20 31-3219-11A Playfield Plastic
10 A-17802
Socket
&
Bulb Assy. (#906)
21 AE-27-1200
Coil
11 07-6688-18N Rivet
22 31-3219-38
Playfield Plastic
12 4700-00003-00 FW: 1/8 x 9/32 x 21 gao (5)
23 4700-00011-00 FW: 11/64 x 7/16 x 16ga.
13 4008-01113-06 Mach. Screw: 8-32 x 3/8"
24 4008-01168-12 Mach. Screw: 8-32 x %"
14
4408-01119-00 Nut #8-32 ESNA (2)
25 23-6842
Rubber Pad
15 10-399
Spring
26 07-6688-22N Rivet: 5/16 x 1/8" (2)
