Item Part Number
Description
~j
18
A-15848-R
Crank Link Assembly, Right
a)
A-17050-R
Flipper Crank Assembly, Right
1.
01-11764-R
Flipper Crank, Right
2.
4700-00107-01 Mod Crank Washer
3.
RM-23-06
H.S. Tubing, W'
Item Part Number
Description
4.
4010-01066-20 MS, 10-32 x 1-1/4"
5.
4410-01127-00 Nut, 10-32 Hex.
1 B-13104-R
Flipper Base Assembly, Right
6.
4700-00107-00 FW, 13/64 x 5/8 x 12ga.
2 SW-1A-194
Switch Assembly
7.
4701-00004-00 Lockwasher #10 Split
3 4701-00002-00
Lock Washer #6 Split
8.
01-9376
Spring Retainer Bracket
4 4105-01019-10
Sh. Metal Screw, #5 x 5/8"
b)
A-15847
Flipper Link Assembly
5 4008-01079-05
Mach. Screw, 8-32 x 5/16"
c)
02-4676
Link Spacer Bushing
6 4701-00003-00
Lock Washer #8 Split
d)
4010-01086-14 Cap Screw, 10-32 x 7/8"
7 01-9375
Switch Mounting Bracket
e)
4700-00023-00 Flat Washer, 5/8 x 13/64 x 16ga.
8 20-6516
Speednut, Tinnerman
f)
4701-00004-00 Lock Washer #10 Split
9 4010-01066-06
Cap Screw, 10-32 x 3/8"
g)
4410-01132-00 Nut 10-32 ESN
10 4701-00004-00
Lock Washer #10 Split
19
23-6577
Bumper Plug, 5/8"
11 A-12390
Flipper Stop Assembly
20
03-7568
Flipper Bushing
12 FL-11629
Flipper Coil, Blue
21
03-7066-5
Coil Tubing
13 01-7695-1
Solenoid Bracket
14 4006-01 017-04 Mach. Screw, 6-32 x 1/4"
Associated Parts:
15 10-364
Spring
(Not Shown)
16 4006-01005-06
Mach. Screw, 6-32 x 3/8"
17 4406-01117-00
Nut 6-32 Hex.
23-6695
Flipper Ring
20-10110-5
Flipper Bat w/Shaft
Flipper
Notes ...

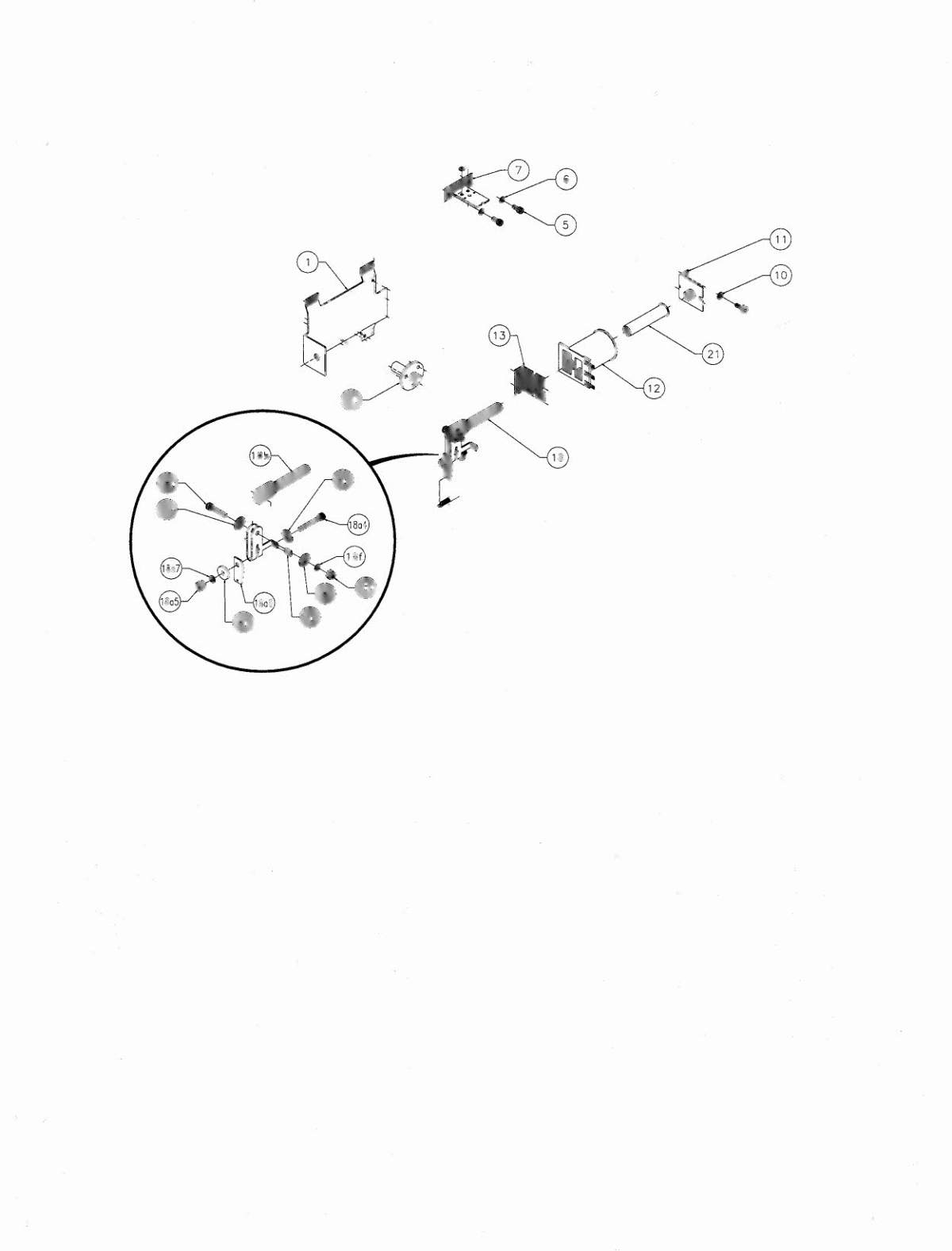

1. Each Flipper Assembly is mounted beneath the playfield, in conjunction with the Plestic Flipper
&
Shaft, and Flipper Rubber on the upper side of the playfield.
2. With the flipper, in the non-activated position, the
Eo.S.
Switch contacts must have
a
gap of .062 (±.015) inch. When flipper is activated switch must close.
3. Any adjustment of the
EO.S.
switch must be made at
a
minimum distance of 0.25 inch from the switch body.
~
4.
Longer blade of
EO.S.
switch must be made straight. Gap adjustment is done by adjusting shorter blade.
5. All moving elements of the assembly must operate freely without any evidence of binding.
6. Apply Loctite
™
245
when reattaching screws to the Flipper Stop Assembly, the Solenoid Bracket, and the Flipper Bushing.
