A..15849 ..L-2

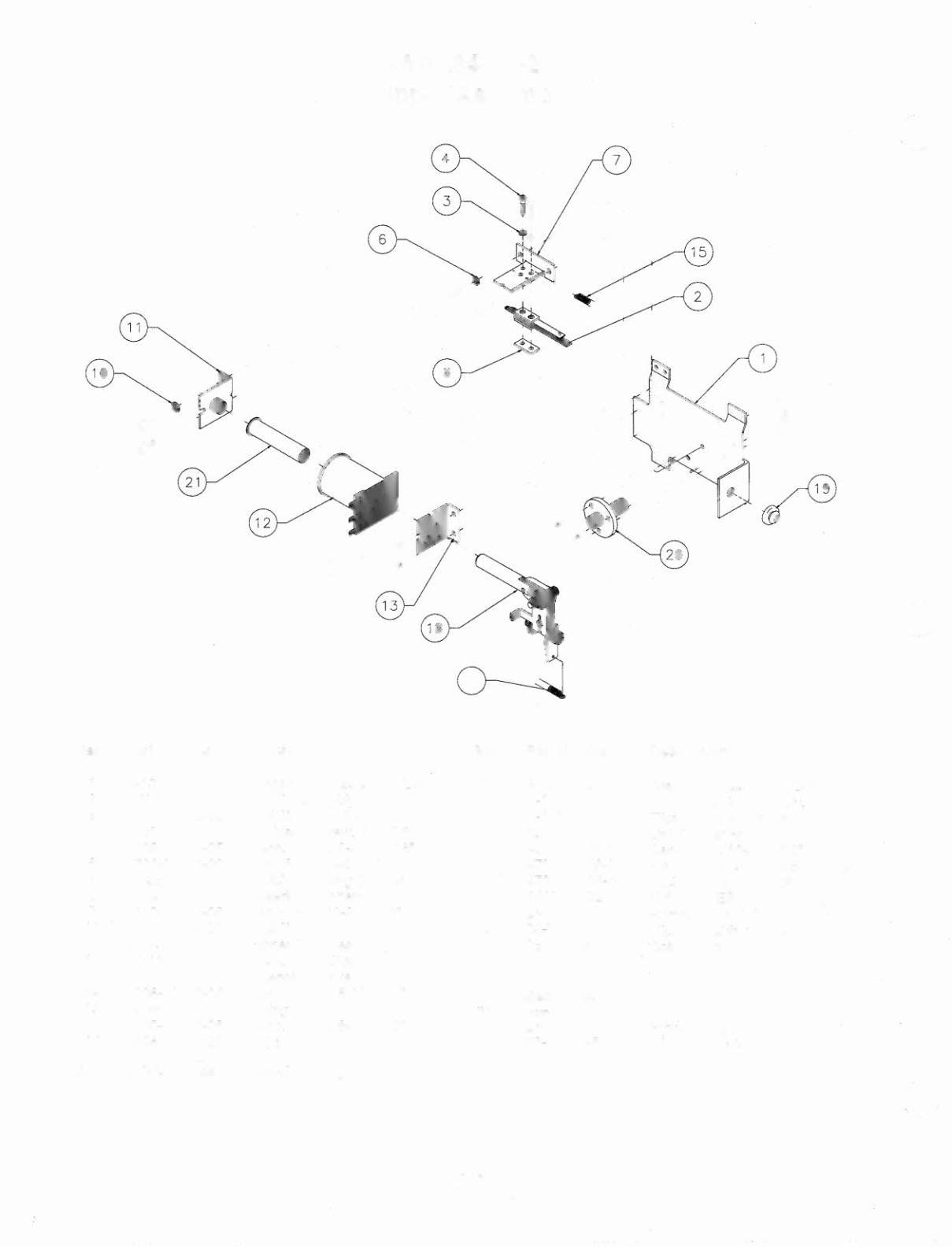

Flipper Assembly
<:
REF.
Item Part Number
Description
Item Part Number
Description
1 B-13104-L
Flipper Base Assembly, Left
*18 A-15848-L
Crank Link Assembly, Left
2 SW-1A-194
Switch Assembly
a) A-17050-L
Flipper Crank Assembly, Left
3 4701-00002-00
Lock Washer #6 Split
b) A-15847
Flipper Link Assembly
4 4105-01019-10
Sh. Metal Screw, #5 x
5/8"
c)
02-4676
Link Spacer Bushing
5 4008-01079-05
Mach. Screw, 8-32 x
5/16"
d) 4010-01086-14
Cap Screw, 10-32 x
7/8"
6 4701-00003-00
Lock Washer #8 Split
e) 4700-00023-00
Flat Washer,
5/8
x
13/64
x 16ga.
7 01-9375
Switch Mounting Bracket
f)
4701-00004-00
Lock Washer #10 Split
8 20-6516
Speednut, Tinnerman
g) 4410-01132-00
Nut 10-32 ESN
9 401 0-01 066-06 Cap Screw, 10-32 x
3/8"
19 23-6577
Bumper Plug,
5/8"
10 4701-00004-00
Lock Washer #10 Split
20 03-7568
Flipper Bushing
11 A-12390
Flipper Stop Assembly
21 03-7066-5
Coil Tubing
12 FL-11629
Flipper Coil, Blue
13 01-7695-1
Solenoid Bracket
14 4006-01017-04
Mach. Screw, 6-32 x
1/4"
Associated Parts:
15 10-364
Spring
(Not Shown)
16 4006-01005-06
Mach. Screw, 6-32 x
3/8"
23-6695
Flipper Ring
17 4406-01117-00
Nut 6-32 Hex.
20-10110-5
Flipper Bat wlShaft
*
See page
2-15
for assembly detail drawing.
2-14
