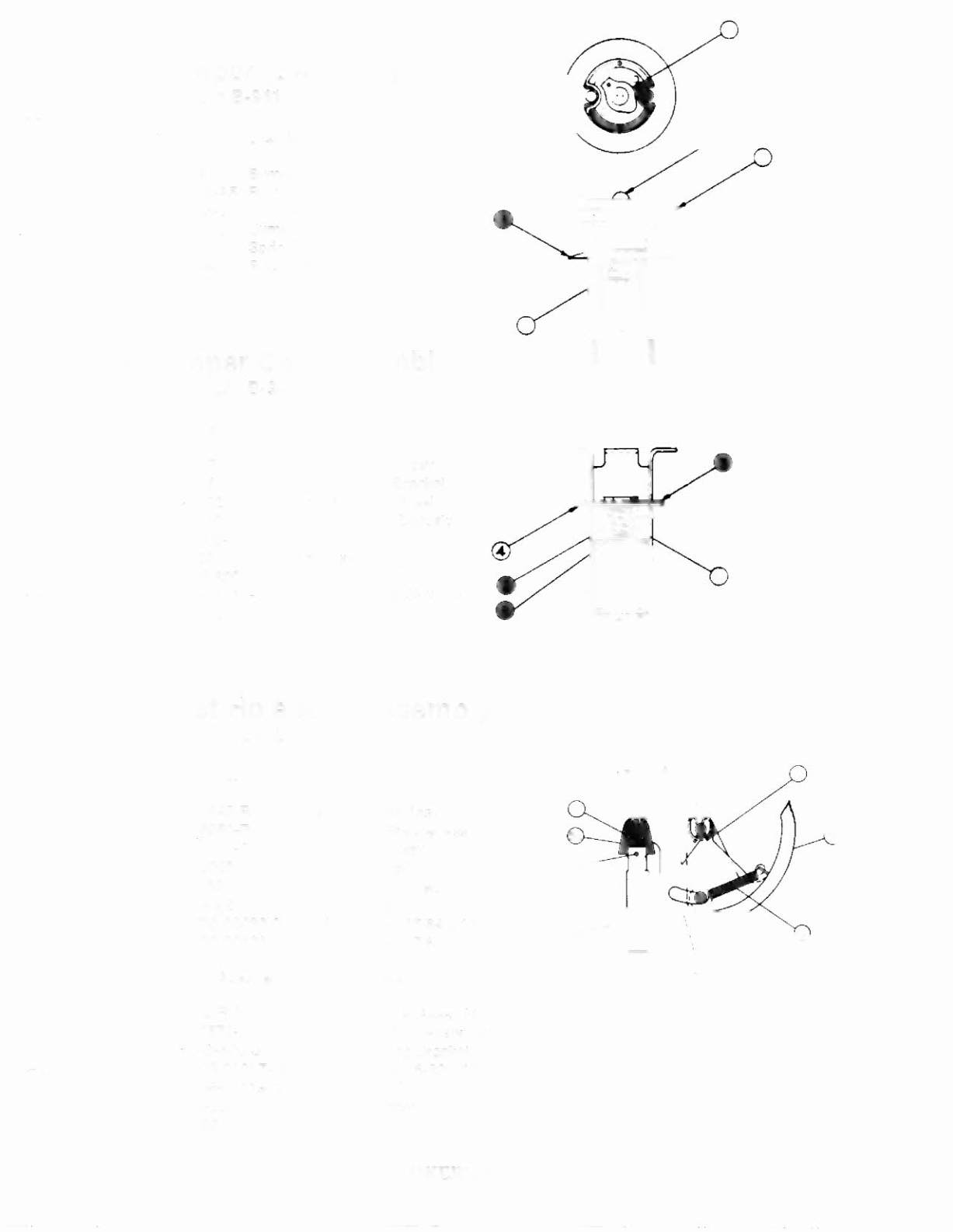

Jet Bumper (Lwr, R, L)
pin 8-9414-2
.--.
Item Part No.
Description
1 A-4754
Bumper Ring Assy
2 03-6009-A5 Bumper Base-Wht
3 03-6035-6 Bumper Water-Yel
4 03-7443-5 Bumper Body-Wht
5 10-7
Spring-Jet Bumper
6 A-11199
Socket & Bulb Assy
2
Jet Bumper Coil Assembly
pIn 8-9415-1
-.
Item Part No.
Description
8-7417
Bracket & Stop Assy
2 01-1747
Coil Retaining Bracket
3 01-5492
Armature Link, Steel
4 01-5493
Armature Link, Bakelite
5 02-3406-1
Coil Plunger
6 10-326
Armature Spring
7 AE-23-800
Coil Assy
r>
8 4006-01 017-04 Mach. Screw, 6-32 x
1/4
9 03-7066
Coil Tubing
TR Eject Hole Arm Assembly
pIn 8-9361-R-6
Item Part No.
1
A-6949-R
2 A-6950-R
3 A-7471-R
4 A-8050
5
10-320
6 12-6227
7 4700-00030-00
8
4700-00103-00
Description
Spring Plate Assy
Mounting Bracket Assy
Eject Cam Assy
Plunger Assy
Spring-Eject (Red)
Hairpin Clip
Flat Washer,
17/64
x
112
x
15
gao
Flat Washer,
17/64
x
1/2
x 28
gao
Associated Parts for
TR Eject
B-9362-R-l
B-7572-1
01-8-508-S
4006-01017-06
4406-01119-00
AE-23-800
03-7066
Coil & Bracket Assembly
Bracket
&
Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32
x
3/8
Nut, 6-32 ESN
Coil Assembly
Coil Tubing
