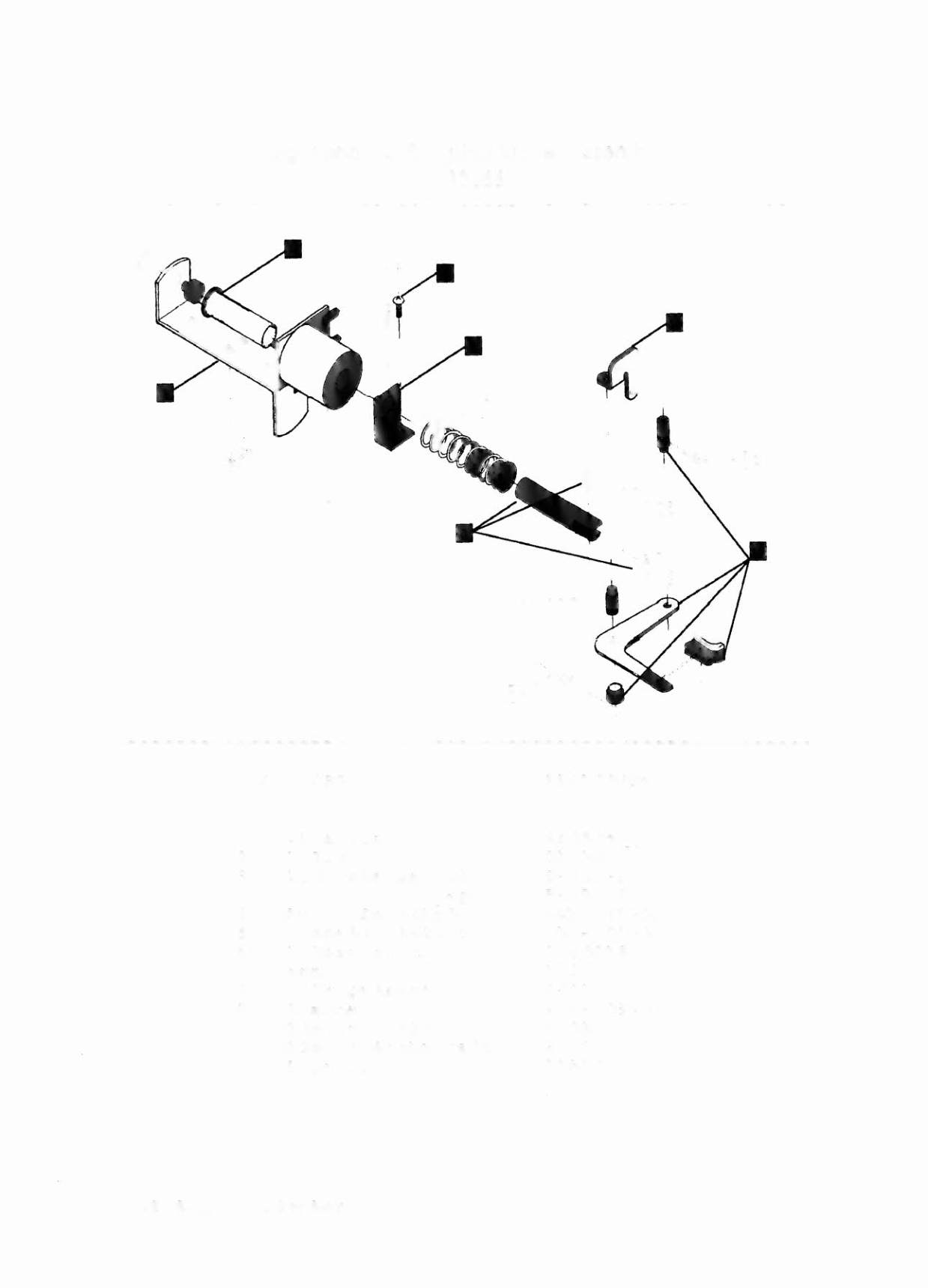

Right and Left Slingshot Kicker Assembly
8-12665
[DJ---
I
~.
ITEM DESCRIPTION
PARTNUMBER
1 Coil Assembly
AE-26-1500
2 Coil Tubing
03-7066
3 Coil
&
Bracket
Asay:
Left
B-11203- L-1
Right
B-11203-R-1
4 Nut, 6-32 (Elastic Stop Nut)
4406-01119-00
5 Machine Screw, 6-32x3/8
4006-01017-06
6
Coil Retatntng Bracket
01-8-508-5
7 Spring
10-128
8 Coil Plunger Assembly
A-5l03
9 Flatwasher
4700-00030-00
10 Kicker Arm Assembly
A-12664
11 Kicker Arm Mounting Bracket
A-5653
12 Hairpin Clip
12-6227
2-18 SUngshot Kicker
ABsy
