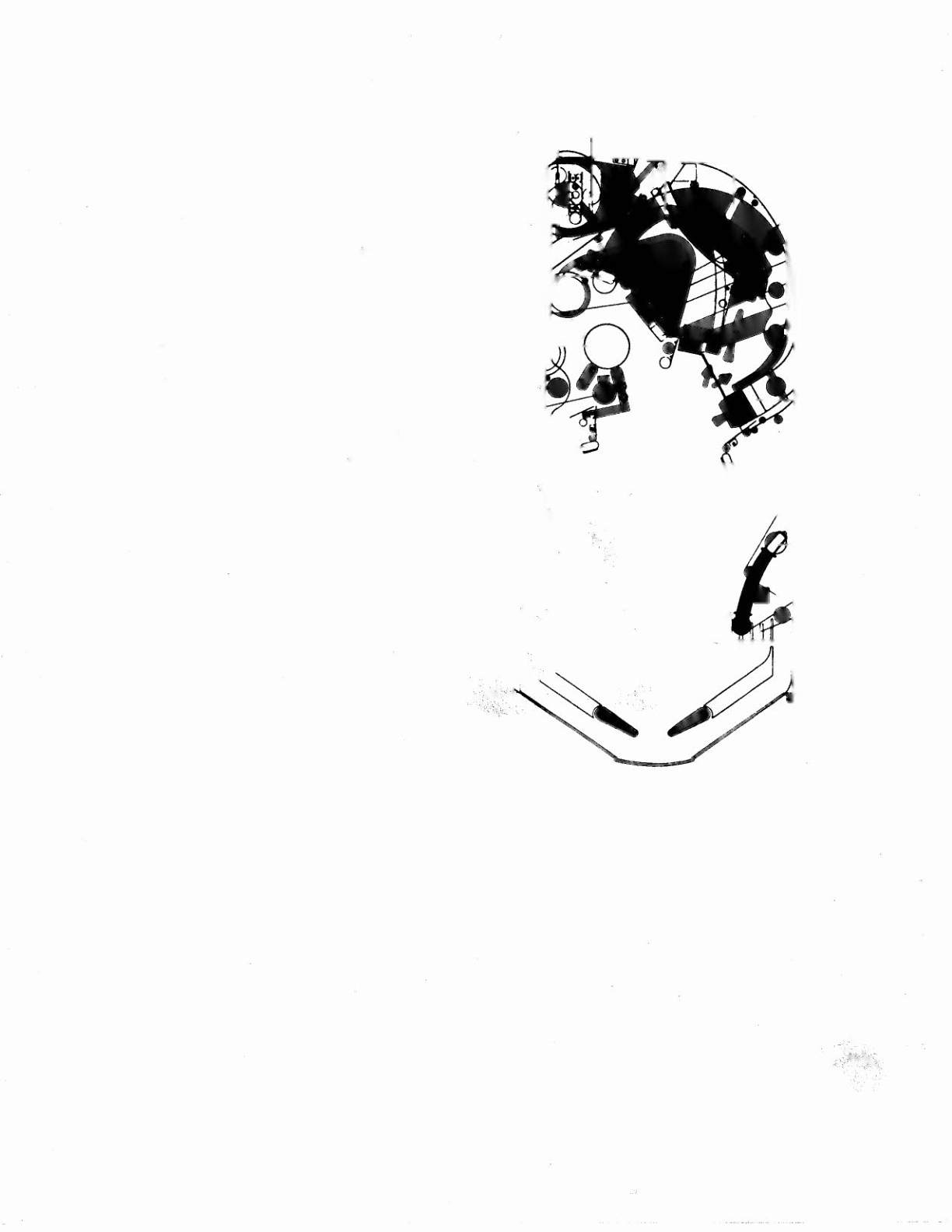

Item Part No.
Switches
Description
1
2 Not Used
3 SW-1A-126
Credit Button
4 27-1092
R Coin Chute (USA)
5 Not Used (USA) . Center Coin Chute
6 27-1092
L Coin Chute (USA)
7 27-1066
Slam lilt
8 27-1008
High Score Reset*
9 B-8306-1
Playfleld Tilt
10 5647-12133-12 Outhole
11 5647-12073-08 Ball Trough 1 (right)
12 5647-09957-00 Ball Trough 2 (left)
13 5647-09957-00 Ball Trough 3 '(left)
14 5647-12073-19 R Inner Return Lane (Zone 7)
15 5647-12073-19 R Outer Return Lane
16 5647-12073-19 Right Outlane (drain)
17 5647-12073-19 Left Outlane (drain)
18 5647-12073-19 Left Return Lane (Zone 8)
19 B-11696-1
Left Standup Tgt(Zone 1)
20 5647-12133-11 Eject Hole (Zone 5)
21 B-11696-1
Right Standup Tgt (Zone 2)
22 B-11696-1
Right Standup Tgt (Zone 3)
23 B-11696-5
Cptv Ball Standup Tgt (Zone 9)
24 B-11696-5
50K (R Wh Standup Tgt)
25 plo
C-12406 Building Height 1 **2
26 plo
C-12406 Building Height 2 **2
27 plo
C-12559 3-Bank Dr Tgt (left) **3
28 plo
C-12559 3-Bank DrTgt (mid) **3
29
plo
C-12559 3-Bank Dr Tgt(right) **3
30 B-12583-6
Center Standup Tgt (Zone 4)
31 5647-12133-08 Right Loop (Zone 6)
32 5647-12133-08 Left Loop (Zone 6)
33 5647-12073-19 On Ramp 50K
34 5647-12073-19 On Ramp 25K
35 5647-12073-19 On Ramp 100K
36 5647-12073-19 On Ramp Bypass
37 A-11658
Top Ball Popper
38 5647-12073-13 Drop Hole 1 (under p'fld)
39 5647-12073-21 Drop Hole 2 (under p'fld)
40 A-11658
Bottom Ball Popper
41 5647-12133-08 Spinner
42 5647-12073-06 Fault Open
43 5647-12073-11 Right Ramp Entry
54 B-12030-2
44 5647-12073-11 Center Ramp Entry
55
45 5647-12073-13 Center Ramp Middle
56
46 5647-12073-13 Center Ramp End
57
47 Not Used
58
48 Not Used
59 Not Used
49 Not Used
60 Not Used
50 5647-12073-04 Ball Shooter Lane
61 Not Used
51 Not Used
62 Not Used
52 B-12030-2
Left Jet Bumper
63 Not Used
53 B-12030-2
Right Jet Bumper
64 Not Used
- SW-1010-13 Left Flipper (Cabinet side)
- SW-10A-48 Right Flipper (Cabinet side)
Notes: * PINis for entireDiagnosticSwitchAssembly.includingHS ResetSwitch. ** Optotransistoron: (1) Backbox
InterconnectBd; (2) BldgPositionerBd; (3)3-DrTgt PositionerBd. *** [PairedKickerActuatingSw: A-4834-H;B-8734-1].
Plumb Bob lilt
o
Item Part No.
II
Description
Top Jet Bumper
Left Kicker**·
Right Kicker···
R Flipper Lane Change··
1
L Flipper Lane Change··
1
EARTHSHAKER 66
