A-15849-R-2

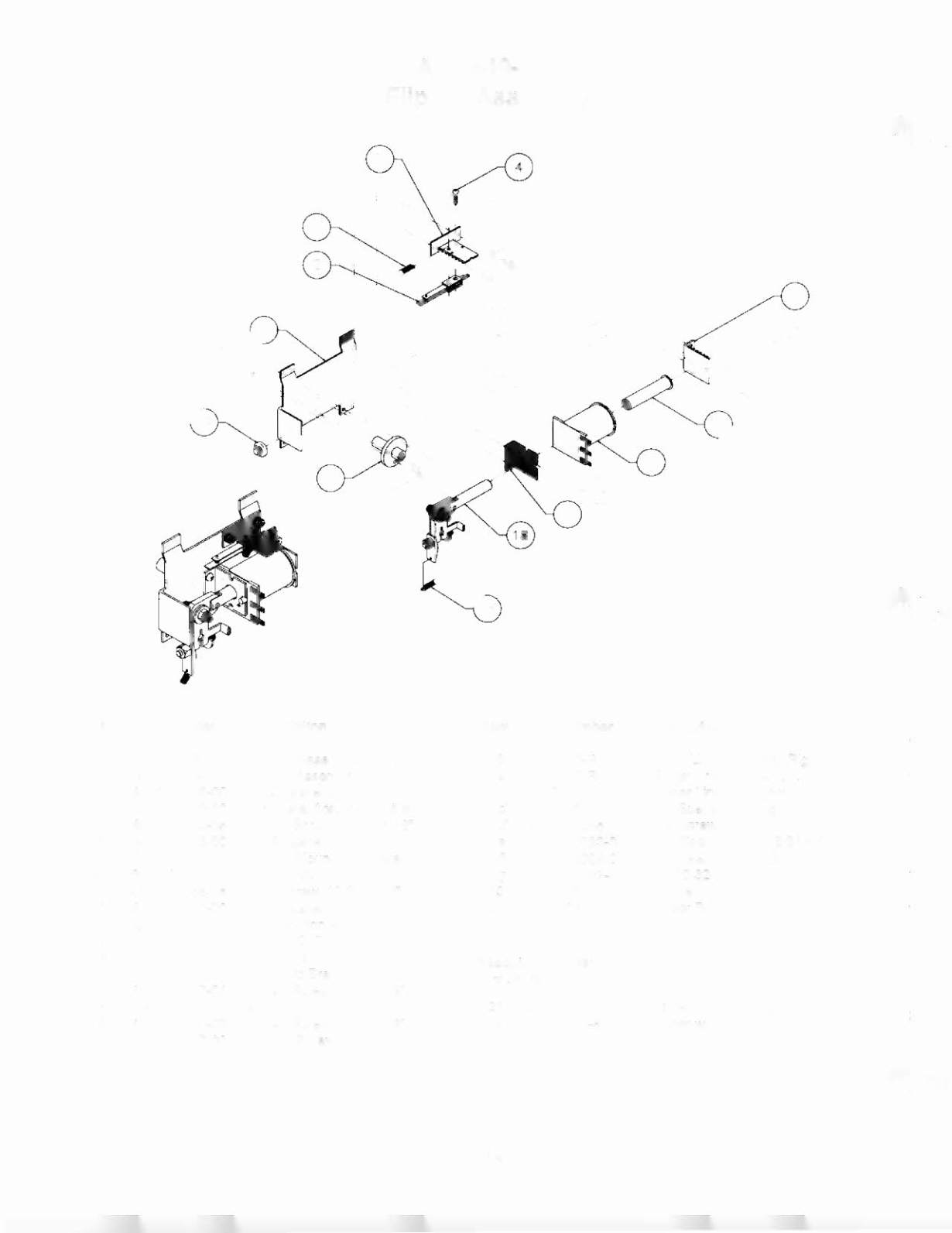

Flipper Assembly
Item Part Number
Description
Item Part Number
Description
B-13104-R
Flipper Base Assembly, Right
18 A-15848-R
Crank Link Assembly, Right
2 SW-1A-194
Switch Assembly
a) A-17050-R
Flipper Crank Assembly, Right
3 4701-00002-00
Lockwasher #6 Split
b) A-15847
Flipper Link Assembly
4 4105-01019-'
0 Sh. Metal Screw, #5 x 5/8"
c) 02-4676
Link Spacer Bushing
5 4008-01079-05
Mach. Screw, 8-32 x 5/16"
d)
4010-01086-14
Cap Screw, 10-32 x 7/8"
6 4701-00003-00
Lockwasher #8 Split
e) 4700-00023-00
Flat Washer, 5/8 x 13/64 x 16ga.
7 01-9375-1
Switch Mounting Bracket
f)
4701-00004-00
Lockwasher #10 Split
8 20-6516
Speednut, Tinnerman
g) 4410-01132-00
Nul 10-32 ESN
9 401 0-01 066-06 Cap Screw, 10-32 x 3/8"
19 23-6577
Bumper Plug, 5/8"
10 4701-00004-00
Lockwasher #10 Split
20 03-7568
Flipper Bushing
11 A-12390
Flipper Stop Assembly
12 FL-11629
Flipper Coil, Blue
a)
03-7066-5
Coil Tubing
Associated Parts:
13 01-7695
Solenoid Bracket
(Not Shown\
14 4006-01 017 -04 Mach. Screw, 6-32 x 1/4"
15 10-364
Spring
21 23-6695
Flipper Rubber Ring
16 4006-01 005-06 Mach. Screw, 6-32 x
3/8"
22 20-10110-6
Flipper w/Shaft
17 4406-01117 -00 Nut 6-32 Hex.
I
2-14
