Lower

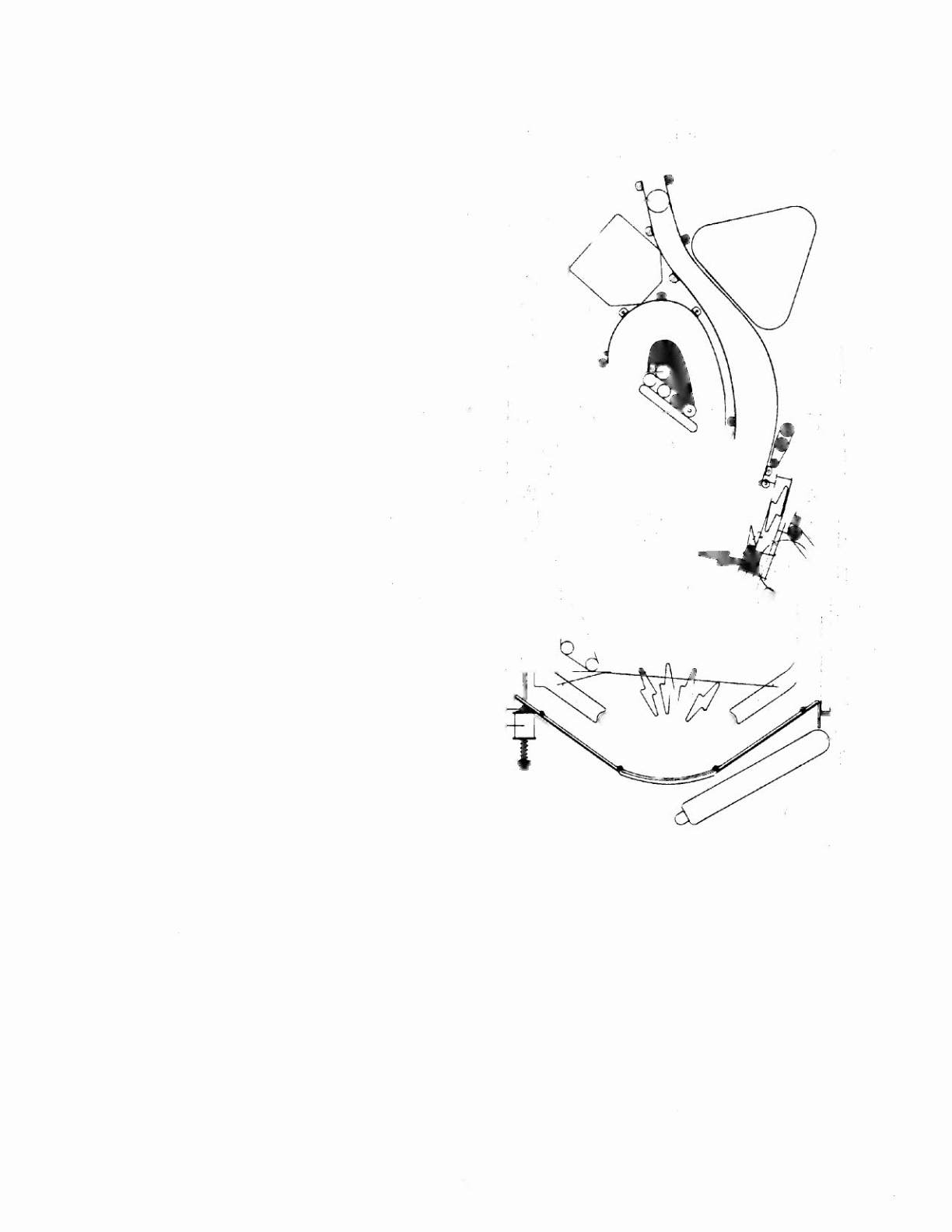

Playfield
Solenoids/Flashers
Item Part No.
Description
01A AE-23-800
Outhole Kicker
02A AE-23-800
Ball Shooter Lane Feeder
03A AE-26-1200
L 3-Bank Drop Target Reset
03C
#906/89
Flashlamps Bolt Circle Center Flashers
04A AE-26-1200
R 3-Bank Drop Target Reset
04C
#906/89
Flashlamps Flipper Lane Flashers
05A Not Used
05C
#906/89
Flashlamps R Drop Target Flashers
06A AE-23-800
Ball Popper
06C
#89/906
Flashlamps Level 1 Ramp Flasher
10 5580-09555-01
11 5580-12145-01
UPF Gen lIIumin Relay·
LPF Gen lIIumin Relay
**
13 AE-23-800
Kickback (L Outlane)
14 AE-23-800
Knocker/Ticket Dispenser (b)
15 C-12493
Magna Save™Hi Current Driver
16 5580-12145-01
Moving Targets Motor Helay"
03C
18 AE-26-1500
Left Kicker ("Sling")
20 AE-26-1500
Right Kicker ("Sling")
22 Not Used
FL 11630/50VDC Lower Left and Right Flippers
Upper Right Flipper
• - On Relay Board. C-11998-1. on Playfield underside
•• - On Relay Board. C-11902-1. on Playfield underside
Rubber Parts (Both Playfields)
Item Part No. Description
Qty
Item Part No. Description
Qty
A 23-6300 5/16" Ring
5
J
23-6313-1 Grommet
1
B 23-6301 3/4" Ring
1
K 23-6327 Ball Shooter Tip
1
C 23-6302 1" Ring
9
L 23-6519-4 Lg Red Flipper Ring 3
D 23-6303 1-1/4" Ring
1
M 23-6420 Grommet
3
E
23-6304
1-1/2"
Ring
3
N 23-6552 Sleeving. Yellow 3
F 23-6305 2" Ring
4
P 23-6556 Sleeving. Black
1
G 23-6306
2-1/2"
Ring
2
Q
23-6626 Grommet
6
H 23-6309 4" Ring
1
