Microswitch
A-!l844-4!1
A-!l844-44
Part No.
Description
B-8644
Ball Trough Switch Plate Assembly
A-5844-44
Switch Wire
&
Bracket Assembly
A-5844-45
Switch Wire
&
Bracket Assembly
A-8643
Bracket
&
Mounting Plate Assembly
5647-09957-00 uswitch: Cntr
&
L Ball Trough
4004-01060-08 Mach. Screw, 4-40 x
1/2
4005-01005-02 Mach. Screw, 5-40 x
1/8
5070-06258-00 Diode, 1N4001
5825-09372-00 Solder Lug
RM-21-03
Insulating Tubing, #10 x 1.75"
A-11680
Ball Trough Switch, Right
5647-12073-08 Submin. Switch
5070-06258-00 Diode, 1N4001
A-8645
Switch Wire
&
Bracket Assembly
5647-9957-00
Microswitch
~6!12
BRACKET
A-8645
5070-06258 -<X l
DIODE
1Wl643
MOUNTING PLATE
RM-21-03
TUBING

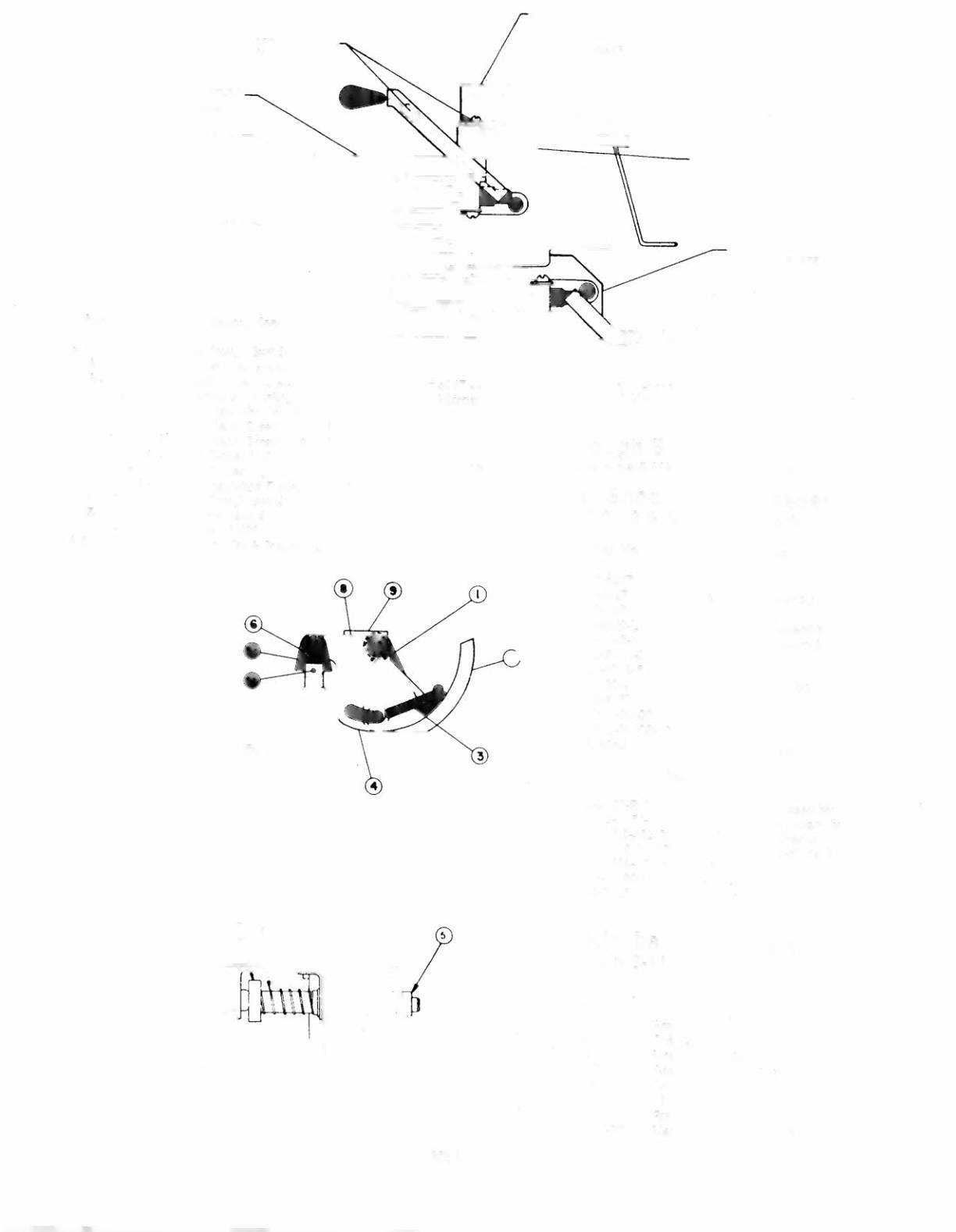

Ball Trough Switches
(viewed from underside of playfield to show parts locations)
Ball Shooter Lane Feeder
C-9638
&
Associated Parts
Item Part No.
1 12-6227
2 A-8427
3 10-362
4 A-6949-L
5 A-805O-1
a) 02-3407-2
b) 20-8716-5
c) 03-8085
6 12-6227
7 4700-00030-00
8 4700-00 103-00
9 A-8268
B-9362-R-l
B-7572-1
01-8-508-S
4006-01017-06
4406-01119-00
AE-23-8oo
03-7066
Description
Clip
Eject Cam Assembly
Ejector Spring
Spring Plale Assembly
Coil Plunger Assembly
Coil Plunger
Roll Pin
Plastic Actuator Unk
Clip
Flatwasher
Flatwasher
Mounting Bracket
ASsociatedParts
Coil
&
Bracket Assembly
Bracket
&
Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32 x 3/8
Nut, 6-32 ESN
Coil Assembly
Coil Tubing
'_
5
Outlane Kickback Assembly
pin 8-11873
Item Part No.
1 A-6306-2
2 AE-23-8oo
3 B-7409-2
4 01-8-508-T
5 03-7067-5
6 10-135
7 23-6420
8 4008-01017-05
Description
Armature Assembly
Coil Assembly
Mounting Bracket
Coil Retaining Bracket
Coil Tubing
Plunger Spring
Rubber Grommet
Mach. Screw, 8-32 x
5/16
