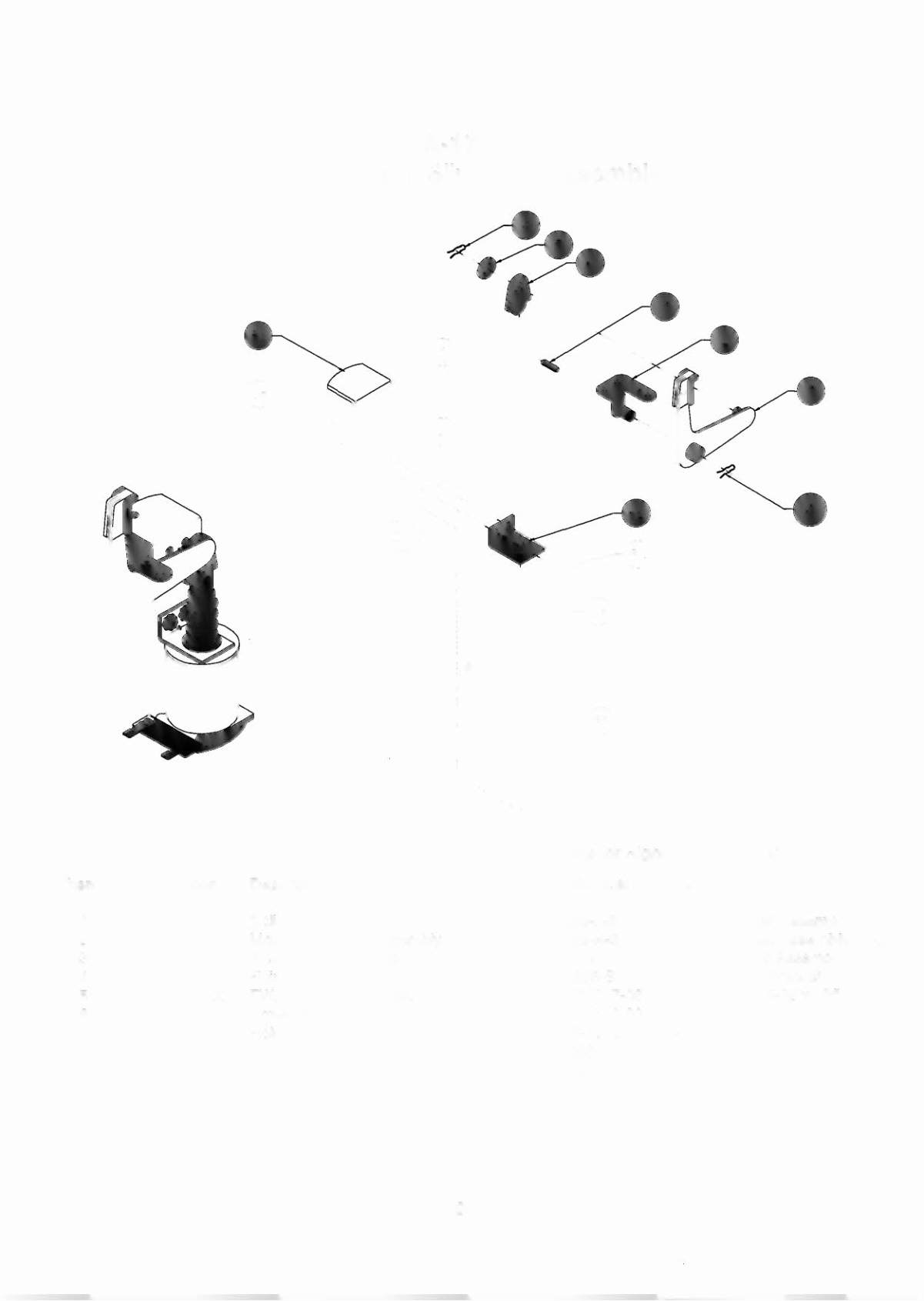

A-17811
Kicker Arm
(Slingshot)
Assembly
••••••••••••••••
1
<,
,
--
,
v-, ,
-,
Item Part Number
1 02-2364
2 A-17810
3 A-12664
4 12-6227
5 4700-00030-00
6 03-8085
7 20-8716-5
Description
Item Part Number
Associated Parts for Right
&
Left Kickers:
Description
Coil Plunger
Mounting Bracket Assembly
Kicker Crank Assembly
Hairpin Clip
FW,
17/64
x
1/2
x 15ga.
Armature Link
Roll Pin,
1/8
x
7/16"
8
B-9362-L-2
B-9362-R-3
a) A-17808
b) 01-8-508-S
c) 4006-01017-06
d) 4406-01119-00
e) AE-26-1200
f) 03-7066
9 10-128
2-18
Coil
&
Bracket Assembly, Left
Coil
&
Bracket Assembly, Right
Bracket & Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32 x
3/8"
Nut, 6-32 ESN
Coil Assembly
Coil Tubing
Spring
