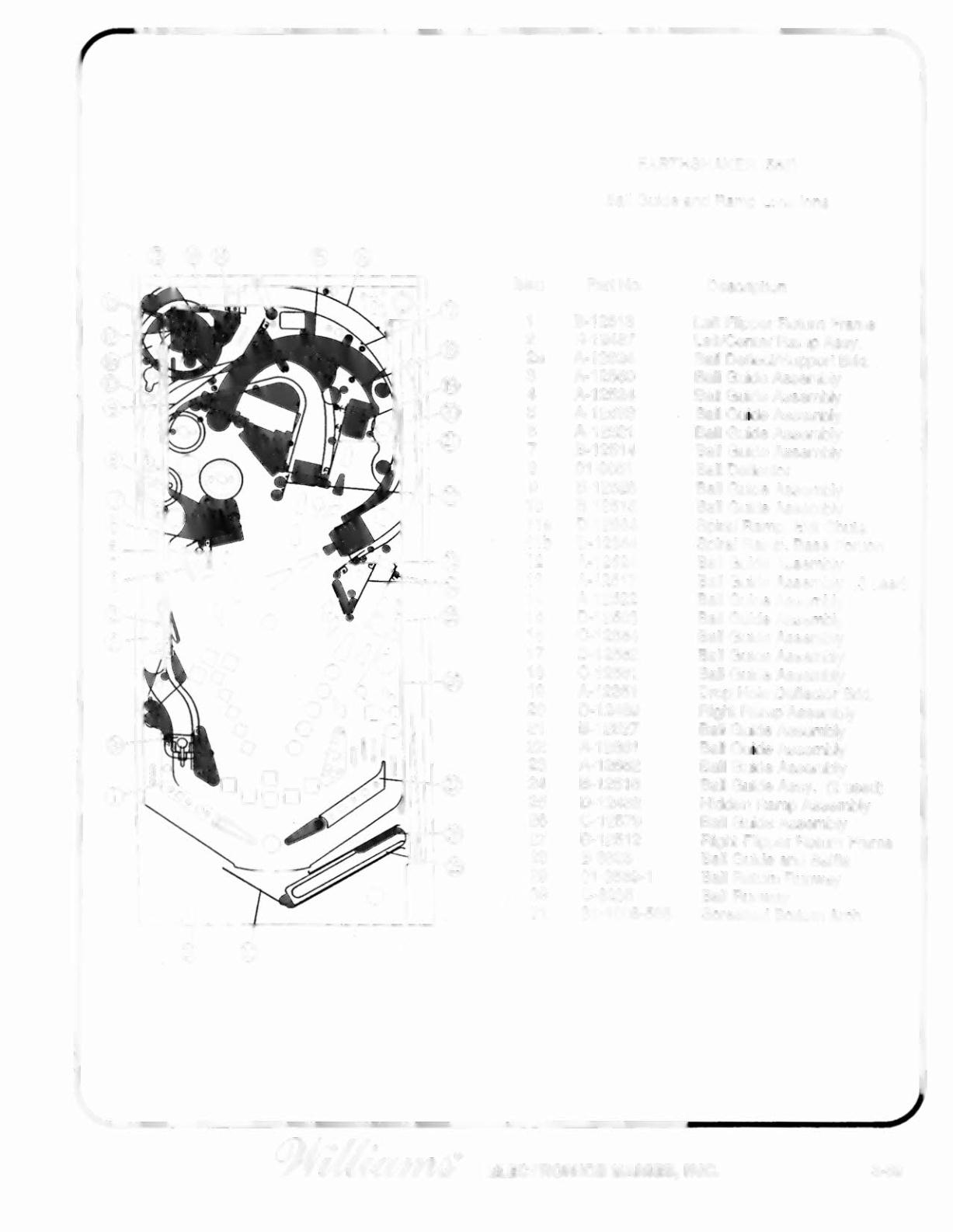

EARTHSHAKER (568)
Ball Guide and Ramp locations
Item Part No.
Description
1 8-12513
left Flipper Return Frame
2 R-12487
left/Center Ramp Assy.
2a A-12624
Ball Deflect/Support Brkt.
3 A-12560
Ball Guide Assembly
4 A-12524
Ball Guide Assembly
5 A-12523
Ball Guide Assembly
6 A-12521
Ball Guide Assembly
7 8-12514
Ball Guide Assembly
8 01-9051
Ball Deflector
9 8-12526
Ball Guide Assembly
10 B-12515
Ball Guide Assembly
11a 0-12364
Spiral Ramp, Exit Chute
11b 0-12364
Spiral Ramp, Base Portion
12 A-12524
Ball Guide Assembly
13 A-12517
Ball Guide Assembly (3 used)
14 A-12522
Ball Guide Assembly
15 D-12563
Ball Guide Assembly
16 C-12564
Ball Guide Assembly
17 0-12562
Ball Guide Assembly
18 C-12561
Ball Guide Assembly
19 A-12351
Drop Hole Deflector Brkt.
20 0-12489
Right Ramp Assembly
21 B-12527
Ball Guide Assembly
22 A-12661
Ball Guide Assembly
23 A-12662
Ball Guide Assembly
24 B-12516
Ball Guide Assy. (2 used)
25 0-12488
Hidden Ramp Assembly
26 C-12579
Ball Guide Assembly
27 8-12512
Right Flipper Return Frame
28 8-8623
Ball Guide and Baffle
29 01-3569-1
Ball Return Runway
30 C-8235
Ball Runway
31 31-1008-568 Screened Bottom Arch
ELECTRONICS GAMES. INC.
3-89
