Page 420 - BallyMidway YELLOW Parts Catalog 16-9147-B

Drop Target Assemblies ~cont'd
2
a
a
a
()
10

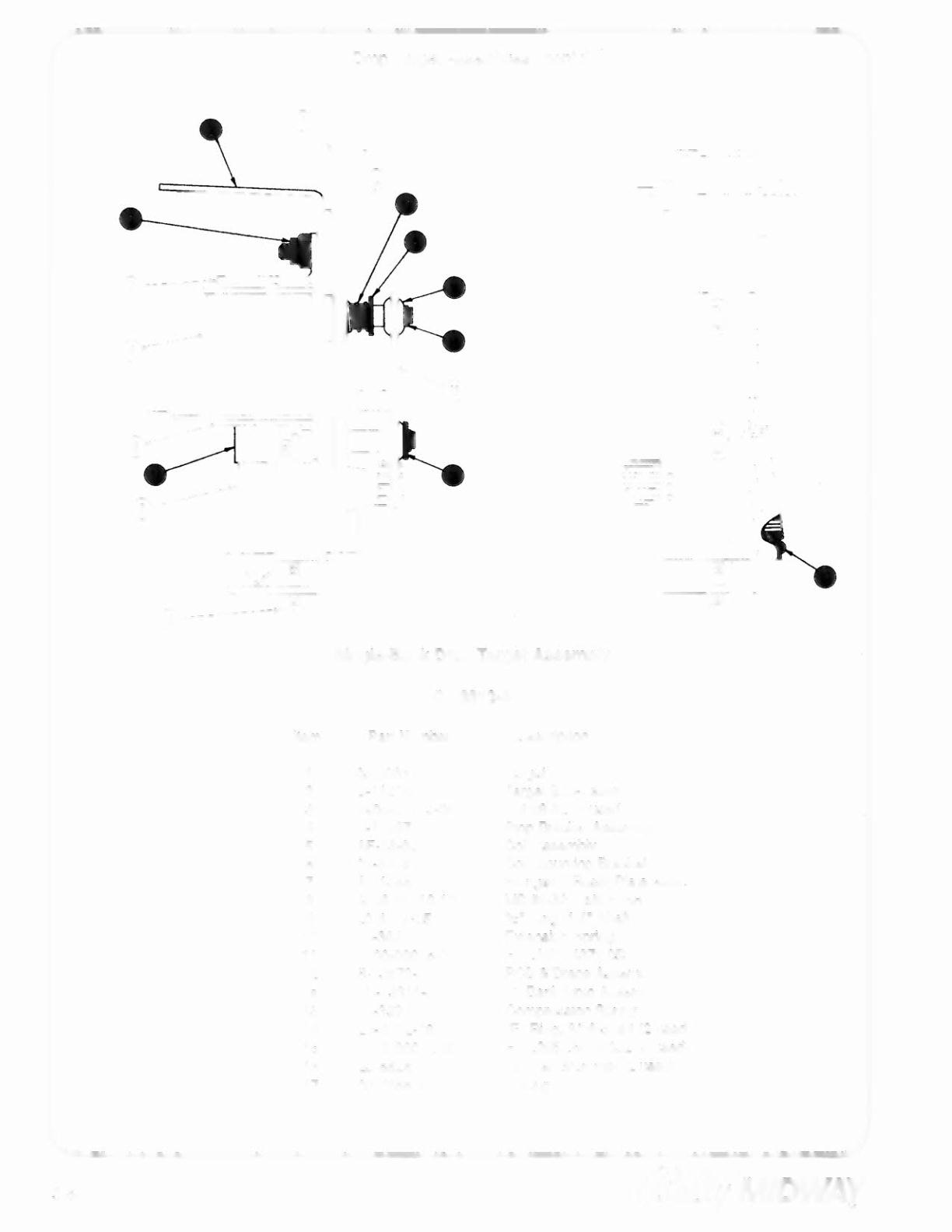

Single-Bank Drop Target Assembly
C-13312-4
Item Part Number Description
1 03~a033 Target
2 B-11213 Target Sub-Assembly
3 440a-01119-00 Nut #8-32 (4 used)
4 A-11397 Stop Bracket Assembly
5 AE-23-800 Coil Assembly
6 01-8413 Coil Mounting Bracket
7 A-11388 Plunger & Reset Plate Assy.
8 4008-01 016-10 MS #8-32 x 5/8 P·RH
9 20-8712-25 -e- Ring. 1/4" Shaft
10 10-364 Extension Spring
11 4700-00016-00 FW .187x.437x.053
12 B-13572-L PCB & Brace Assembly
a) C-1331'-L I-Bank OPIOAssembly
13 10-392 Compression Spring
14 20-8712-18 "E" Ring. 3/16 Shaft (2 used)
15 4700-00072-00 FW .265x.500x.032 (3 used)
16 23-6626 Rubber Grommet (2 used)
17 03-7066-4 Tubing
@a!fy/MIDWAY
