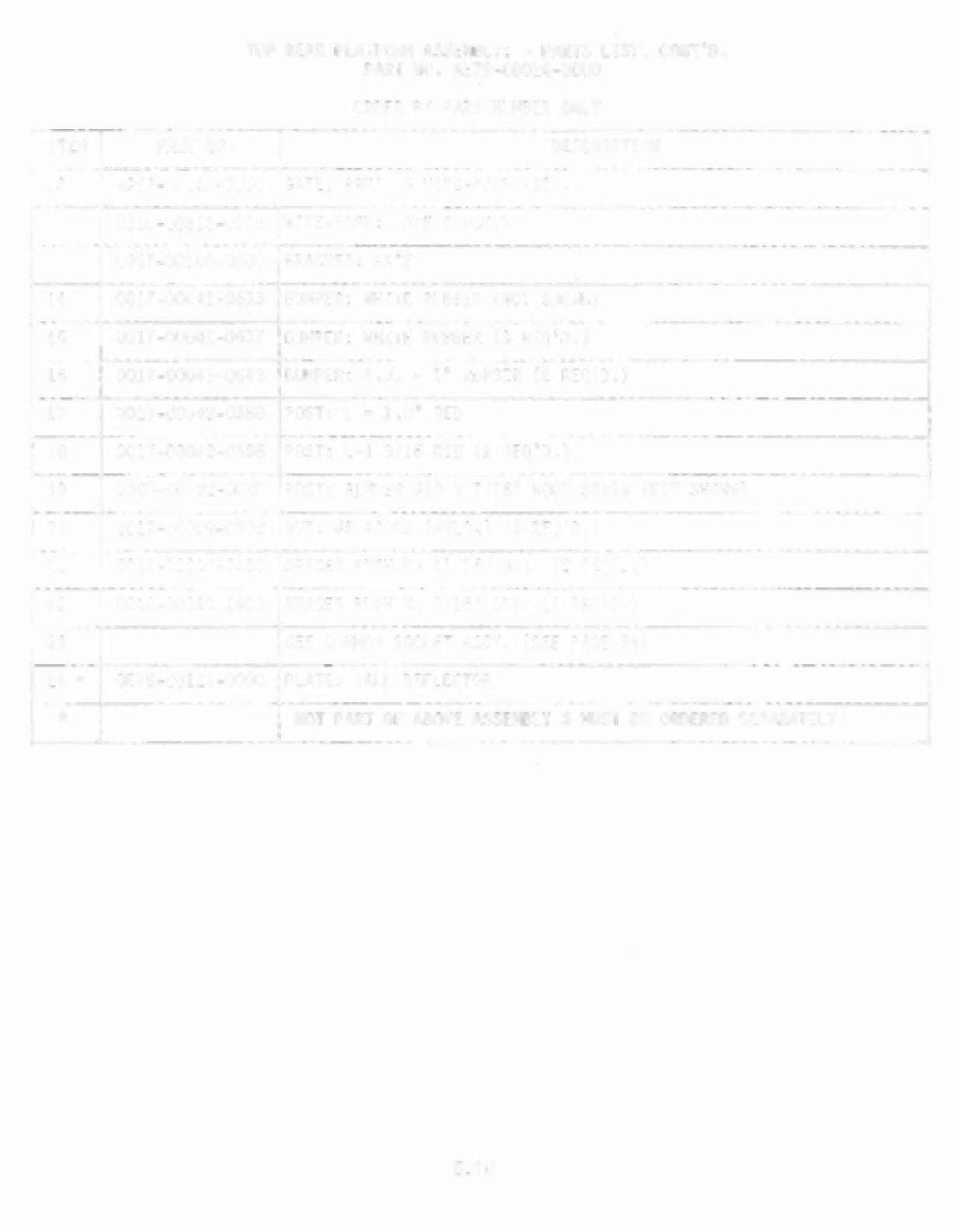

TOP REAR PLATFORM ASSEMBLY: - PARTS LIST, CONTID.PART NO. AE79-00024-0000
ORDER BY PART NUMBER ONLY
ITEM PART NO. DESCRIPTION
13 A967-00058-000 GATE, BRKT. & WIRE-FORM ASSY.
0010-00613-0000 WIRE-FORf·~: GATE BRACKET
0967-00108-0000 BRACKET: GATE
14 0017-00041-0633 BUMPER: WHITE RUBBER (NOT SHOVJN)
15 0017-00041-0637 BUMPER: WHITE RUBBER (3 REQ'D.)
16 0017-00041-0643 BUMPER: LD. = I" RUBBER (2 REQ' D. )
17 0017-00042-0588 POST: L = 1.0" RED
18 0017-00042-0596 POST: L=1-3/16 RED (9 REQ'D.)
19 0360-00732-00XF POST: BUMPER #10 X 7/16" WOOD SCREW (NOT SHOWN)
20 0017-00009-0302 NUT: #5 ACORN (NYLON) (8 REQ'O.)
21 0012-00010-0400 SPACER BUSHING 11/16" GREY (2 REO '0. )
22 0012-00010-1400 SPACER BUSHING 9/1611 GREY (2 REQ 'D.)
23 SEE COMMON SOCKET ASSY. (SEE PAGE 34)
24 * OE79-00121-0000 PLATE: BALL DEFLECTOR
* NOT PART OF ABOVE ASSEMBLY & MUST BE ORDERED SEPARATELY
5.10
