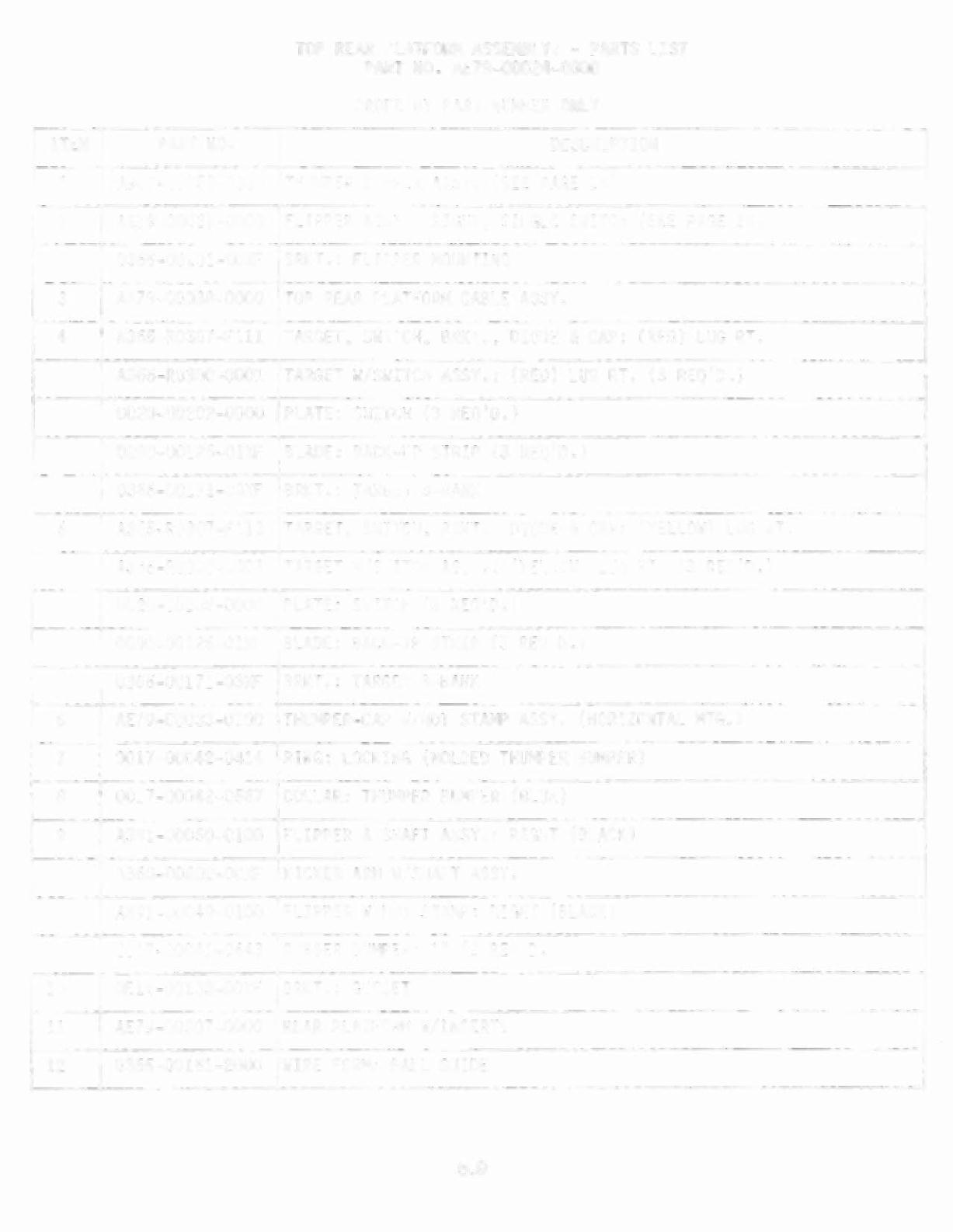

TOP REAR PLATfORM ASSEMBLY: - PARTS LISTPART NO. AE79-00024-0000
ORDER BY PART NUMBER ONLY
ITEM PART NO. DESCRIPTION
1 A967-DOO53-0100 THUMPER BUMPER ASSY. (SEE PAGE 14)
2 AE79-00037-0000 FLIPPER ASSY.: RIGHT, SINGLE SWITCH (SEE PAGE 26)
0365-00101-00XF BRKT.: FLIPPER MOUNTING
3 AE79-00038-0000 TOP REAR PLATFORM CABLE ASSY.
4 A365-R0307 -F 111 TARGET, SWITCH, BRKT., DIODE & CAP: (RED) LUG RT.
A365-R0300-00 1 TARGET W/SWITCH ASSY.: (RED) LUG RT. (3 REQ'D.)
0020-00202-0000 PLATE: SWITCH (3 REQ'D.)
0090-00126-01XF BLADE: BACK-UP STRIP (3 REQ'D.)
0365-00171-03XF BRKT .: TARGET 3-BANK
5 A365-R0307-Fl13 TARGET, SWITCH, RRKT., DIODE & CAP: (YELLO~/) LUG RT.
A365-R0300-0003 TARGET W/SWITCH ASSY.: (YELLmn LUG RT. (3 REQ'D.)
0020-00202-0000 PLATE: SWITCH (3 REQ'D.)
0090-00126-01XF BLADE: BACK-UP STRIP (3 REQ'D.)
0365-00171-03XF BRKT. : TARGET 3-BANK
6 AE79-00033-0100 THUMPER-CAP W/HOT STAMP ASSY. (HORIZONTAL MTG.)
7 0017-0042-0414 RING: LOCKING (MOLDED THUMPER BUMPER)
8 0017-00042-0567 COLLAR: THUMPER BUMPER (BLUE)
9 A391-00050-0100 FLIPPER & SHAFT ASSY.: RIGHT (BLACK)
A360-00602-00XF KICKER ARM W/SHAFT ASSY.
A391-00049-0100 FLIPPER W/HOT STAMP: RIGHT (BLACK)
0017-00041-0643 RUBBER BUMPER: 1" (2 REQ' 0 .)
10 OE14-00103- 0XF BRKT.: GUSSET
11 AE79-00507- 000 REAR PLATFORM W/INSERTS
12 0365-00151-2000 WIRE FORM; BALL GUIDE
5.9
