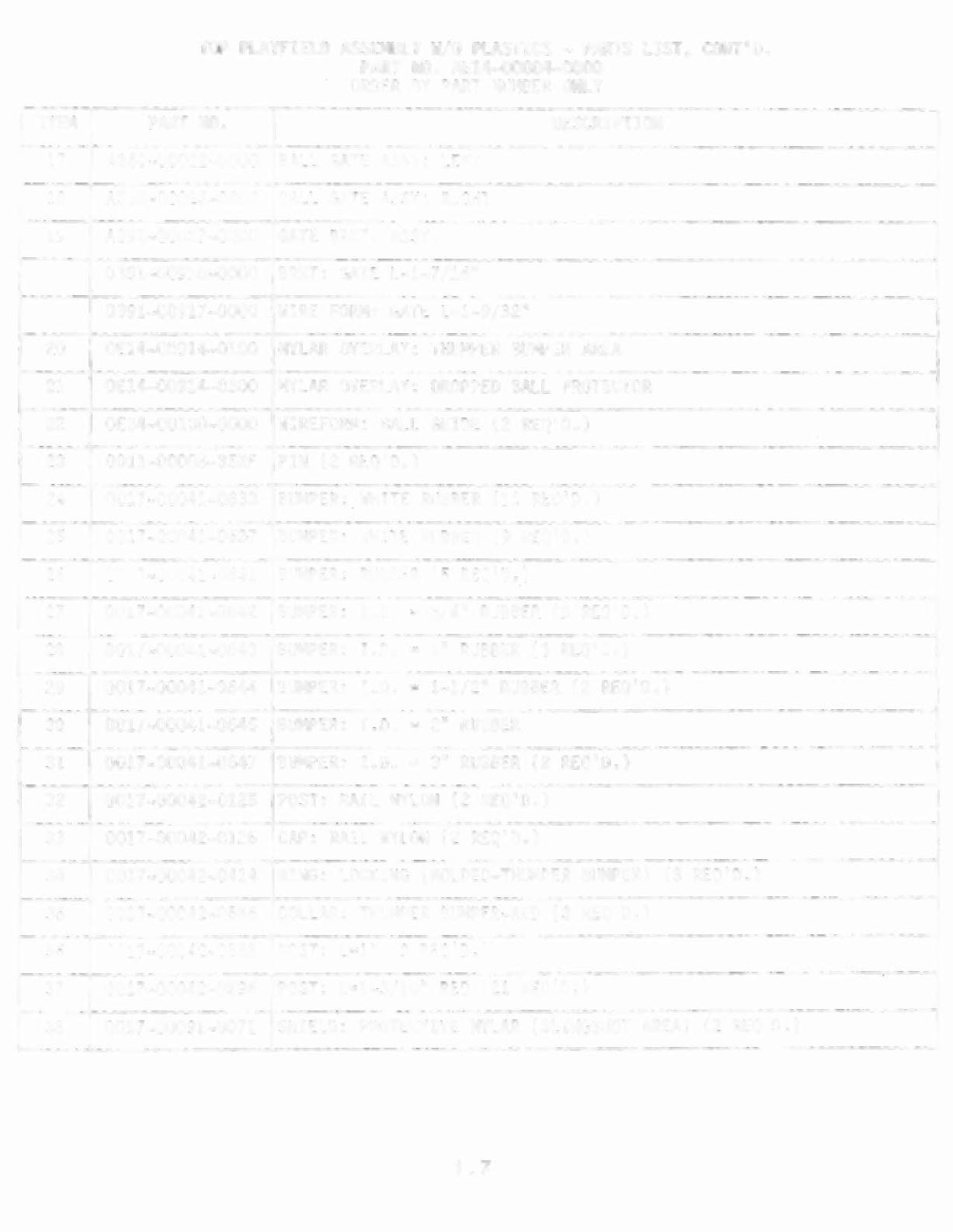

TOP PLAYFIELD ASSEMBLY M/O PLASTICS - PARTS lIST. CONT'D.
PART NO. AE14-00004-0000
ORDER BY PART NUt~BER ONLY
ITEM PART NO. DESCRIPTION
-
17 A360-00022-0000 BALL GATE ASSY: LEFT
18 A360-00023-0000 BALL GATE ASSY: RIGHT
19 A391-00027-0000 GATE BRKT. ASSY.
0391-00916-0000 BRKT: GATE L=1-7/16"
0391-00917-0000 WIRE FORM: GATE L=I-9/32"
20 OEI4-00914-0100 MYLAR OVERLAY: THUMPER BUMPER AREA
21 OEI4-00914-0300 MYLAR OVERLAY: DROPPED BALL PROTECTOR
22 OE34-00100-0000 WIREFORM: BALL GUIIJE (2 REQ'D.)
23 001l-00008-35XF PIN (2 REQ'D.)-
24 0017-00041-0633 BUMPER: WHITE RUBBER (11 REQ'D. )
25 0017 -00041-063-7 BUMPER: WHITE RUBBER (9 REQ'D.)
26 0017-00041-0641 BUf4PER: RUBBER (5 REQ I O. ) --
27 0017-00041-0642 BUMPER: 1.0. = 3/4'1 RUBBER (2 REQ'D. )
28 0017-00041-0643 BUt,1PER: 1.0. = 1" RUBBER (3 REQ'D.)
29 0017-00041-0644 BUMPER: 1.0. = 1-1/2" RUBBER (2 REQ'O.)
30 0017-00041-0645 BUMPER: 1.0. = 2" RUBBER
31 0017-00041-0647 BUMPER: 1.0. = 311 RUBBER (2 REQ 10.)
32 0017-00042-0125 POST: RAIL NYLON (2 REQ1D.) . -
33 0017-00042-0126 CAP: RAIL NYLON (2 REQ'D.) -
34 0017-00042-0414 RING: LOCKING (MOLDED-THUMPER BUMPER) (3 REQ 10.)
35 0017-00042-0566 COLLAR: THUMPER BUMPER-REO (3 REQ '0.)
36 0017-00042-0588 POST: L=I" (9 REQID.)
37 0017-00042-0596 POST: L=I-3/16" RED (21 REQ 10.)
38 0017-00091-0071 SHIELD: PROTECTIVE MYLAR (SLINGSHOT AREA) (2 REQ'D.)
1 .7
