Page 39 - 1987_COMMON_PARTS_ASPIRE

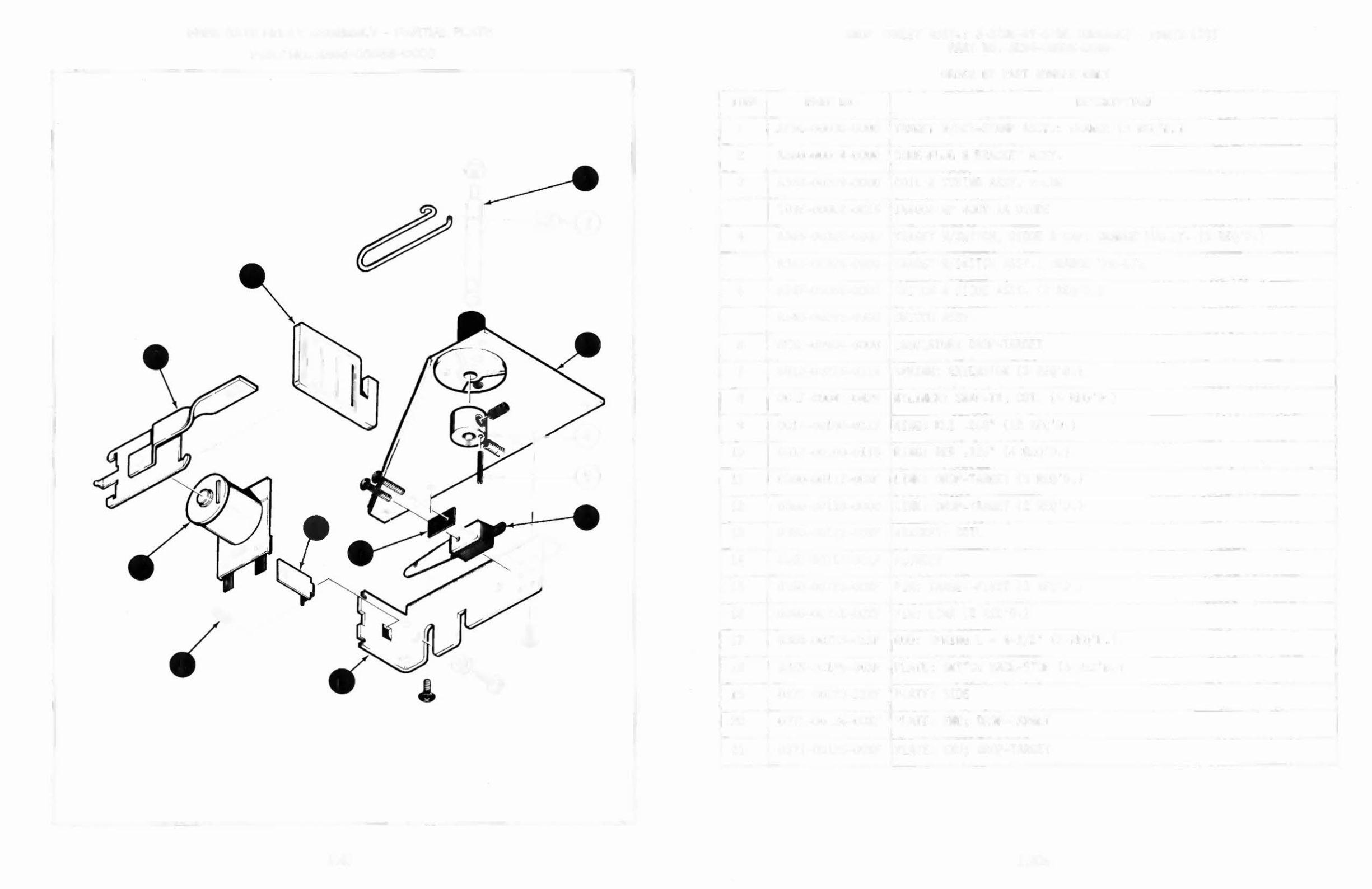

FREE GATE RELAY ASSEMBLY - PARTIAL PLATE
PART NO. A365-00083-0000
1.43
DROP TARGET ASSY.: 3-SIDE-BY-SIDE (ORANGE) - PARTS LISTPART NO. AE94-00035-0000
ORDER BY PART NUMBER ONLY
ITEM PART NO. DESCRIPTION
1 AE94-00030-00GO .TARGET W/HOT -STAMP ASSY.: ORf.lNGE(3 REQ ',0.)
2 A360-00014-0000 CORE-PLUG & BRACKET ASSY.
I
3 A360-00209-0000 COIL & TUBING ASSY. 2-LUG
103E-00002-0015 IN4004 GP 400V lA DIODE
4 A365-00325-0000 TARGET W/SWITCH, DIODE & CAP: ORANGE LUG-LT. (3 REQ '0.)
A365-00324-0000 TARGET WjSWITCH ASSY.: ORANGE LUG-LT.
5 A967-00066-0000 SWITCH & DIODE ASSY. (3 REQ '0.)
A360-00062-0000 ,SWITCH ASSY.
6 OE52-00904-0000 INSULATOR: DROP-TARGET
7 0010-00275-0314 SPRING: EXTENSION (3 REQ'D.) I
8 0017-00042-0429 NYLINER: SNAP-IN; COIL (4 REQ'D.)
9 0017-00100-0117 IRING: KU .250" (12REQ'O.)
10 00l7-00l00-0U8 RING: RER .125" (4 REQ'D.)
11 0360-00117-00XF LINK: DROP-TARGET (3 REQ'D.)
12 0360-00118-0000 LINK: DROP-TARGET (2 REQ'D.)
13 0360-00l22-00XF BRACKET: COIL
14 0360-00717-00XF PLUNGER
15 0360-00720-00XF PIN: TARGET-PIVOT (3 REQ'O.)
16 0360-0072l-00XF PIN: LINK (2 REQ'D.)
17 0360-00723-01XF ROD: SPRING L = 4-1/2" (2 REQ'D.)
18 I 0365-00189-0DXF PLATE: SWITCH BACK-STOP (3 REQ'D. )
19 0371-00123-12XF 'PLATE: SIDE
20 0371-00124-00XF PLATE: END; DROP-TARGET
21 0371-00l25-00XF PLATE: END; DROP-TARGET
1.30a
