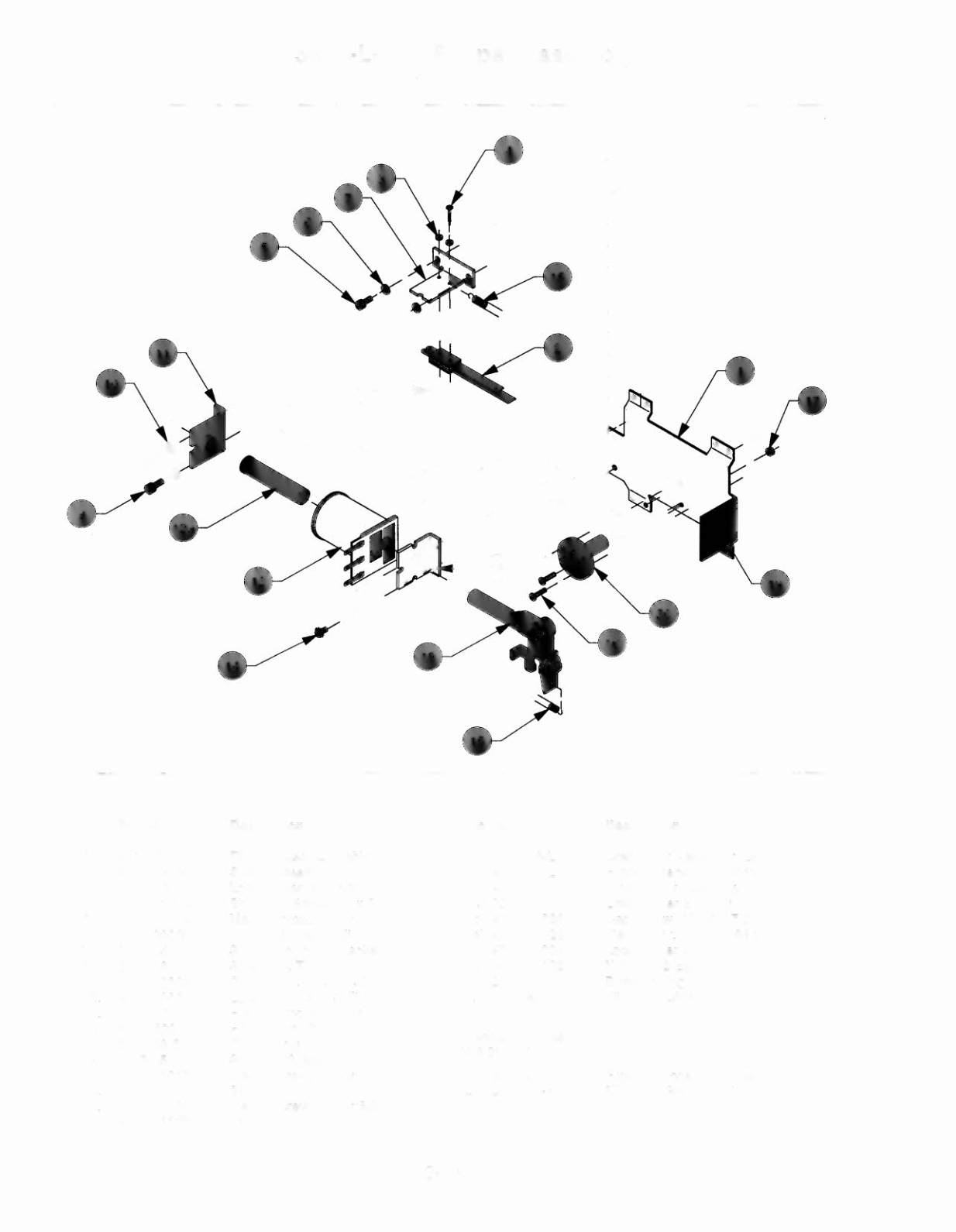

A-15849-L-2 Flipper Assembly
Item Part No.
Description
Item Part No.
Description
1.
B-13104-l
Flipper Base Assembly, left
18. A-15848-l
Crank
link
Assembly, left
2.
SW-1A-194
Switch Assembly
a) A-17050-l
Flipper Crank Assembly, left
3.
4701-00002-00 lockwasher, #6 Split
b) A-15847
Flipper link Assembly
4.
41 05-01 0 19-10 Sh. Metal Screw, #5 x 5/8"
c) 02-4676
link Spacer Bushing
5.
4008-01079-05 Mach. Screw, 8-32 x 5/16"
d) 4010-01086-14 Cap Screw, 10-32 x 7/8"
6.
4701-00003-00 lockwasher #8 Split
e) 4700-00023-00 Flatwasher, 5/8 x 13/64 x 16ga.
7.
01-9375
Switch Mounting Bracket
f) 4701-00004-00 lockwasher #10 Split
8.
20-6516
Speednut, Tinnerman
g) 4410-01132-00 Nut, 10-32 ESN
9.
4010-01066-06 Cap Screw, 10-32 x 3/8"
19. 23-6577
Bumper Plug, 5/8"
10.
4701-00004-00 lockwasher #10 Split
20. 03-7568
Flipper Bushing
11.
A-12390
Flipper Stop Assembly
12.
Fl-11629
Flipper Coil, Blue
Associated Parts:
a) 03-7066-5
Coil Tubing
(Not Shown)
13.
01-7695
Solenoid Bracket
14.
4006-01017-04 Mach. Screw, 6-32 x 1/4"
21. 23-6695
Flipper Rubber Ring, Red
15.
10-364
Spring
22. 20-9250-5
Flipper & Shaft, White
16.
4006-01005-06 Mach. Screw, 6-32 x 3/8"
17.
4406-01117-00 Nut, 6-32 Hex
2-16
