A-18622

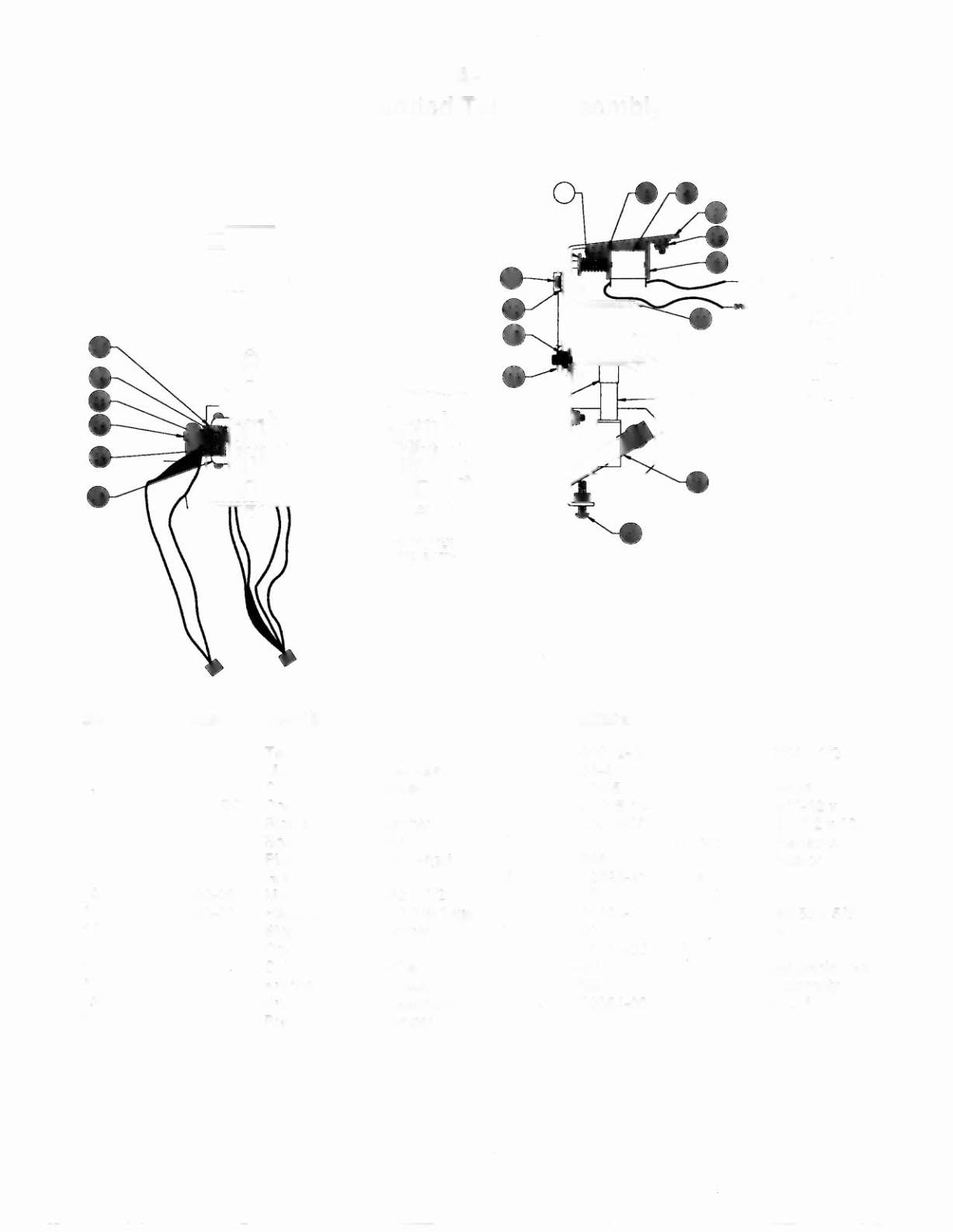

Extended Target Assembly
Item Part Number
Description
Item Part Number
Description
1 03-9210
Target Extended
17 4700-00072-00
Flatwasher,
17/64
x
112
x 21ga.
2 A-18776
Main Target Bracket Assy.
18 03-7066-4
Tubing
3 01-13048
Coil Mounting Bracket
19 20-8712-25
"E"-Ring,
1/4"
Shaft
4 SM-30-1100-DC Coil Assembly
20 4010-01025-14
Mach. Screw, #10-32 x
7/8"
5 A-18745
Stop Bracket Assembly
21 4700-00079-00
Flatwasher,
1/4
x
1/2
x 16ga.
6 10-483
Spring Compression
22 10-495
Spring Target Retractor
7 A-19686
Plunger - Extended Target
23 01-13646
Plate Guide Actuator
8 03-9209
Guide Extruded
24 5647-12693-31
Switch
9 4008-01003-08
Mach. Screw, #8-32 x
1/2"
25 01-8240
Nut Plate
10 4700-00089-00
Flatwasher,
11/64x7/16x16ga.
26 4002-01105-10
Mach. Screw, #2-56 x
5/8"
11 A-18746
Stop Bracket Assembly
27 01-8600
Switch Insulator
12 AL-23-800
Coil Assembly
28 4408-01119-00
Nut, #8-32 ESNA
13 01-13050
Coil Mounting Bracket
29 H-19692
Extended Target Cable Assy.
14 A-18752
Bracket
&
Plunger Assy.
30 H-19739
Switch Cable Assembly
15 A-18778
Bracket-Bushing Assembly
31 5070-09054-00
Diode 1N4004 1.OA
16 A-18777
Bracket Pivot Assembly
2-23
